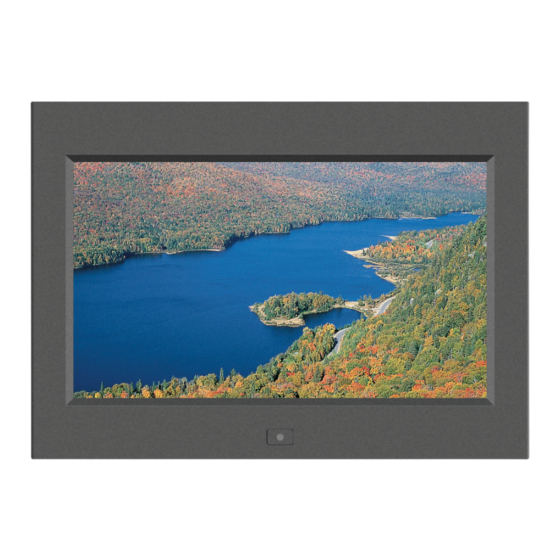

- Page 1 LCD display solutions User Manual 13” 4K 3480 x 2160@60Hz LCD AP-K13 Aluminum front bezel NAP-K13 Front NEMA4 / IP65 DP-K13 Aluminum front cover OP-K13 Universal open frame Designed and manufactured by Austin Hughes UM-UV-621-K13-Q121V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-K13 / NAP-K13 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-K13 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > OP-K13 Package Content Structure Diagram &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > AP-K13 / NAP-K13 < 1.1 > Package Content 13” 4K LCD Display AP-K13 / NAP-K13 13” 4K LCD display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 2 pcs - M4* 6mm screw x 4 pcs - M4* 50mm screw x 4 pcs...
- Page 6 < 1.2 > Structure Diagram Front view Side View AP-K13 NAP-K13 Bottom view Rear case LCD panel Rear view 3mm protective glass ( NEMA 4 / IP65 front protection for NAP series ) 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension...
-
Page 7: Ap-K13 / Nap-K13
< 1.2 > Dimension 13” 4K LCD Display Front View Side View AP-K13 NAP-K13 UNIT : mm 1mm = 0.03937 inch Rear View M4*4 pc s M4*4 pc s Bottom View UM-UV-621-K13-Q121V1 www.austin-hughes.com... - Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 4 pcs x 4 pcs x 2 pcs Hardware set part no. UV-BK#2 Steps ■ Install 2 mounting brackets with 4 x M4*6mm screws ■...
-
Page 9: Package Content
< Part 2 > DP-K13 13” 4K LCD Display < 2.1 > Package Content DP-K13 23” 4K LCD display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 2.0 HDMI 1.4 UM-UV-621-K13-Q121V1 www.austin-hughes.com... -
Page 10: Structure Diagram & Dimension
< 2.2 > Structure Diagram Front view Side View DP-K13 Bottom view Rear view Rear case LCD panel Front cover Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 332.4 x 50.2 x 231.7 mm... -
Page 11: Part. 2 > Dp-K13
< 2.2 > Dimension 13” 4K LCD Display Front View Side View DP-K13 Rear View UNIT : mm 1mm = 0.03937 inch M4*4 pc s Bottom View UM-UV-621-K13-Q121V1 www.austin-hughes.com... - Page 12 < 2.3 > VESA Installation VESA mount ( 100*100mm ) ■ Hardware and M6*4 pcs for VESA mount are not provided UM-UV-621-K13-Q121V1 www.austin-hughes.com...
-
Page 13: Package Content
< Part 3 > OP-K13 < 3.1 > Package Content 13” 4K LCD Display OP-K13 23” 4K LCD Display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 2.0 HDMI 1.4 UM-UV-621-K13-Q121V1 www.austin-hughes.com... -
Page 14: Structure Diagram & Dimension
< 3.2 > Structure Diagram Front view Side View OP-K13 Bottom view Rear case LCD panel Rear view Audio speaker, pair Universal open frame mounting LCD membrane Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 355 x 50.2 x 252.3 mm... -
Page 15: Part. 3 > Op-K13
< 3.2 > Dimension 13” 4K LCD Display Front View Side View OP-K13 Rear View UNIT : mm 1mm = 0.03937 inch M4*4 pc s Bottom View UM-UV-621-K13-Q121V1 P.11 www.austin-hughes.com... - Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) Hardware and M6*4 pcs for VESA mounting are not provided UM-UV-621-K13-Q121V1 P.12 www.austin-hughes.com...
-
Page 17: Product Specifi Cations
< Part 4 > < 4.1 > Product Specifi cations 13” 4K LCD Display Mechanical Design AP-K13 NAP-K13 DP-K13 OP-K13 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm Universal mount... - Page 18 < 4.1 > Product Specifi cations Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...
-
Page 19: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 13” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 20 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 21 < 4.2 > On-screen Display Operation ( OSD ) 13” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 23 13” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
-
Page 24: Options
< Part 5 > Options < 5.1 > Option Table Options AP / NAP ✓ ✓ ✓ Remote controller ✓ ✓ ✓ SDI *** ✓ ✓ ✓ HDMI * ✓ ✓ ✓ Audio ✓ ✓ ✓ Touchscreen ✓ ✓ ✓ MCS multi-display control ✓... -
Page 25: Remote Controller ( Rc-2 )
< 5.2 > Remote Controller ( RC-2 ) 13” 4K LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds. - Page 26 < 5.3 > Options : 12G / 4K60 / SD-SDI Austin Hughes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 3840 x 2160p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 27 < 5.4 > Options : 3G / HD / SD-SDI input 13” 4K LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input...
- Page 28 < 5.5 > Options : MCS More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units.
-
Page 29: Remote Controller ( Rc-2 )
< 5.6 > Remote Controller ( RC-2 ) 13” 4K LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds. -
Page 30: Touchscreen & Driver
< 5.7 > Options : Touchscreen & driver K13" USB Touchscreen Specifi cation Model TPC-10 Multi-touch e-Resistive Technology Projected Capacitive 4-Wire Resistive Touch Point Single Input Type Finger or Capacitive Stylus Finger or Stylus Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±... - Page 31 < 5.5 > Options : Touchscreen & driver 13” 4K LCD Display TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2.
-
Page 32: Mil-Type Or Lockable Connector
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-K13-Q121V1 P.28...
