Summary of Contents for Austin Hughes UltraView AP-K32

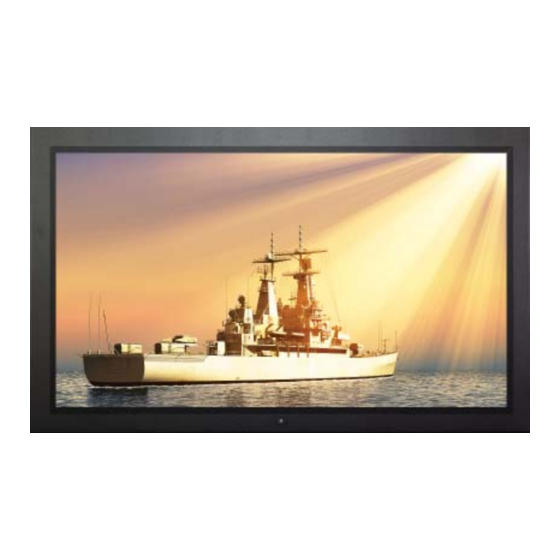

- Page 1 LCD display solutions User Manual 32” 4K 3840 x 2160 LCD AP-K32 8mm Aluminum front bezel NAP-K32 Front NEMA4 / IP65 DP-K32 Aluminum Front Panel OP-K32 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-K32-Q418V2 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-K32 / NAP-K32 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > DP-K32 Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 > OP-K32 Package Content Structure Diagram &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Ap-K32 / Nap-K32
< Part 1 > < 1.1 > Package Content - AP / NAP-K32 32” 4K LCD Display AP-K32 / NAP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Audio Power HDMI 1.4... - Page 6 < 1.2 > Structure Diagram - AP / NAP-K32 Front view Side view AP-K32 NAP-K32 Bottom view Rear case Rear view LCD panel 8mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight...
- Page 7 < 1.2 > Dimension - AP / NAP-K32 32” 4K LCD Display Front View Side View AP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q418V2 www.austin-hughes.com...
- Page 8 < 1.3 > VESA Installation - AP / NAP-K32 VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q418V2 www.austin-hughes.com...
- Page 9 < Part 2 > < 2.1 > Package Content - DP-K32 32” 4K LCD Display DP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 UM-UV-621-K32-Q418V2 www.austin-hughes.com...
- Page 10 < 2.2 > Structure Diagram - DP-K32 Front view Side view DP-K32 Bottom view Rear case Rear view LCD panel 8mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight...
-
Page 11: Part. 2 > Dp-K32
< 2.2 > Dimension - DP-K32 32” 4K LCD Display Front View Side View DP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q418V2 www.austin-hughes.com... - Page 12 < 2.3 > VESA Installation - DP-K32 M8 screw VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q418V2 www.austin-hughes.com...
-
Page 13: Package Content
< Part 3 > < 3.1 > Package Content - OP-K32 32” 4K LCD Display OP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 UM-UV-621-K32-Q418V2 www.austin-hughes.com... - Page 14 < 3.2 > Structure Diagram - OP-K32 Front view Side view OP-K32 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
-
Page 15: Part. 3 > Op-K32
< 3.2 > Dimension - OP-K32 32” 4K LCD Display Front View Side View OP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q418V2 P.11 www.austin-hughes.com... - Page 16 < 3.3 > Installation - OP-K32 ( I ) Universal mount ( II ) VESA mount ( 300*300mm ) VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q418V2 P.12 www.austin-hughes.com...
- Page 17 < Part 4 > < 4.1 > Product Specifi cations 32” 4K LCD Display AP-K32 NAP-K32 DP-K32 OP-K32 Mechanical Design Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA Mounting 300 x 300 mm 300 x 300 mm...
- Page 18 < 4.1 > Product Specifi cations Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random AP-K32 / NAP-K32 DP-K32...
-
Page 19: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 32” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 20 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 21 < 4.2 > On-screen Display Operation ( OSD ) 32” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 23 32” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
-
Page 24: Remote Controller ( Rc-2 )
< 4.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 25: Options
< Part 5 > Options 32” 4K LCD Display < 5.1 > Option Table Options AP / NAP MCS multi-screen control Touchscreen MIL-type / lockable connector DC Power UM-UV-621-K32-Q418V2 P.21 www.austin-hughes.com... - Page 26 < 5.2 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 27 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Austin Hughes provides MCS solution to control the OSD of various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 28 < 5.4 > Options : Touchscreen & driver K32" USB Touchscreen Specifi cation Model TPC-10 Multi-touch IR-10 Infrared Technology Projected Capacitive Infrared Touch Point Input Type Pen, Finger, Finger of gloved hand Finger or Capacitive Stylus activation Resolution 4096 x 4096 Touch Point Accuracy ±...
- Page 29 < 5.4 > Options : Touchscreen & driver 32” 4K LCD Display TPC-10 / TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2.
-
Page 30: Mil-Type Or Lockable Connector
< 5.6 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... - Page 31 < 6 > Ultraview K32 Family 300 cd/m Brightness 1500 cd/m Sunlight Readable Brightness 6mm aluminum front bezel 6mm aluminum front bezel AP-K32 HAP-K32 8mm aluminum front bezel 8mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-K32 NHAP-K32 Aluminum front cover...
- Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-K32-Q418V2 P.28...
