Yealink Network Technology CO., LTD

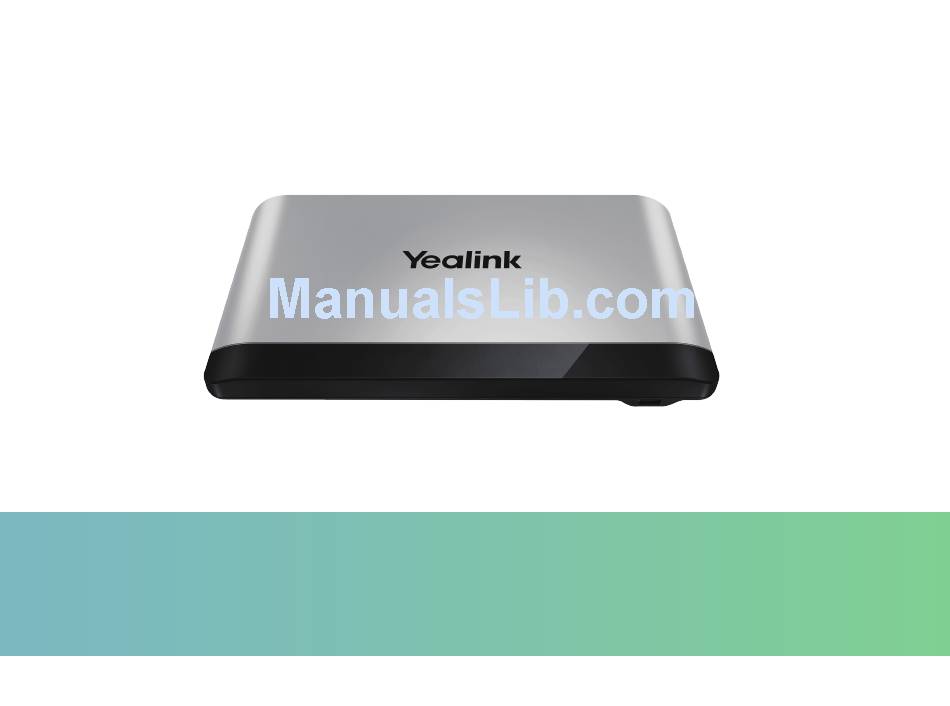

Yealink VC880 Full HD Video Conferencing System Quick Start Guide
V32.3
Applies to firmware version 63.32.0.3 or later

Advertisement

loading

Related Manuals for Yealink VC880

Summary of Contents for Yealink VC880

  • Page 1 Yealink Network Technology CO., LTD Yealink VC880 Full HD Video Conferencing System Quick Start Guide V32.3 Applies to firmware version 63.32.0.3 or later...

  • Page 2: Package Contents

    Power Adapter Quick Start Guide We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in poor performance. Before using the HDMI cable, put the magnet rings on it to prevent electromagnetic interference.
  • Page 3 1.8m RCA Cable HDMI Cable HDMI Cable Ethernet Cable The system should be used with Yealink original power adapter (48V/0.7A) only. The use of the third-party power adapter may cause the damage to the system. The cable 1.2m 1.2m 7.5m should be replaced at once if its skin is broken.

  • Page 4: Remote Control And Cable Ties Installation

    Remote Control and Cable Ties Installation Network Environment Bandwidth Requirements Video Resolution Recommended Bandwidth Full HD 1080P 1.3Mb People 1080P+Content 1080P 2.6Mb Both downlink bandwidth and uplink bandwidth should meet above requirements. The bandwidth mentioned above is based on a two-way call. Bandwidth in head office should be increased along with the growing number of connected branch offices.
  • Page 5 Cloud Deployment Cloud deployment does not need complex network settings. you only need to get account information from your system administrator, and log into video conference platform. Do the following to log into video conference platform via remote control: 1. Select More->Setting->Advanced (Default Admin Password:0000)->Video Conference Platform. 2.

  • Page 6: Configure Port Mapping

    4. Uncheck the DHCP checkbox. 5. Enter the IP address, subnet mask, gateway and DNS information in corresponding fields. 6. Save the change. The display device prompts “Reboot now?”. 7. Select to reboot the system. Configure Port Mapping If you deploye system in an Intranet, you must forward the following ports to the public network on the firewall, so that your system can receive a public-to-private call.
  • Page 7 Intranet, you have configured port mapping on the firewall gateway, but you find that local system appears black screen and you cannot hear sound when you call Yealink Demo or other systems. The most likely reason is that the firewall or gateway in your environment does not support the ALG feature.
  • Page 8 VC880- EN YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. Web: www.yealink.com Addr: 309, 3th Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China Copyright©2018YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD. All rights reserved.
