User Manual—Version 3.0
The following is a list of menu items within the Wash Settings menu option
and a brief explanation of their function.

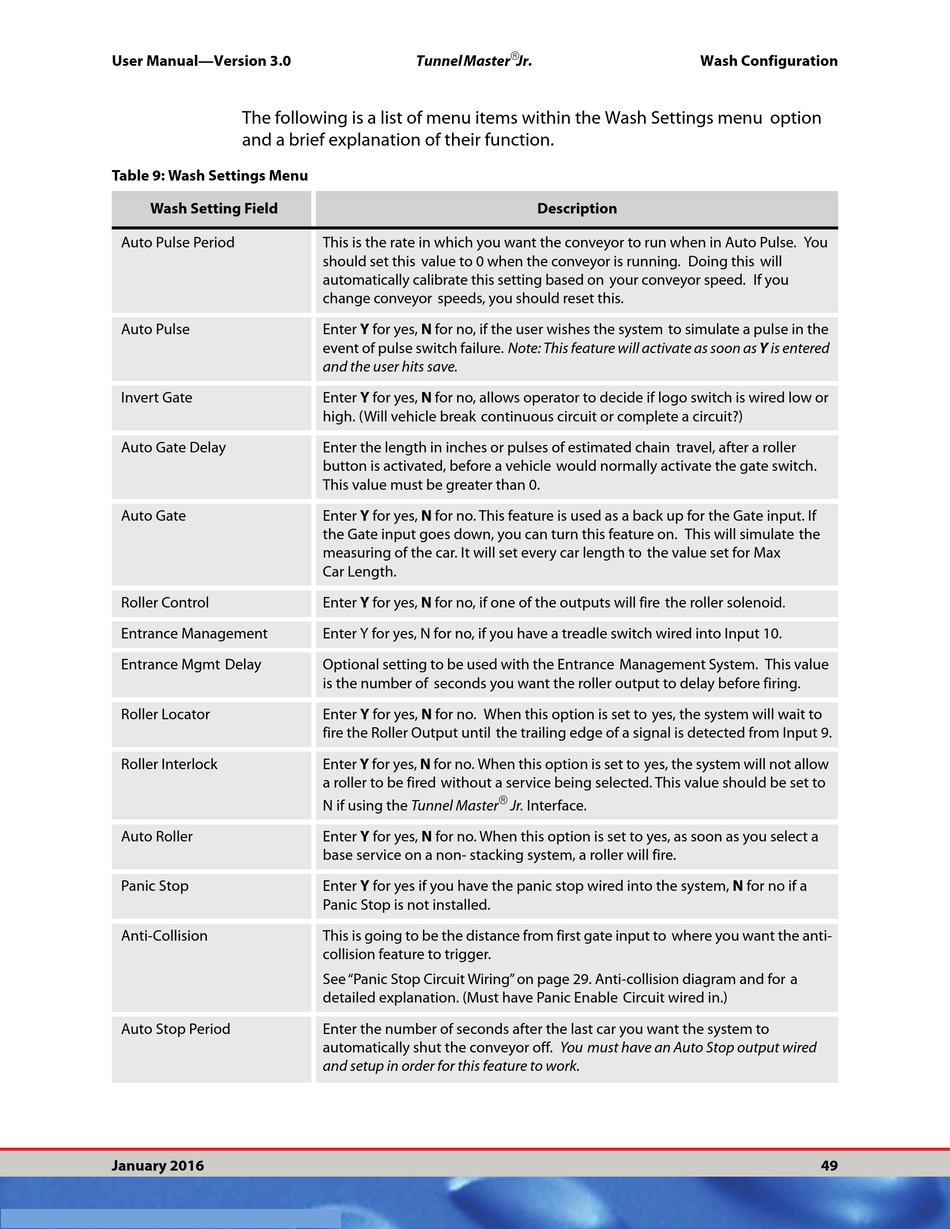

Table 9: Wash Settings Menu
Wash Setting Field
Auto Pulse Period
Auto Pulse
Invert Gate
Auto Gate Delay
Auto Gate
Roller Control
Entrance Management
Entrance Mgmt Delay
Roller Locator
Roller Interlock
Auto Roller
Panic Stop
Anti-Collision
Auto Stop Period
January 2016
Tunnel Master
This is the rate in which you want the conveyor to run when in Auto Pulse. You
should set this value to 0 when the conveyor is running. Doing this will
automatically calibrate this setting based on your conveyor speed. If you
change conveyor speeds, you should reset this.
Enter Y for yes, N for no, if the user wishes the system to simulate a pulse in the
event of pulse switch failure. Note: This feature will activate as soon as Y is entered
and the user hits save.
Enter Y for yes, N for no, allows operator to decide if logo switch is wired low or
high. (Will vehicle break continuous circuit or complete a circuit?)
Enter the length in inches or pulses of estimated chain travel, after a roller
button is activated, before a vehicle would normally activate the gate switch.
This value must be greater than 0.
Enter Y for yes, N for no. This feature is used as a back up for the Gate input. If
the Gate input goes down, you can turn this feature on. This will simulate the
measuring of the car. It will set every car length to the value set for Max
Car Length.
Enter Y for yes, N for no, if one of the outputs will fire the roller solenoid.
Enter Y for yes, N for no, if you have a treadle switch wired into Input 10.
Optional setting to be used with the Entrance Management System. This value
is the number of seconds you want the roller output to delay before firing.
Enter Y for yes, N for no. When this option is set to yes, the system will wait to
fire the Roller Output until the trailing edge of a signal is detected from Input 9.
Enter Y for yes, N for no. When this option is set to yes, the system will not allow
a roller to be fired without a service being selected. This value should be set to

N if using the Tunnel Master
Enter Y for yes, N for no. When this option is set to yes, as soon as you select a
base service on a non- stacking system, a roller will fire.
Enter Y for yes if you have the panic stop wired into the system, N for no if a
Panic Stop is not installed.
This is going to be the distance from first gate input to where you want the anti-
collision feature to trigger.
See "Panic Stop Circuit Wiring" on page 29. Anti-collision diagram and for a
detailed explanation. (Must have Panic Enable Circuit wired in.)
Enter the number of seconds after the last car you want the system to
automatically shut the conveyor off. You must have an Auto Stop output wired
and setup in order for this feature to work.

Jr.
Description
Jr. Interface.
Wash Configuration
49
