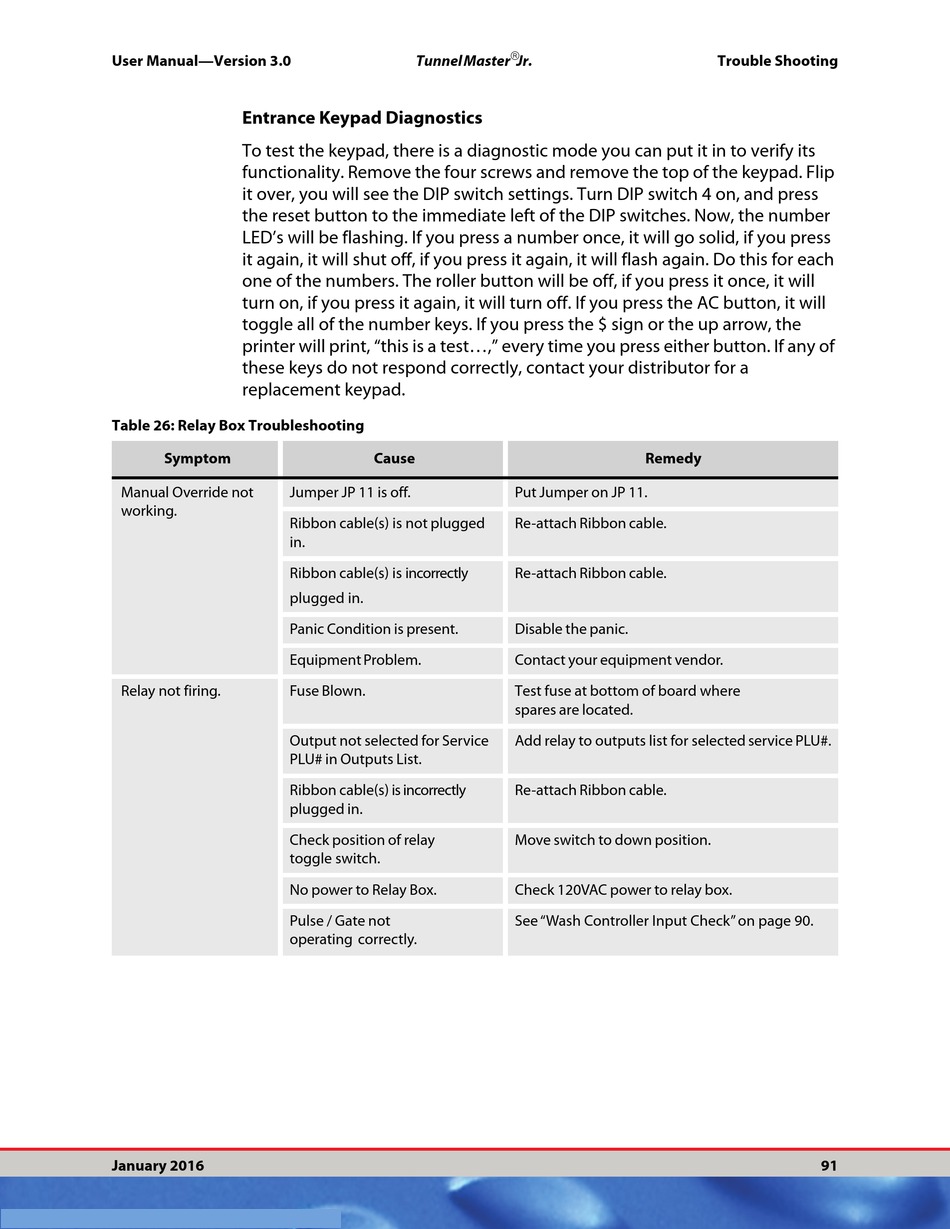

Entrance Keypad Diagnostics

To test the keypad, there is a diagnostic mode you can put it in to verify its
functionality. Remove the four screws and remove the top of the keypad. Flip
it over, you will see the DIP switch settings. Turn DIP switch 4 on, and press
the reset button to the immediate left of the DIP switches. Now, the number
LED's will be flashing. If you press a number once, it will go solid, if you press
it again, it will shut off, if you press it again, it will flash again. Do this for each
one of the numbers. The roller button will be off, if you press it once, it will
turn on, if you press it again, it will turn off. If you press the AC button, it will
toggle all of the number keys. If you press the $ sign or the up arrow, the
printer will print, "this is a test...," every time you press either button. If any of
these keys do not respond correctly, contact your distributor for a
replacement keypad.
Table 26: Relay Box Troubleshooting
Symptom
Manual Override not Jumper JP 11 is off.
working.
Ribbon cable(s) is not plugged
in.
Ribbon cable(s) is incorrectly
plugged in.
Panic Condition is present.
Equipment Problem.
Relay not firing. Fuse Blown.
Output not selected for Service
PLU# in Outputs List.
Ribbon cable(s) is incorrectly
plugged in.
Check position of relay
toggle switch.
No power to Relay Box.
Pulse / Gate not
operating correctly.
January 2016

Tunnel Master Jr.
Cause
Put Jumper on JP 11.
Re-attach Ribbon cable.
Re-attach Ribbon cable.
Disable the panic.
Contact your equipment vendor.
Test fuse at bottom of board where
spares are located.
Add relay to outputs list for selected service PLU#.
Re-attach Ribbon cable.
Move switch to down position.
Check 120VAC power to relay box.
See "Wash Controller Input Check" on page 90.
