Tire Switch Wiring; Figure 6. Tire Switch Wiring - ICS Tunnel Master Jr User Manual

System Hardware and Installation

TIRE SWITCH WIRING

!

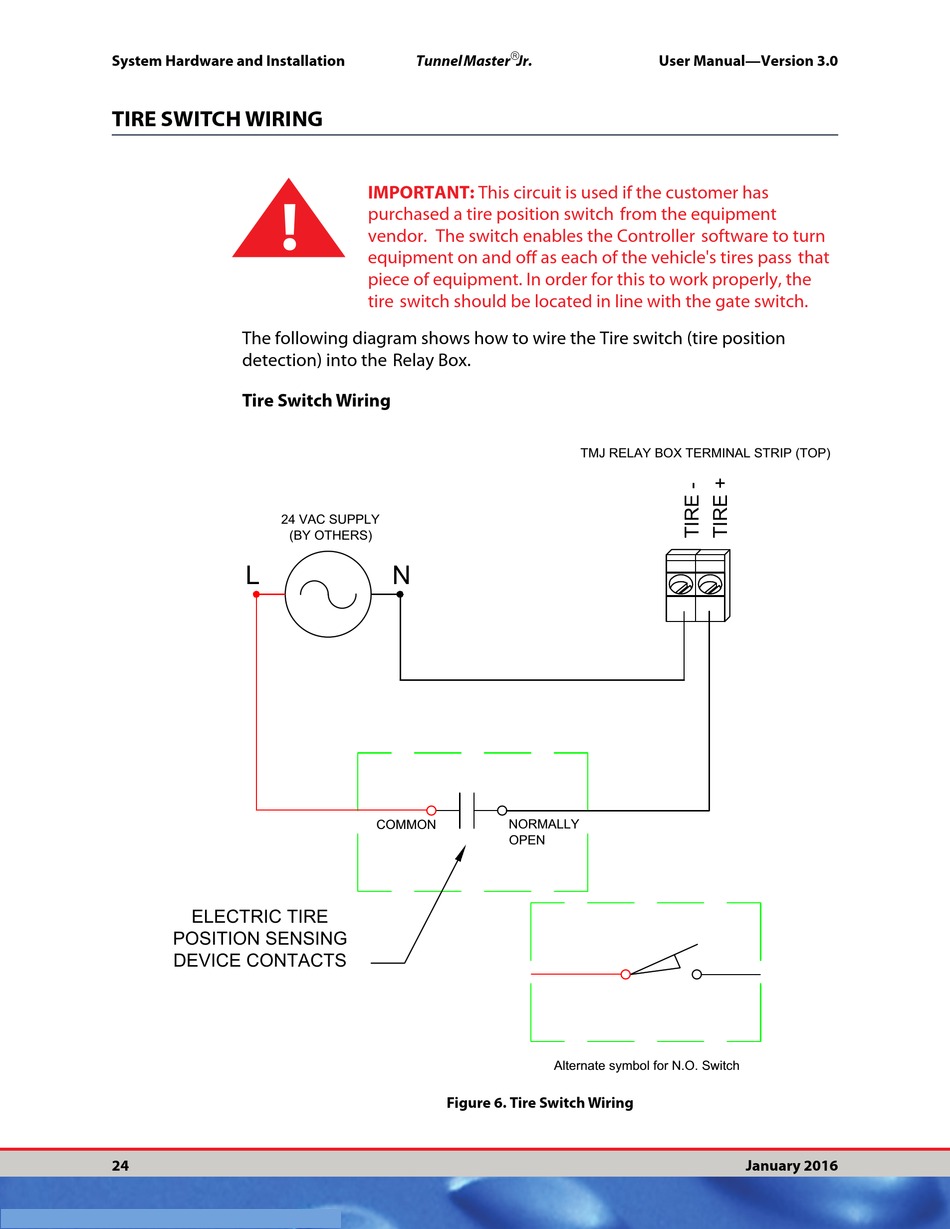

The following diagram shows how to wire the Tire switch (tire position
detection) into the Relay Box.
Tire Switch Wiring
24 VAC SUPPLY
(BY OTHERS)
L
ELECTRIC TIRE
POSITION SENSING
DEVICE CONTACTS
24

Tunnel Master Jr.
IMPORTANT: This circuit is used if the customer has
purchased a tire position switch from the equipment
vendor. The switch enables the Controller software to turn
equipment on and off as each of the vehicle's tires pass that
piece of equipment. In order for this to work properly, the
tire switch should be located in line with the gate switch.
N
NORMALLY
COMMON
OPEN

Figure 6. Tire Switch Wiring

User Manual—Version 3.0
TMJ RELAY BOX TERMINAL STRIP (TOP)
Alternate symbol for N.O. Switch
January 2016
