User Manual—Version 3.0

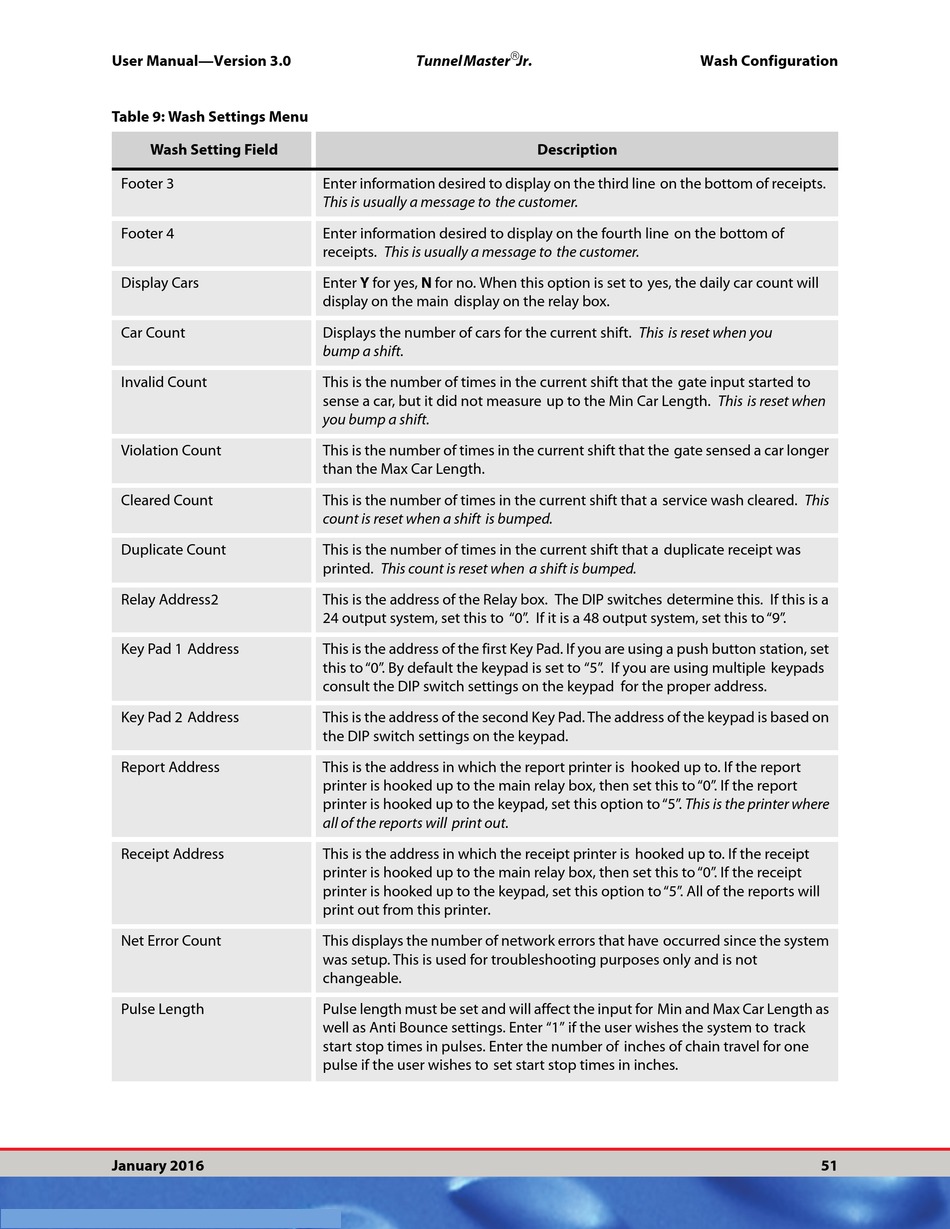

Table 9: Wash Settings Menu
Wash Setting Field
Footer 3
Footer 4
Display Cars
Car Count
Invalid Count
Violation Count
Cleared Count
Duplicate Count
Relay Address2
Key Pad 1 Address
Key Pad 2 Address
Report Address
Receipt Address
Net Error Count
Pulse Length
January 2016
Tunnel Master
Enter information desired to display on the third line on the bottom of receipts.
This is usually a message to the customer.
Enter information desired to display on the fourth line on the bottom of
receipts. This is usually a message to the customer.
Enter Y for yes, N for no. When this option is set to yes, the daily car count will
display on the main display on the relay box.
Displays the number of cars for the current shift. This is reset when you
bump a shift.
This is the number of times in the current shift that the gate input started to
sense a car, but it did not measure up to the Min Car Length. This is reset when
you bump a shift.
This is the number of times in the current shift that the gate sensed a car longer
than the Max Car Length.
This is the number of times in the current shift that a service wash cleared. This
count is reset when a shift is bumped.
This is the number of times in the current shift that a duplicate receipt was
printed. This count is reset when a shift is bumped.
This is the address of the Relay box. The DIP switches determine this. If this is a
24 output system, set this to "0". If it is a 48 output system, set this to "9".
This is the address of the first Key Pad. If you are using a push button station, set
this to "0". By default the keypad is set to "5". If you are using multiple keypads
consult the DIP switch settings on the keypad for the proper address.
This is the address of the second Key Pad. The address of the keypad is based on
the DIP switch settings on the keypad.
This is the address in which the report printer is hooked up to. If the report
printer is hooked up to the main relay box, then set this to "0". If the report
printer is hooked up to the keypad, set this option to "5". This is the printer where
all of the reports will print out.
This is the address in which the receipt printer is hooked up to. If the receipt
printer is hooked up to the main relay box, then set this to "0". If the receipt
printer is hooked up to the keypad, set this option to "5". All of the reports will
print out from this printer.
This displays the number of network errors that have occurred since the system
was setup. This is used for troubleshooting purposes only and is not
changeable.
Pulse length must be set and will affect the input for Min and Max Car Length as
well as Anti Bounce settings. Enter "1" if the user wishes the system to track
start stop times in pulses. Enter the number of inches of chain travel for one
pulse if the user wishes to set start stop times in inches.

Jr.
Description
Wash Configuration
