Von Duprin StrikeForce 6210 Installation Instructions

Electric strike, single door mortise application
Hide thumbs Also See for StrikeForce 6210:

Advertisement

Quick Links

Installation Instructions
Notes: Deadbolt will not function with this strike.
Check with factory for retrofit applications.
1. For lock or device preparation, see their directions.
2. Prepare frame for strike (see other side).
3. Wire strike (Figure 1). (Switches on 6210DS only.)
SOLENOID POWER REQUIREMENTS
Yellow solenoid wires: 12 VDC, 0.57 A
Black solenoid wires: 24 VDC, 0.29 A
(also shown on strike label)
{
NOTE
!
Wiring
for DC
DC input is
supply
nonpolarized
12 VAC
{
Wiring
or
for AC
24 VAC
supply
P1 J1A
Use crimp
connectors to
splice field wiring
to P1 leads
Insert and location
for Von Duprin
mortise locks
Insert and location
mortise locks
Insert and location
for Yale, Best, and
Sargent mortise
Figure 2
931001_00(7) Copyright © 2004 Ingersoll-Rand. All rights reserved.
®
6210/6210DS Electric Strike
Single Door Mortise Application
12 VDC
P1
or
24 VDC
J1
SO-12
12 VDC
SO-24
24 VDC
P1A
Solenoid
SO-12 or SO-24
Latch bolt
for Schlage
1/32"
faceplate not
shown for clarity
locks
Figure 3
4. Install insert for auxiliary bolt operation (Figure 2).
5. Test strike: Apply solenoid power. Fail secure (FSE) lip unlocks.
Fail safe (FS) lip locks. Figure 1 shows status of switches.
6. Install strike with two #12-24 screws. Make sure clearance
between latch bolt and strike lip is 1/32" (Figure 3). If not,
uninstall strike, adjust (Figure 4), and reinstall.
7. Test door: With strike unlocked, door opens with latch bolt
extended. When door closes, latch bolt rides over strike lip.
J2 P2
S1
S2
Fail safe (FS)
Switches shown with tripper
depressed, strike lip closed and locked
(switches and tripper on 6210DS only)
Figure 1
Strike lip
A
Top view;
Figure 4
931001-00
Use crimp connectors to
splice field wiring to P2
leads; insulate unused leads
1
1
S1
2
2
3
3
4
4
S2
5
5
6
6
J2
J2
P2
Fail secure (FSE)
SWITCH RATINGS
Standard: 5 A, 30 VDC
Gold: 0.25 A, 30 VDC
C
B
To adjust strike, loosen screws
A, B, and C and move backbox
sideways as necessary
89/336/EEC
Red (C)
}
S1
Blue
(monitors
tripper)
Yellow
White (C)
}
S2
Gray
(monitors
strike lip)
Violet

Advertisement

loading
Need help?

Need help?

Do you have a question about the StrikeForce 6210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Von Duprin StrikeForce 6210

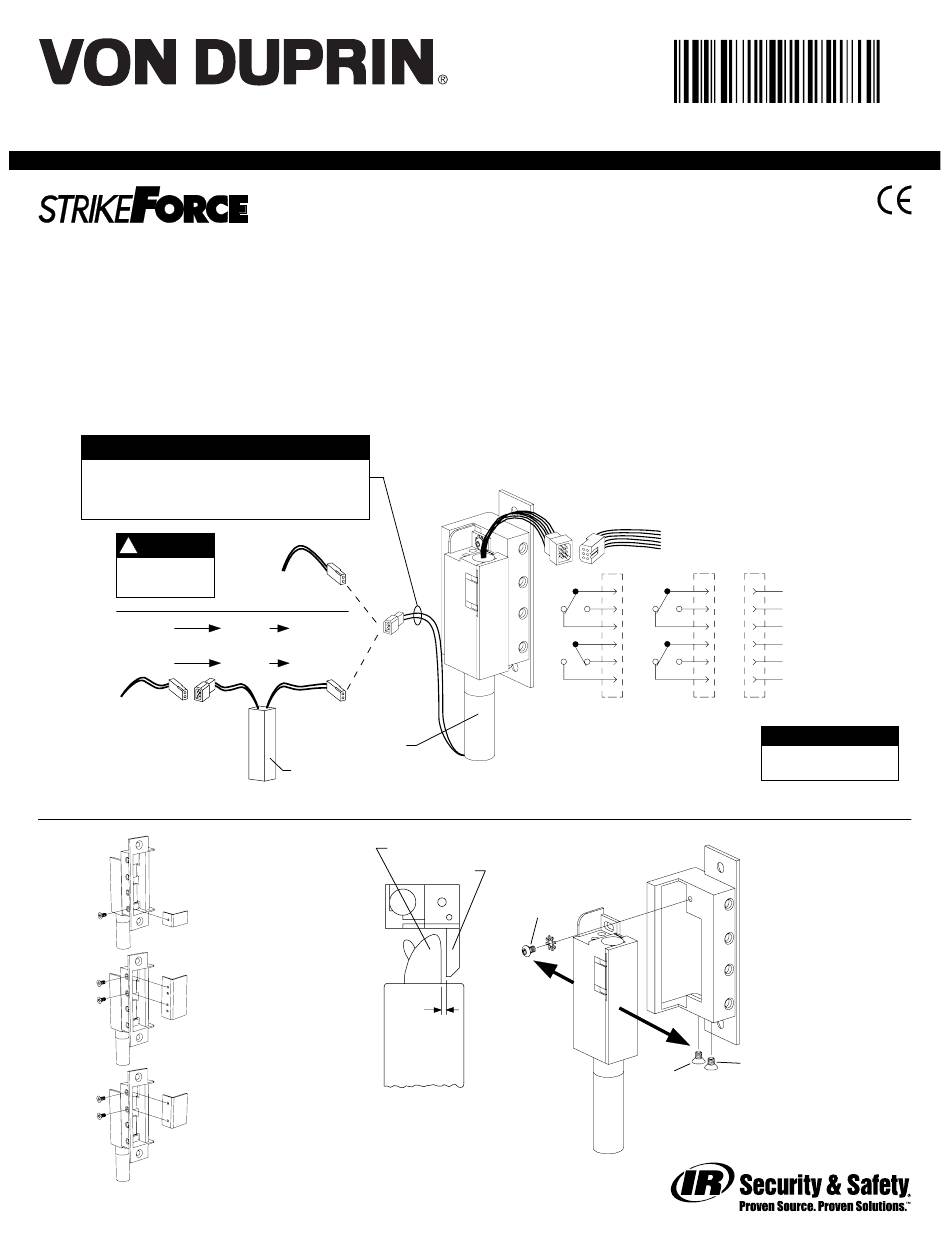

  • Page 1 P1 leads (switches and tripper on 6210DS only) Figure 1 Latch bolt Strike lip Insert and location for Von Duprin mortise locks Insert and location for Schlage 1/32” mortise locks Insert and location To adjust strike, loosen screws Top view;...
