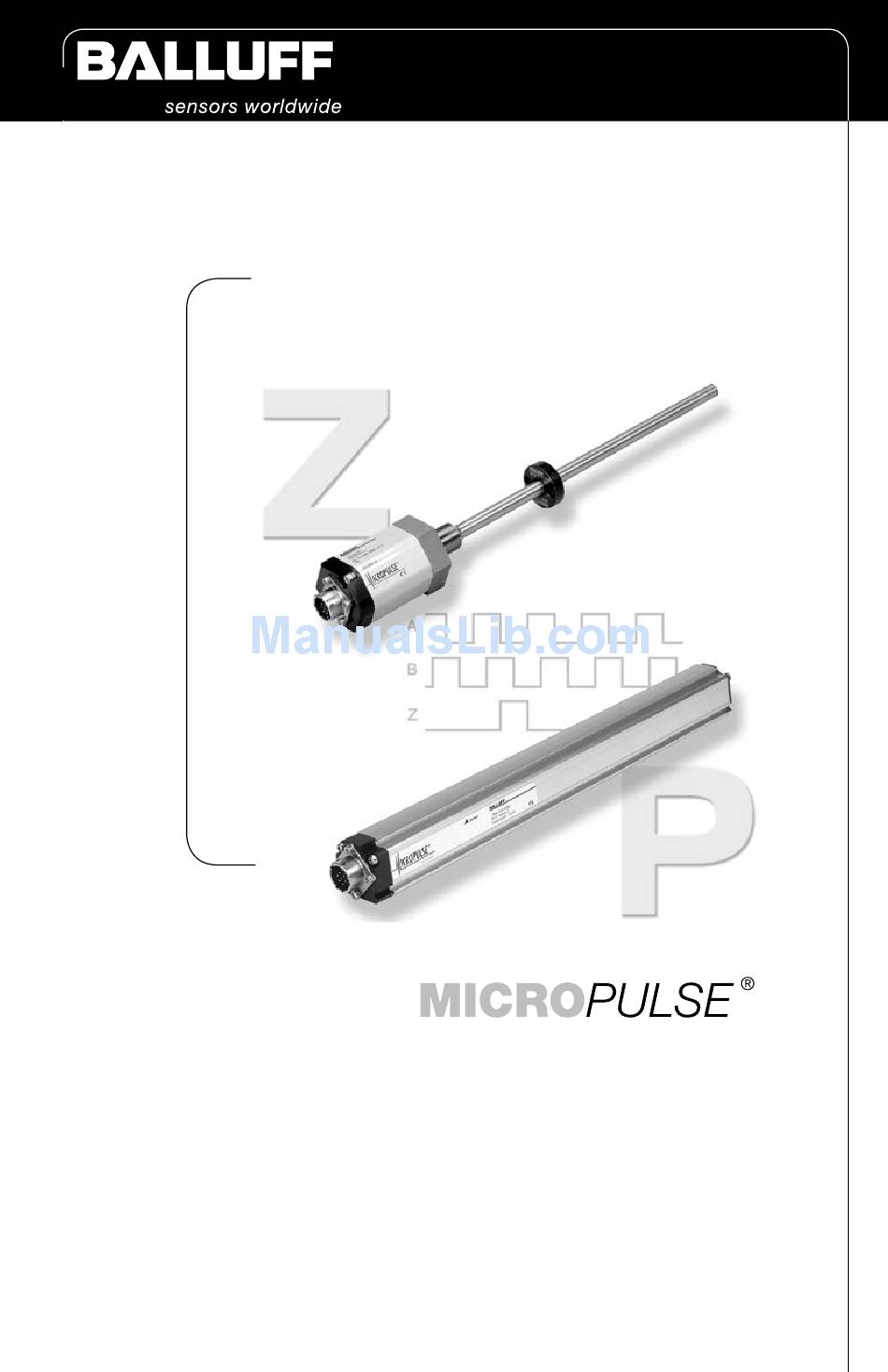

- Page 1 Technical Description / User’s Guide Micropulse Linear Transducer Absolute Quadrature Outputs Rod Style and Profile Style Housings...
-
Page 2: Table Of Contents
EN 61000-4-6 Severity level 3 Magnetic fields for Testing Electromagnetic Compatibility, EN 61000-4-2 Severity level 3 EN 61000-4-8 Severity level 4 has confirmed that Balluff products meet Electromagnetic fields (RFI) the EMC requirements of the following EN 61000-4-3 Severity level 3 Generic Standards:... -
Page 3: Electrical Data/Specifications & Wiring
WH/GN BKS S140-__* WH/GY Mating Connector WH/OR WH/BU STRB Input View of mating connector, wiring side * Specify cable length in +24 V (+15 V) meters or "00" for no WH/BN cable. Not used (-15 V) 0117a035 WWW.BALLUFF.COM • 1-800-543-8390... -
Page 4: Mechanical Dimensions/Installation - Rod Style Housing
50.8 mm (2in.) Standard 30 mm (Optional) Stroke Length 60 mm Dead Zone O-ring 12.7mm (0.5 in)Bore Magnet Sensor Rod 3/4-16UNF-3A Threads O 10.2 mm (0.401in) or M18 x 1.5 Metric Threads. Piston Head &Rod Assembly Non-ferrous Spacers 1-800-543-8390 • WWW.BALLUFF.COM... -
Page 5: Accessories - Rod Style Housing
Micropulse Linear Position Transducer Absolute Quadrature Output Rod Style & Profile Style Housings Accessories (Order Separately) – Rod Style Housing 10.5 3/4”-16UNF 0117A012 Jam Nut Ring Magnet BTL5-JAM-NUT BTL5-P-1013-4R Small Diameter Magnet Slotted Magnet BTL5-P-1012-4R BTL5-P-1013-4S WWW.BALLUFF.COM • 1-800-543-8390... -
Page 6: Mechanical Dimensions/Installation - Profile Style Housing
D = 5...15mm D = 0.1...4mm M5x0.8 Control Arm Extended Range Floating Magnet BTL-Z-5-GS08-_ _ _ _*-A Floating Magnet BTL5-P-3800-2 BTL5-P-5500-2 * Specify length in mm 13° 13° M5x0.8 Swivel Eye Mounting Foot BTL5-SWIVEL-EYE BTL-P-M5-VZ 1-800-543-8390 • WWW.BALLUFF.COM... -
Page 7: Operating Instructions & Operating Modes
Synchronous Mode – (ordering code Qxxx0) In this mode, the transducer synchronizes itself to an external controller via the STROBE input. This mode can only be used in conjunction with motion control- lers that support this function, e.g., Allen-Bradley IMC-S class controllers. For more information, please consult factory. WWW.BALLUFF.COM • 1-800-543-8390... -
Page 8: Strobe Input Functionality
This is accomplished by using the STROBE input. Holding the STROBE input low for a period of from 1 second to 5 seconds will set the Z pulse at the current magnet position. 1-800-543-8390 • WWW.BALLUFF.COM... -
Page 9: Speed Constraints
If these speed constraints are exceeded, the transducer will not be able to send all of the necessary pulses to represent a given amount of position change within a single update cycle. Note, however, that pulses are never “discarded”. The transducer will attempt to output the remaining pulses on the next update cycle. WWW.BALLUFF.COM • 1-800-543-8390... -
Page 10: Ordering Information
2 = free-running, 2ms update (stroke ≤2500 mm only) 0711 4 = free-running, 4ms update (any stroke length) Connection Type S140 = 10 pin MS connector KA = Integral cable (specify length in meters, e.g. "05" = 5 meters [standard]) 1-800-543-8390 • WWW.BALLUFF.COM... -
Page 11: Magnetostrictive Technology Overview
1 µm. right angles to the electromagnetic field. Damping Mechanical Wave Electromagnetic Field Position Marker with Magnets Mechanical Wave Initial Pulse Signal Converter Copper Receiver Conductor WWW.BALLUFF.COM • 1-800-543-8390... - Page 12 Phone: (905) 816-1494 Toll-free: 1-800-927-9654 Fax: (905) 816-1411 Web: www.balluff.ca E-mail: balluff.canada@balluff.ca Mexico Balluff de Mexico SA de CV Anillo Vial II Fray Junipero Serra No. 4416 Colonia La Vista Residencial Queretaro, QRO CP76232 Phone: (++52 442) 212-4882, Fax: (++52 442) 214-0536 Web: www.balluff.mx...
