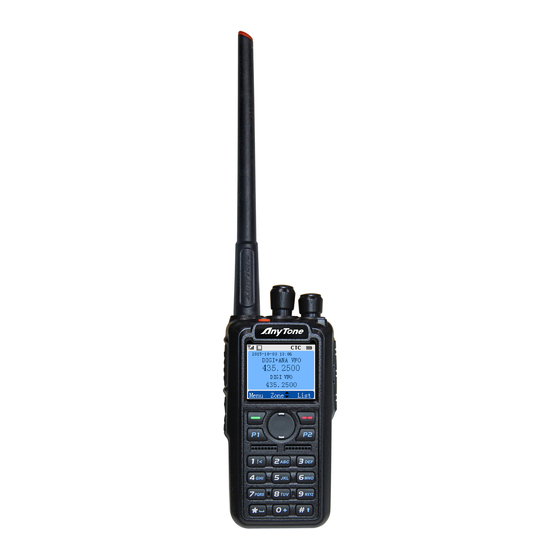

AnyTone AT-D868UV Operating Manual

Analog/digital handheld dmr transceiver dual band (vhf/uhf) for amateur radio
Hide thumbs Also See for AT-D868UV:
Table of Contents

Advertisement

Quick Links

See also: Programming Manual
Analog/digital handheld DMR transceiver
dual band (VHF/UHF) for amateur radio.
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-D868UV and is the answer not in the manual?

Questions and answers

Related Manuals for AnyTone AT-D868UV

Summary of Contents for AnyTone AT-D868UV

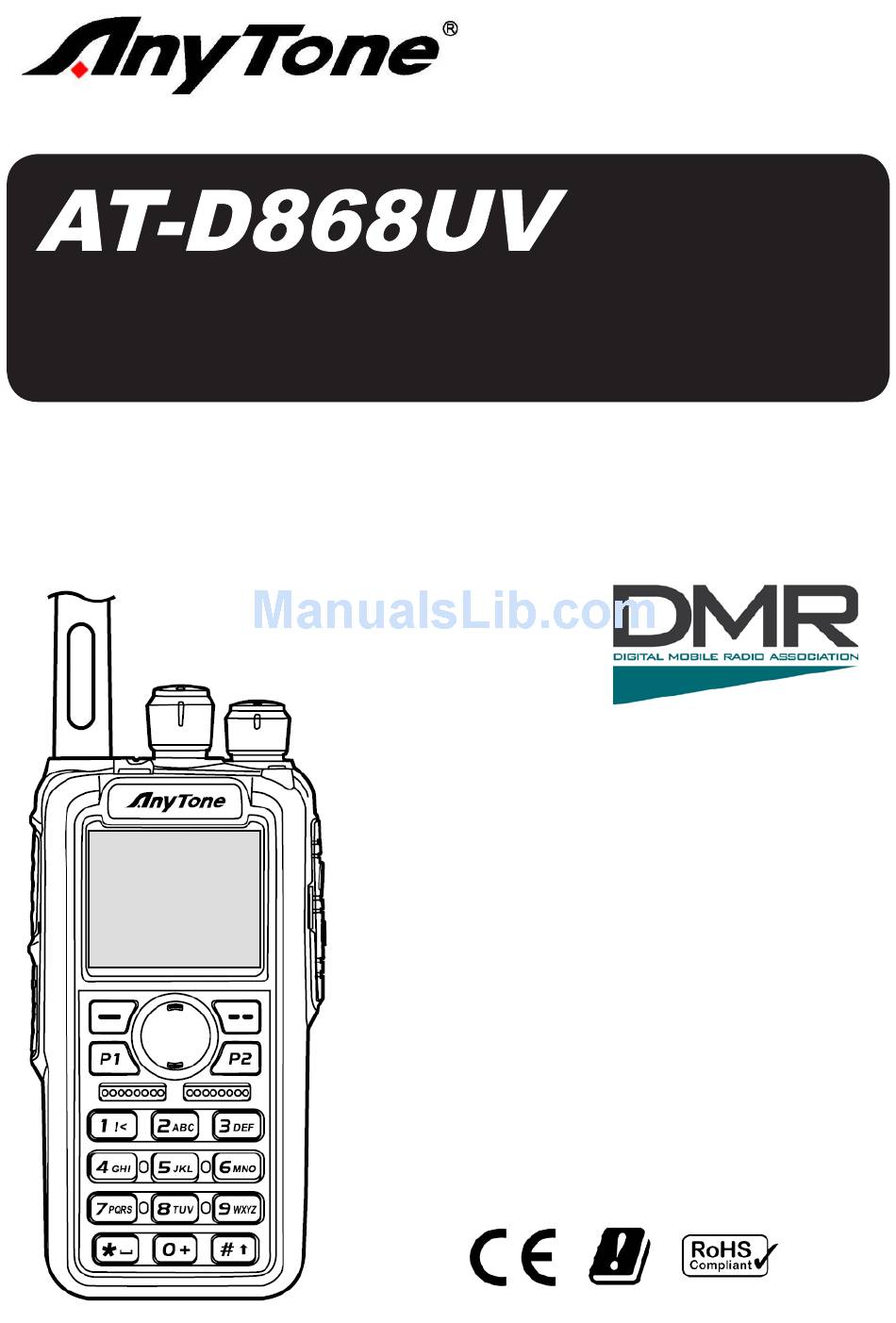

  • Page 1 Analog/digital handheld DMR transceiver dual band (VHF/UHF) for amateur radio. OPERATING MANUAL...
  • Page 2 Waste disposal. Directive 2012/19 / EU Information on waste disposal of electrical and electronic equipment (WEEE). This symbol on the product means that the electrical and electronic prod- ucts used must not be mixed with household waste. For proper treatment, recovery and recycling, take this product to designated collection points where it will be accepted for free.
  • Page 3 SMS, high-audio quality and digital encryption. It of- fers great stability, and reliability, together with long distance communication as well as fashionable design. AT-D868UV has Text message, recording, voice message, digital encryp- tion, emergency alarm, Man down alarm, lone work, GPS with APRS, Vibration and Analog DTMF, 2TONE, 5TONE, CTCSS/DCS encode/decode functions.
  • Page 4 Then contact your local AnyTone dealer for advice. ATTENTION • The above also applies to accessories for your AnyTone two way radio. If any item is not working normally, please contact your local AnyTone dealer. • Accessories made by other companies are not guaranteed by AnyTone to operate correctly and to keep the radio working safely.

  • Page 5: Table Of Contents

    5.9 Receiving and Responding to a Radio Call ............18 5.10 Make a call ...................... 19 5.11 Temporary monitor ..................19 5.12 Monitor ......................20 6. ADVANCED FEATURES ................... 21 6.1 Advanced Features for Private Call ..............21 6.2 Advanced Features .................... 21 AT-D868UV Digital DMR & analog transceiver...
  • Page 6 9.6.3 Device Info ..................... 34 10. TROUBLE SHOOTING GUIDE................35 11. PROGRAMMING GUIDE ..................36 12. ON-LINE SERVICE AND SUPPORT ................ 37 13. SECURITY ......................38 14. TECHNICAL SPECIFICATIONS ................40 15. DECLARATION OF CONFORMITY ................. 41 AT-D868UV Digital DMR & analog transceiver...

  • Page 7: Unpacking And Checking The Equipment

    If any items are missing or have been damaged during shipment, please contact the carrier or the dealers immediately. 1.1. Supplied Accessories Quantity Antenna Li-ion Battery Pack Battery Charger AC Adaptor Belt Clip Hand Strap Instruction Manual AT-D868UV Digital DMR & analog transceiver...

  • Page 8: Standard Accessories

    Belt clip Instruction manual (*) For frequency band of antenna, please refer to label indicated in the bottom of the antenna 1.3. Optional Accessories USB Programming Cable Earphone Li-ion Battery Pack Programming Software Car Charger AT-D868UV Digital DMR & analog transceiver...

  • Page 9: Battery Information

    2.3. Use Caution with the Li-ion Battery • Do not short the battery terminals or throw the battery into a fire. Never attempt to remove the casing from the battery pack, as AnyTone cannot be held responsi- ble for any accident caused by modifying the battery.

  • Page 10: How To Charge

    So the charger will charge the battery in constant voltage mode and fail to indicate correctly when the battery has been fully charged . AT-D868UV Digital DMR & analog transceiver...

  • Page 11: Normal Charging Tips

    AT-D868UV Digital DMR & analog transceiver...

  • Page 12: How To Store The Battery

    • Never store the battery in unsafe surroundings, as a short may cause an explosion. • Do not put the battery in a hot environment or throw it into a fire, as it may cause an explosion AT-D868UV Digital DMR & analog transceiver...

  • Page 13: Preparation

    • Installing the Antenna: Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. • Removing the Antenna: Turn the antenna counter-clockwise to remove it. AT-D868UV Digital DMR & analog transceiver...

  • Page 14: Installing / Removing The Belt Clip

    (Kenwood type). It is advisable to have the transceiver turned off when connecting the micro-loudspeaker or micro-phone or the programming cable. When using a headset (optional), avoid high volume levels to avoid possible hearing damage . AT-D868UV Digital DMR & analog transceiver...

  • Page 15: Radio Overview

    Rotate to adjust the volume after turning on the radio. ❹ MIC Input Please keep your mouth about 10cm away from the microphone to achieve the best voice quality. ❺ Speaker ❻ Display the frequency/channel information, operation and status. AT-D868UV Digital DMR & analog transceiver...

  • Page 16: Led Indicator

    The top LED will help you to identify the current radio status. LED Indication Status Flashes Red Low battery voltage Constant Red Transmitting Constant Green Analog Receiving Constant Cyan Digital Receiving Flashes Green SCAN AT-D868UV Digital DMR & analog transceiver...

  • Page 17: Programmed Key

    Main channel switch Choose channel A or channel B as the main channel. Hot key 1~6 Press the key to perform the programmed function in hot key setup. Alone Turn on/off the work alone function. AT-D868UV Digital DMR & analog transceiver...

  • Page 18: Default Function

    Answered calls Quick access to Answered Calls in the Menu - Call Log Missed calls Quick access to Missed Calls in the Menu - Call Log Zone Quick access to Zone in the Menu Radio Set Quick access to Radio Set in the Menu - Settings AT-D868UV Digital DMR & analog transceiver...

  • Page 19: Basic Operations

    Zones. A Zone can have the maximum of 160 analog and/or digital channels. Operation 1: In stanby mode, press directly to switch the zone, the LCD will display the selected zone number or name. AT-D868UV Digital DMR & analog transceiver...

  • Page 20: Select A Channel

    When receiving a call: • If the radio is programed with callers DMR ID number in the digital contact list, when receiving a call, the radio will ring or vibrate briefly. • The blue LED lights up. AT-D868UV Digital DMR & analog transceiver...

  • Page 21: Make A Call

    ID. Release the [PF2] key to shut off speaker and return to standby. In PC software, Public >> Optional Setting >> Other >> Mon Key should be set up to Squelch Off Momentary. AT-D868UV Digital DMR & analog transceiver...

  • Page 22: Monitor

    ID. Press the [PF2] key again to shut off speaker and return to standby. In PC software, Public >> Optional Setting >> Other >> Mon Key should be set up to Squelch Off. AT-D868UV Digital DMR & analog transceiver...

  • Page 23: Advanced Features

    Select Kill and it will send out a kill signaling to the target radio which will be killed (No display, no operation) when receiving the signaling and it will send back a kill successful message to the transmit radio. AT-D868UV Digital DMR & analog transceiver...

  • Page 24: Gps Positioning Function

    • Select Send and it will display Contact List or Manual Dial. • Select Contact List to choose a contact, press Select press select to send the GPS info. AT-D868UV Digital DMR & analog transceiver...

  • Page 25: Man Down Alarm

    When the function is on, the radio will start alarm if the radio is falling to the ground. Raise the radio to stop the alarm. When GPS is on and positioning successfully, it will auto send out the GPS information when the radio starts the alarm. AT-D868UV Digital DMR & analog transceiver...

  • Page 26: Recording

    Record Send and press Select. • Select Contact List to select a contact and send the record. • Select Manual Dial, input DMR ID. Press key to switch Private ID or Group ID. AT-D868UV Digital DMR & analog transceiver...

  • Page 27: Recording Manually

    • Select Contact List to select a contact and send the record. • Select Manual Dial, input DMR ID. Press key to switch Private ID or group. Recording function is only valid in digital channels. AT-D868UV Digital DMR & analog transceiver...

  • Page 28: Main Menu

    Switch the radio to channel mode, as the scan list is only valid in the channel mode. Select a Scan list as current scan list, then you can also reset the priority channel 1 and priority channel 2 in the scan list. AT-D868UV Digital DMR & analog transceiver...

  • Page 29: Settings

    If you select the option OFF then you can transmit with no time limit. Language Language of the menus and messages. Currently only English is available. AT-D868UV Digital DMR & analog transceiver...
  • Page 30 You can choose between 5 to 20 seconds of permanence. Intro Display • Picture: When you turn on the transceiver, the Anytone logo will be displayed. • Character: When you start the transceiver, the text you have configured using software will be displayed.
  • Page 31 • Radio Mon On: When FM radio is used, you can still receive or transmit on the channel. • Radio Mon Off: When the FM radio is running you can not transmit or receive. AT-D868UV Digital DMR & analog transceiver...
  • Page 32 Press to change to modify another value. When you have finished press to confirm. • GPS Check: When the GPS is active and positioned it will adjust the date and time automatically. AT-D868UV Digital DMR & analog transceiver...

  • Page 33: Chan Set

    • Channel Free: Allows transmit when the channel is free. • Different CC: Allow transmit when receive matched signal but different color. • Same CC: Allow transmit when receive matched signal and same color. AT-D868UV Digital DMR & analog transceiver...
  • Page 34 Work Alone Predict. The user has to confirm by pushing the programmed work alone key to confirm continuing work alone, otherwise, the radio will start its alarm and send the alarm on the channel when reaching its preset response time. AT-D868UV Digital DMR & analog transceiver...
  • Page 35 • C|T: You can hear the call when the channel receives a matched CTCSS/DCS or matched signaling. Band Width Select Wide Band or Narrow Band for the analog channel. Reverse When this function is enabled, the RX frequency, TX frequency and CTCSS/DCS encode/decode will be reversed. AT-D868UV Digital DMR & analog transceiver...

  • Page 36: Device Info

    • Edit the 5Tone in the PC programing software before it can be selected. 9.6.3. Device Info Shows the Radio ID, Radio name, serial number, model name, frequency range, firmware version, radio data version, latest program date, picture version, language version, etc. AT-D868UV Digital DMR & analog transceiver...

  • Page 37: Trouble Shooting Guide

    • Analog: Change the CTCSS/DCS tone, Other voices from non-group members and make sure to change the tone on all are heard on the channel. radios in your group. AT-D868UV Digital DMR & analog transceiver...

  • Page 38: Programming Guide

    Multiple Radio IDs The AT-D868UV radio will allow multiple DMR Radio ID numbers to be used with the radio. This feature will allow one radio to be used for example as a Commercial Radio with its own DMR ID, and at the same time also be used as an Amateur radio with another DMR ID.

  • Page 39: On-Line Service And Support

    Visit: www.anytone.net Every effort has been made to ensure that the information in this document is complete, accurate, and up to-date. Anytone Radio assumes no responsibility for the results of errors beyond its control. The manufacturer of this equipment also cannot guarantee that changes in the equipment made by non-authorized users will not affect the information in it.

  • Page 40: Security

    • Do not keep the radio with the antenna very close to, or touching exposed parts of the body, while transmitting. Anytone radios will perform best, if you speak 2-4 inches away from the microphone and the radio is vertical.
  • Page 41 13. SECURITY • Be certain that your power source matches the rating listed for the supplied bat- tery charger (AC adapter). If you are not sure, check with your authorized Anytone dealer. • Avoid damaging the power cable of the battery charger. Do not step on or place anything on it as this could result in a damaged charger power cord.

  • Page 42: Technical Specifications

    ≥60 dB Hum & Noise ≥40 dB ≥36 dB Spurious Emission ≤-36 dB ≤-36 dB 4FSK Digital Modulation 12.5 KHz (datos) 7K60FXD 12.5 KHz (datos + voz) 7K60FXE Audio Distortion ≤5% Error rate ≤3% AT-D868UV Digital DMR & analog transceiver...

  • Page 43: Declaration Of Conformity

    Equipment: VHF/UHF dual band digital DMR/analogue amateur handheld transceiver Brand name: AnyTone Model: AT-D868UV Manufacturer: Qixian Electron Science & Technology Co., Ltd. Made in: CHINA We, FALCON RADIO & A.S., S.L. declare under our sole responsibility that the above named product it´s conforms to the provisions of the Directive 2014/53/UE of...
