Determining the firmware version for the AT-D868UV and AT-D878UV
Are you trying to find out which version of firmware is inside your
radio? This application note will tell you how to determine the
firmware version of the radio and the display.

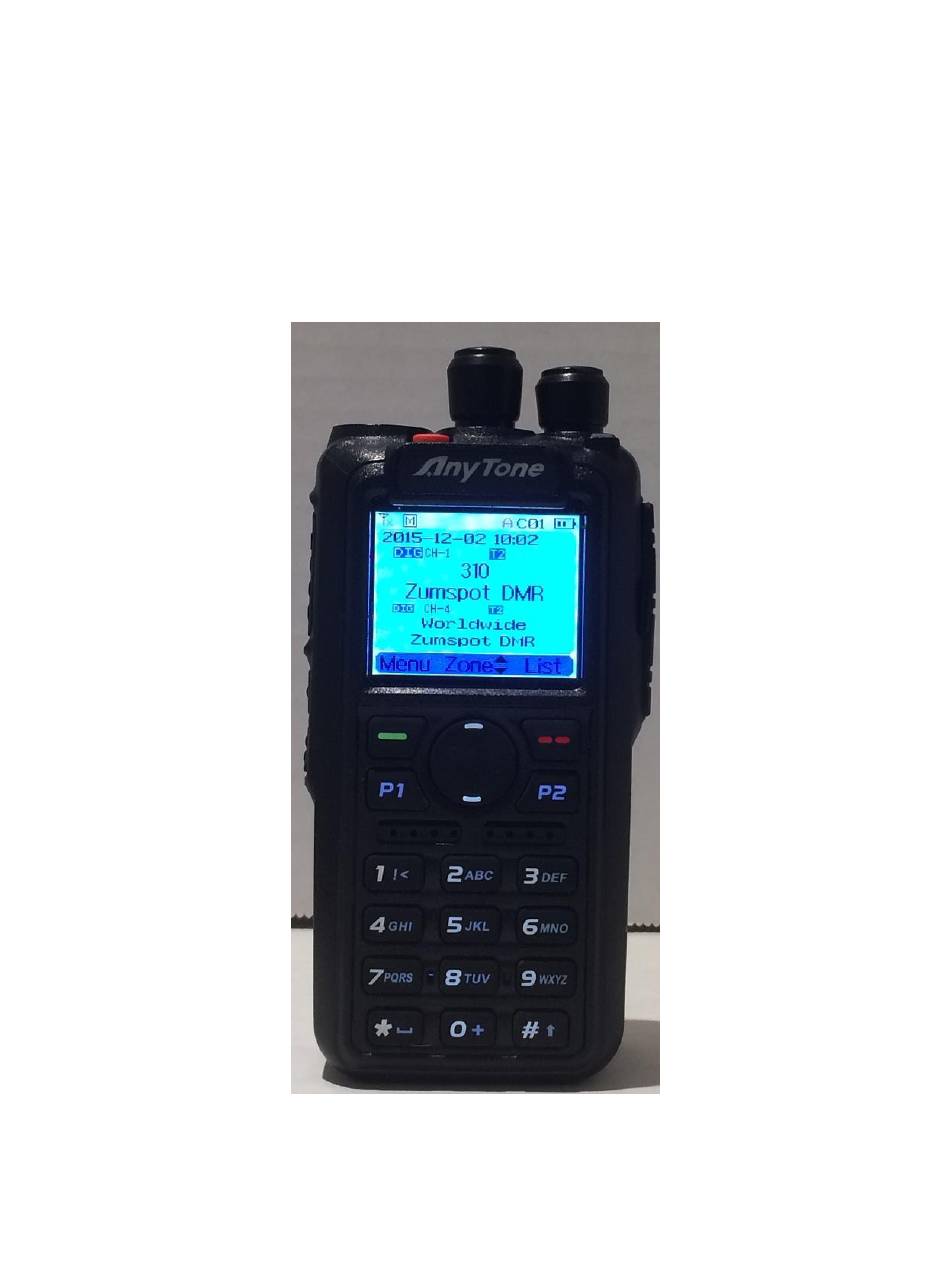

Turn on the power to the radio and you should see a screen like this.
Note the green buttons and the circular button.
COPYRIGHT BY CONNECT SYSTEMS INC. PERMISSION IS GRANTED TO DISTRIBUTE OR POST
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AT-D868UV and is the answer not in the manual?

Questions and answers

Related Manuals for AnyTone AT-D868UV

Summary of Contents for AnyTone AT-D868UV

  • Page 1 Determining the firmware version for the AT-D868UV and AT-D878UV Are you trying to find out which version of firmware is inside your radio? This application note will tell you how to determine the firmware version of the radio and the display.
  • Page 2 Start by pressing the green (Menu) key. You should get the following screen: COPYRIGHT BY CONNECT SYSTEMS INC. PERMISSION IS GRANTED TO DISTRIBUTE OR POST...
  • Page 3 Press the circular key multiple times to scroll until you get the following screen: If you scroll down, you get the screen shown above. If you scroll up, then the Settings selection would be on the top of the screen and the screen will look slightly different.
  • Page 4 Press green (Select) key once and you get the following screen: COPYRIGHT BY CONNECT SYSTEMS INC. PERMISSION IS GRANTED TO DISTRIBUTE OR POST...
  • Page 5 Press the circular key multiple times to scroll until you get the following screen: You can scroll up or down to get the above screen. COPYRIGHT BY CONNECT SYSTEMS INC. PERMISSION IS GRANTED TO DISTRIBUTE OR POST...
  • Page 6 Press green (Select) key once and you get the following screen: The Radio ID and Radio Name is based on the code plug that was in the radio at that time. Yours will be different COPYRIGHT BY CONNECT SYSTEMS INC. PERMISSION IS GRANTED TO DISTRIBUTE OR POST...
  • Page 7 Press the circular key down until you see the following screen. You radio might have a different frequency range. Notice for this radio the firmware version is 2.29_beta. Yours will probably be different. While scrolling in this screen, you can get the following parameters: Radio ID Radio Name Model Name...
  • Page 8 Last Program Date Picture Version Language Version SCT 3258 Firmware Version You can scroll back up if you missed a parameter. COPYRIGHT BY CONNECT SYSTEMS INC. PERMISSION IS GRANTED TO DISTRIBUTE OR POST...
