Digital Networks DECserver ConX4 Installation And User Manual page 40

Cable Connector Pin Out
Table A-7 defines the wiring configuration for the BN25G cable.
Table A-7: BN25G Cable Wiring Configurations.
DECserver ConX
8-pin Modular Plug
Pin Signal
1 RXD GND
2 RXD
3 TXD GND
4 Not used
5 Not used
6 TXD
7 DTR
8 DSR
The BN24H is a twisted-pair (three twisted pairs) cable with a standard 8-pin RJ45 connector on one end
and a 6-pin modified modular plug on the other end. Use this cable to connect the DECserver ConX
an MMJ connector on an asynchronous device. You can also use the BN24H when connecting an
asynchronous device to a DECconnect wall plate.
Use an H8584-AA adapter when connecting the DECserver ConX
uses a standard 8-pin RJ45 connector on one side and a 6-pin modified plug on the other end.

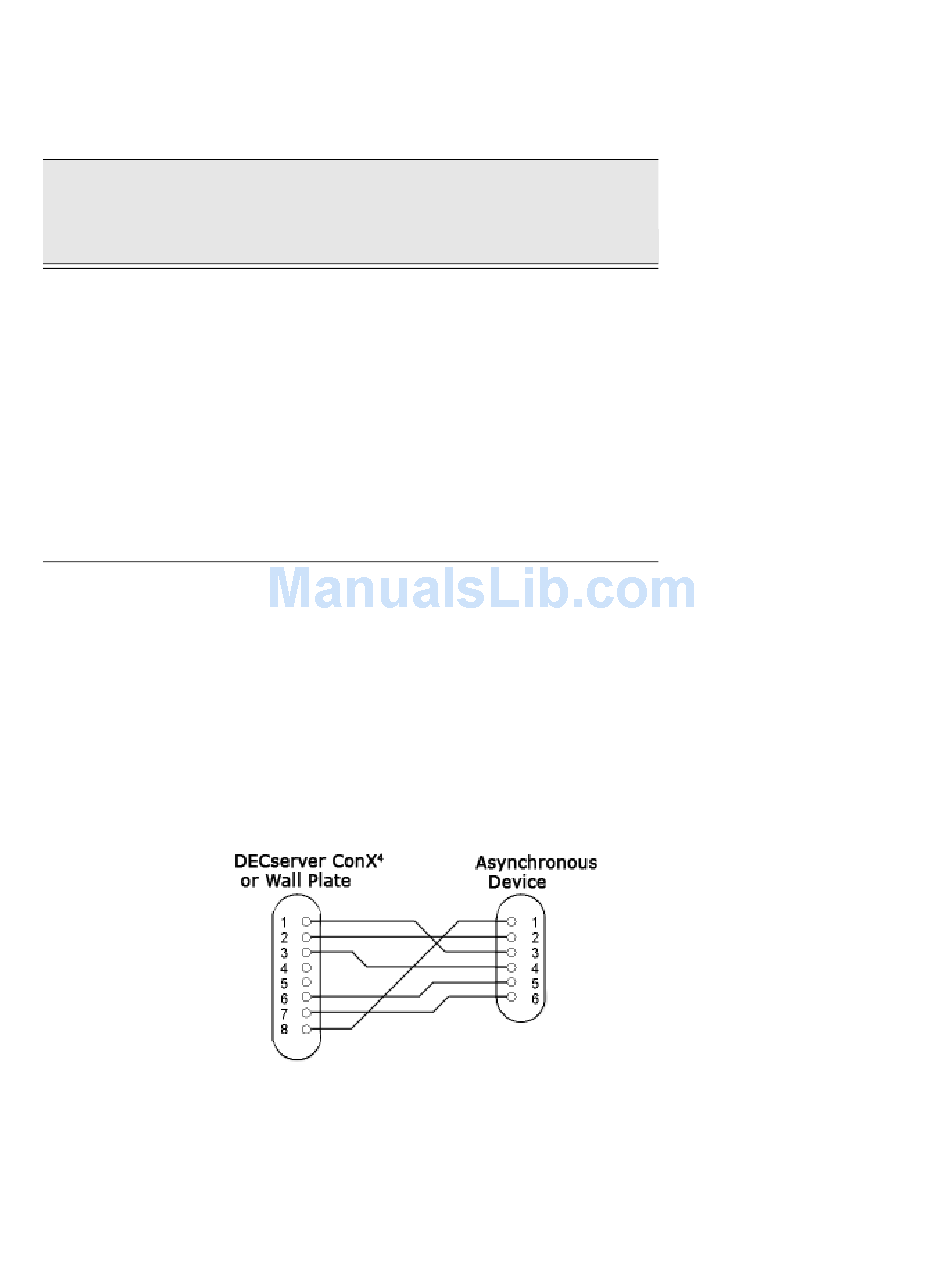

Figure A-3 shows the wiring configuration for the BN24H cable and H8584-AA adapter.
Figure A-3: BN24H Office Cable Wiring Diagram
Table A-8 defines the wiring configuration for the BN24H cable.
A-6
4
8-pin Modular Plug
Pin
1
2
3
4
5
6
7
8
RJ45
Signal
RXD GND
RXD
TXD GND
Not used
Not used
TXD
DTR
DSR
4
to existing MMJ wiring. The adapter
4
to
