DECserver ConX4 Connector Pin Out
DECserver ConX
Pin out for the DECserver ConX
shows the circuit connections for each port.

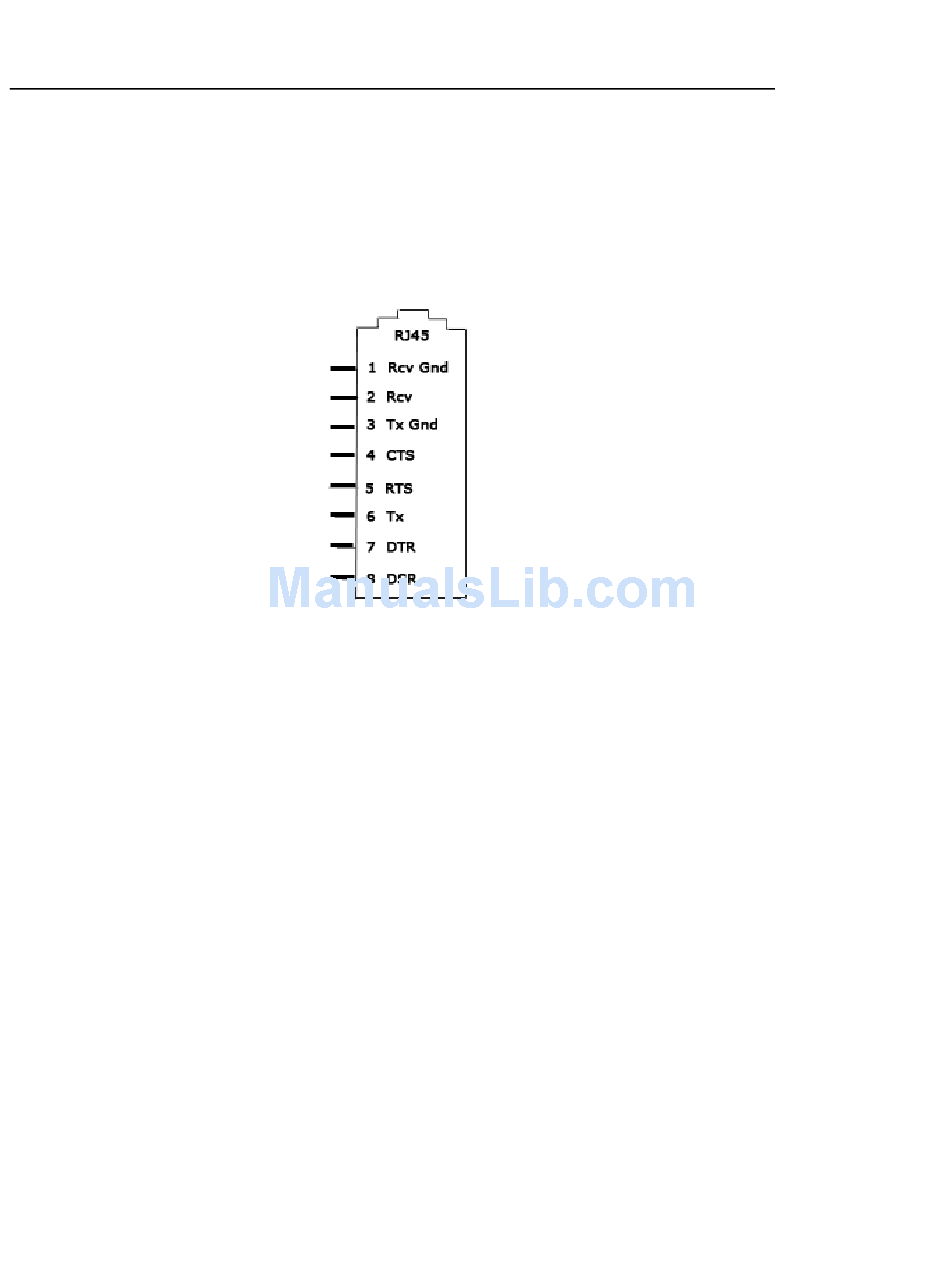

Figure A-1: Port Circuit
A-4
4
Connector Pin Out
4
was designed for compatibility with Open DECconnect. Figure A–1
