Cable Connector Pin Out
This section provides wiring diagrams for the serial communication cable connectors listed in Table A–6.
Table A-6: Cable Connectors
Item
BN25G
BN24H
The BN25G is a twisted-pair (four twisted pairs) cable with standard 8-pin modular plugs. The cable is
wired straight-through for all eight connectors. Figure A–2 shows the wiring configuration for the
BN25G cable. This is the standard cable used to connect an asynchronous port on the DECserver ConX
to an Open DECconnect wall plate. The cable comes in different lengths and two versions: CAT5 and
CAT5e.

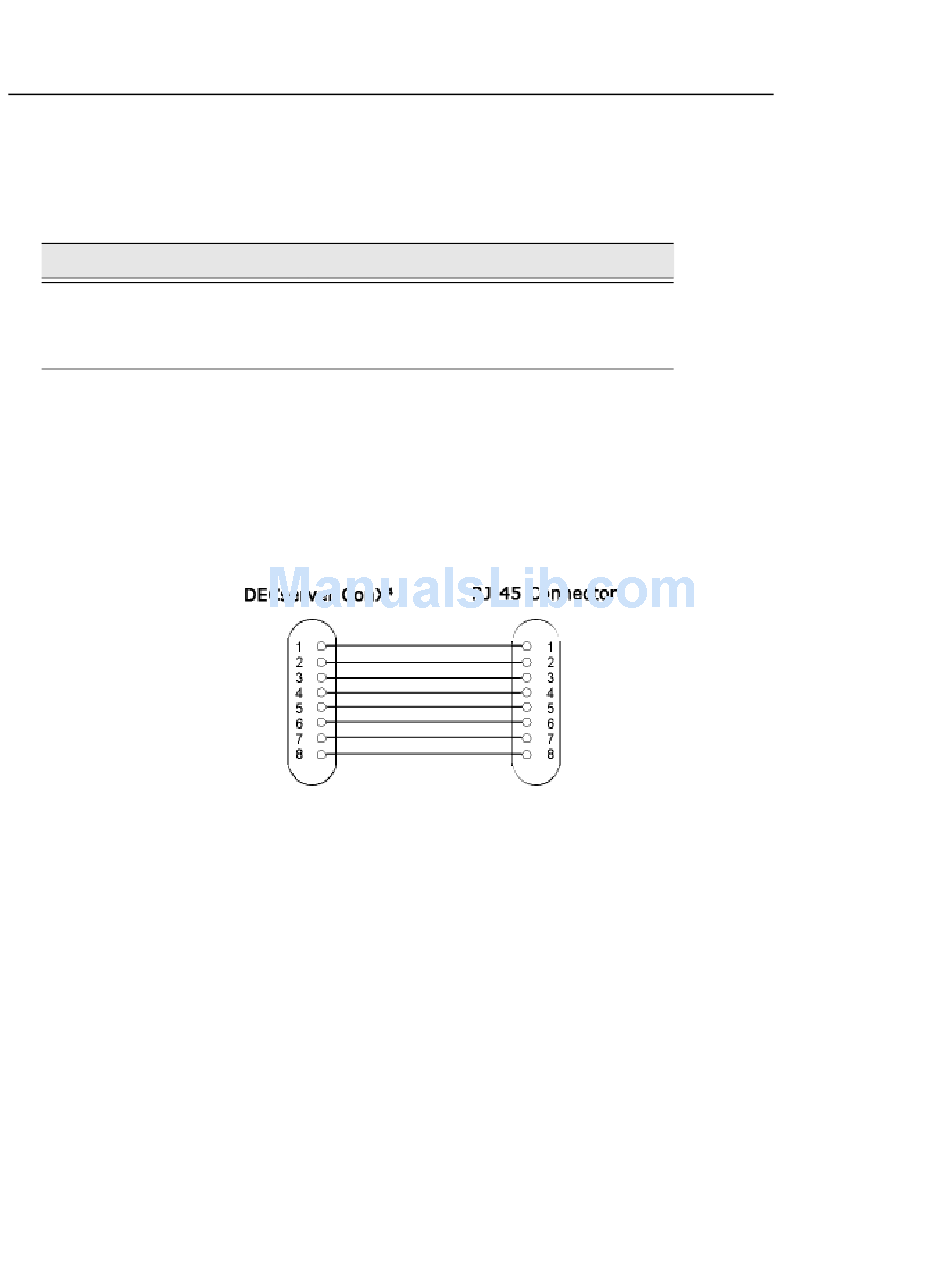

Figure A-2: BN25G & BN25E Equipment Cabling Wiring Diagram
Value
MP8-to-MP8 (Modular Plug) equipment cable
MP8-to-MMP6 (Modified Modular Plug) office
cable
Cable Connector Pin Out
4
A-5
