Modularity:
6 available slots

4, 8, 12, 16 Serial Port Configurations

2 or 4 Fast Ethernet Ports

Mounting Options
Panel/Din Rail

19" Rack Mount

Front or Rear Mount

Integrated Power Supply
Universal high-voltage range:

88-300VDC or 85-264VAC
Popular low voltage DC ranges:

24VDC (10-36VDC), 48VDC
(36-59VDC)
True Dual Redundant Parallel

Load Sharing (Optional)
www.RuggedCom.com

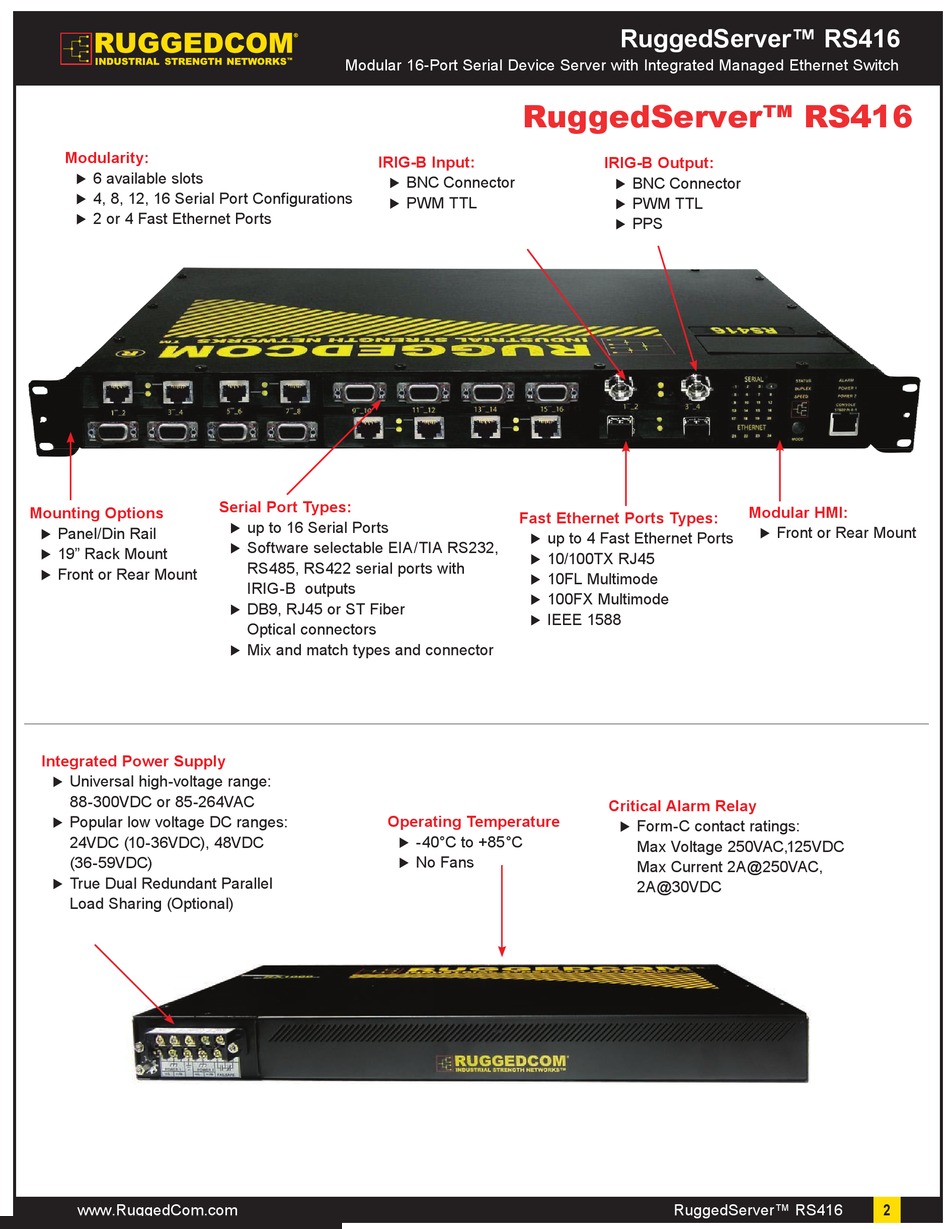

Modular 16-Port Serial Device Server with Integrated Managed Ethernet Switch

IRIG-B Input:



Serial Port Types:
up to 16 Serial Ports

Software selectable EIA/TIA RS232,

RS485, RS422 serial ports with
IRIG-B outputs
DB9, RJ45 or ST Fiber

Optical connectors
Mix and match types and connector

Operating Temperature


RuggedServer™ RS416
BNC Connector
PWM TTL
Fast Ethernet Ports Types:
up to 4 Fast Ethernet Ports

10/100TX RJ45

10FL Multimode

100FX Multimode

IEEE 1588

-40°C to +85°C
No Fans
RuggedServer™ RS416

IRIG-B Output:

BNC Connector

PWM TTL

PPS

Modular HMI:
Front or Rear Mount

Critical Alarm Relay
Form-C contact ratings:

Max Voltage 250VAC,125VDC
Max Current 2A@250VAC,
2A@30VDC
RuggedServer™ RS416 2
