Modular Serial Device Server with Integrated Managed Ethernet Switch Installation Guide December 18, 2012 www.ruggedcom.com RuggedCom Inc. I 300 Applewood Crescent, Concord, Ontario, Canada L4K 5C7 Tel: +1 905 856 5288 I Fax: +1 905 856 1995 I Toll Free: 1 888 264 0006...
Page 2
We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot be completely ruled out. RuggedCom shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material.

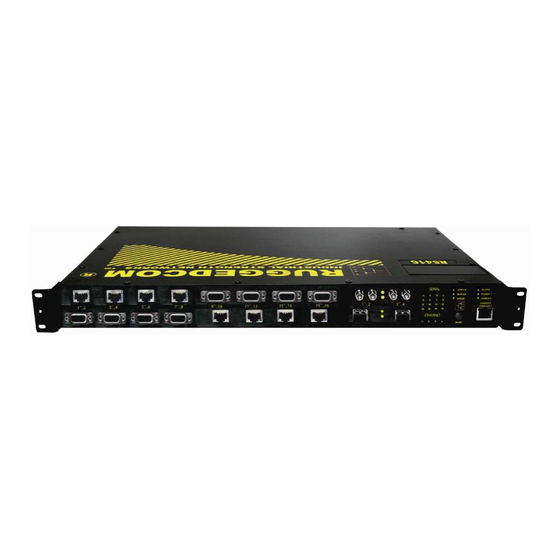

RS416 ideal for creating mission-critical, real-time, control applications in any harsh environment. The RS416 is also backed by RuggedCom's all inclusive five year warranty and unsurpassed technical support. The RS416 implements both the Precision Time Protocol (PTP - IEEE 1588 v2) and IRIG-B for high-precision time synchronization across both Ethernet and legacy networks.
Fully integrated, dual-redundant (optional) power supplies (RS416) Power over Ethernet (PoE) on 10/100BaseTx ports (RS416P) Universal high-voltage range: 88-300 VDC or 85-264 VAC Popular low voltage DC ranges: 12 VDC, 24 VDC, 48 VDC ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
Page 9
Port Rate Limiting and Broadcast Storm Limiting Port configuration, status, statistics, mirroring, security Management Tools Web-based, Telnet, CLI management interfaces SNMP v1/v2/v3 Remote Monitoring (RMON) Rich set of diagnostics with logging and alarms ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
The port-based LEDs can be cycled between three display modes: Status, Duplex, and Speed. Pushing the mode button causes the display mode to be cycled. Table 2 defines the possible port LED colors and the corresponding description. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
> 57600 bps Green (Solid) 100Mbps > 19200 bps, ≤ 57600 bps Speed Orange (Solid) 10 Mbps ≤ 19200 bps No link No link Table 2: LED Display - Port LED behavior definition ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
See Figure 2 for rack mount orientation examples. Figure 2: Rack mount chassis orientation options – Front and rear mount. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
Although forced airflow is not necessary, any increase in airflow will result in a reduction of ambient temperature that will improve long-term reliability of all equipment mounted within the rack space. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
1” DIN rail using the grooves in the adapter, secured using the included Phillips screw. See Figure 5 for a PANEL/DIN mount diagram. Figure 5: RS416 Series PANEL/DIN RAIL mounting diagram ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
Figure 8: Chassis Ground Connection The RS416 can be equipped with either a Phillips Screw Terminal Block or a Phoenix Plug Terminal Block. The Phillips Screw Terminal Block has Phillips screws with a ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
PS2+ is connected to the positive (+) terminal of a PS2+ 48VDC power supply PS2- is connected to the negative (-) terminal of a PS2- 48VDC power supply Table 4: RS416/RS416P power supply connection differences ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
3. When equipped with two HI voltage power supplies, independent AC sources can be used to power the product for greater redundancy. However, separate circuit breakers must be installed and separately identified (not shown in above figure). ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
5. When equipped with two DC voltage power supplies (88-300VDC rated); independent DC sources may be used to power the product for greater redundancy. However, separate circuit breakers must be installed and separately identified (as shown in the above figure). ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
3. A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies. 4. Separate circuit breakers must be installed and separately identified. 5. Equipment must be installed according to the applicable country wiring codes. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
1. 100-240VAC rated equipment: A 250VAC appropriately rated circuit breaker must be installed. 2. A circuit breaker is not required for 48VDC rated power supplies. 3. Equipment must be installed according to the applicable country wiring codes. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
HIPOT testing. Figure 14 shows the proper HIPOT test connections and should be followed to avoid damage to the device. Figure 14: Dielectric Strength (HIPOT) Testing ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
15. A common application for this output is to signal an alarm if a power failure or removal of control power occurs. The failsafe relay current and power handling capabilities are specified in section 6.2 - Failsafe Relay Contact Ratings. Figure 15: Failsafe Alarm Relay Wiring ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
Figure 16: Console port location on display board Figure 17: Console cable For user reference, the console cable pin-out is show in the table below. RuggedCom RS232 over RJ45 pin-out specification Female DB9 Signal Name (PC is DTE) Male RJ45 Female DCD –...
RS485, RS422, or RS232 devices to communicate over secure, noise immune, optically isolated, fiber optic cabling at extended distances as well as protocol independent conversion to multimode fiber optics. Figure 18: Fiber Serial Interface (ST Connector) ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
A DTE that asserts RTS will see CTS asserted, although the RuggedServer will not perform hardware flow control. 3. RI is not connected 4. In RS232 DCE mode, ports transmit to DTE devices on pin 2 and receive from DTE on pin 3. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
3. In RS232 DTE mode, ports receive on pin 2 and transmit on pin 3. The IRIG-B output on each port is configurable via software to provide IRIG-B pulse- width modulated output (IRIG-B006 or IRIG-B007) or PPS output, a single pulse per second on the second. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
A DTE that asserts RTS will see CTS asserted, although the RuggedServer will not perform hardware flow control. 3. In RS232 mode, the RJ45 ports conform to EIA-561 DTE, which transmit on TXD and receive on RXD. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
RXD. The IRIG-B output on each port is configurable via software to provide IRIG-B pulse- width modulated output (IRIG-B006 or IRIG-B007) or PPS output, a single pulse per second on the second. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
5. The shield should be connected to earth ground at a single point to avoid loop currents 6. The twisted pair should be terminated at each end of the chain. The figure below shows the recommended RS485 wiring. Figure 23: Conceptual recommended RS485 wiring diagram ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
Serial Ports 3.7 Serial Port Transient Protection RuggedCom does not recommend the use of copper cabling of any length for critical real-time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance.
IRIG-B module, which occupies one slot in lieu of a two-port Ethernet module. The IRIG- B module has one dedicated input and one dedicated output. These ports operate in IRIG-B PWM mode (IRIG-B006 or IRIG-B007) only. ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
5 Ethernet Ports 5.1 Copper Ports The RS416 may have up to 4 10/100BaseTX ports that allow connection to standard CAT-5 UTP cable with RJ45 male connectors. All RJ45 Ethernet ports feature auto- ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
No Connection Figure 26: RJ45 port pins configuration. NOTE: RuggedCom does not recommend the use of copper cabling of any length for critical real-time substation automation applications. However, transient suppression circuitry is present on all copper ports to protect against damage from electrical transients and to ensure IEC 61850-3 and IEEE 1613 Class 1 conformance.
The LED will be solid for ports with link, and will blink for activity. The diagram in Figure 32 highlights the port and the associated link/activity LED. Figure 32: Ethernet panel LED description ® RuggedServer™ RS416 Family Installation Guide rev118 RuggedCom...
Table 17: Fiber Optic Port Specification NOTES: 1. Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. 6.3.2 IRIG-B Ports Parameter...
Table 21: Ethernet Ports – Fiber Optic Specifications NOTES: Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. 1. All optical power numbers are listed as dBm averages.
IEC/EN Compliant A2:2001 Table 27: Agency Approvals 9 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
