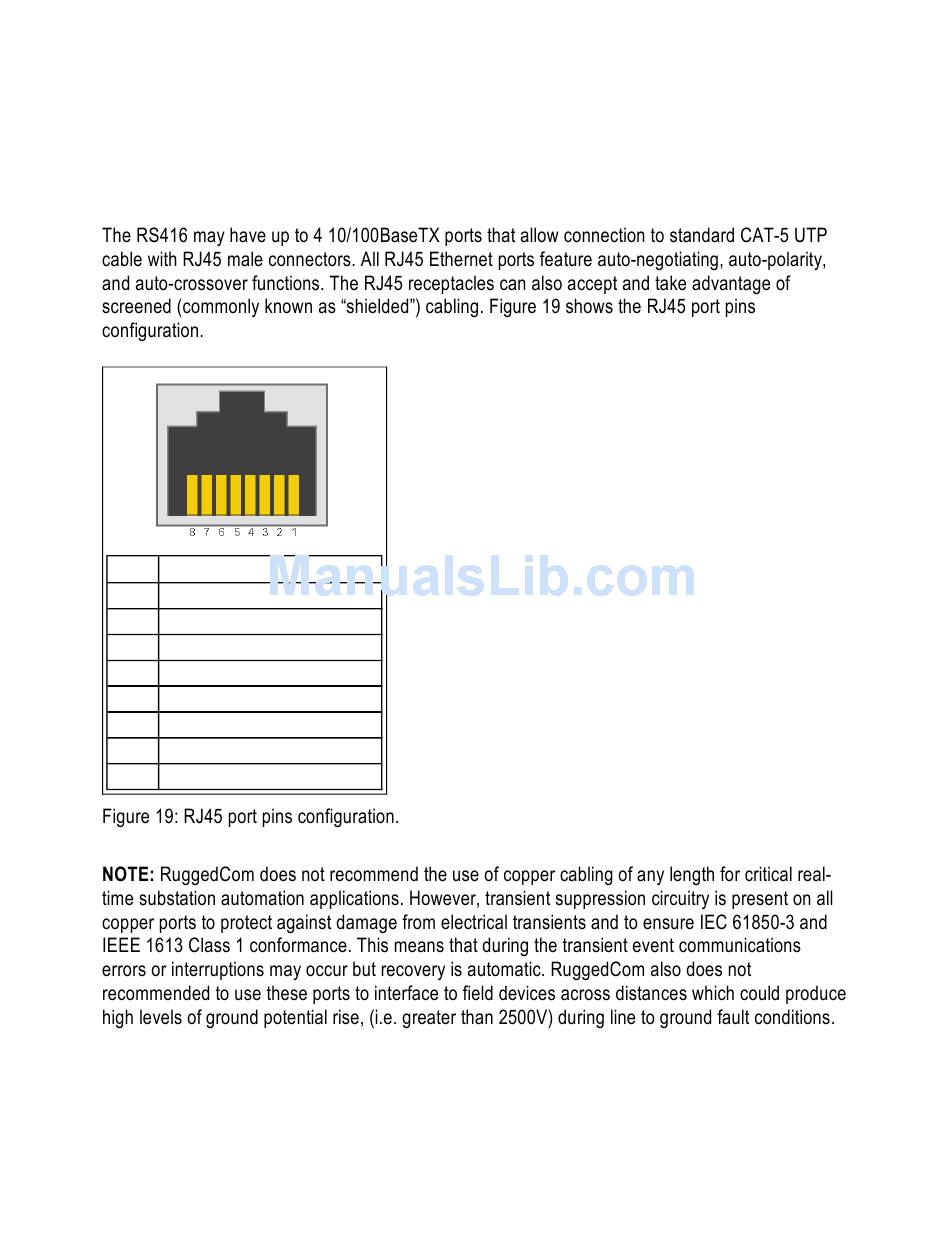

4.7 Ethernet Ports

4.7.1 Copper Ports

Pin
Signal
1
+Rx
2
-Rx
3
+Tx
4
No Connection
5
No Connection
6
-Tx
7
No Connection
8
No Connection
©
2008 RuggedCom Inc. All rights reserved
26
Rev104
