EM-1240-LX
Quick Installation Guide
Third Edition, June 2008
1. Overview
Thank you for purchasing the Moxa EM-1240 Embedded Module. The
product's features include 4 software-selectable RS-232/422/485 serial
ports, two 10/100 Mbps Ethernet ports, and SD signals for external SD
socket connections, based on the Moxa ARM9 32-bit 192 MHz
communication processor. These features make the EM-1240 ideal for
use as the core module of an industrial embedded system.
In addition, Moxa provides an EM-1240 Development Kit, which is
designed for system and software program development at the system
evaluation stage. The kit includes the EM-1240 embedded computer,
and the EM-1240-DK carrier board, which is used to evaluate the
EM-1240. The EM-1240's pre-installed, ready-to-run μClinux Kernel
2.6 makes it easy for users to develop programs for any application.
2. Package Checklist
Before installing the EM-1240 Development Kit, verify that the
package contains the following items:
1 EM-1240 Embedded Module
1 EM-1240-DK (the carrier board of the EM-1240 Development Kit)
Quick Installation Guide
Document & Software CD
Cross-over Ethernet cable
Universal Power Adaptor
Product Warranty Statement
Please notify your sales representative if any of the above items are
missing or damaged.
3. Product Features
Moxa ART ARM9 32-bit 192 MHz communication processor
16 MB RAM, 8 MB Flash ROM on the board
4 software-selectable RS-232/422/485 serial ports
Dual 10/100 Mbps Ethernet ports
RS-232 console port (supports full signal and PPP)
Ready-to-Run μClinux Kernel 2.6.9 communication platform
SD signals supported for external Secure Digital (SD) socket
connection
10 GPIO reserved for system integration (NOTE: To enable GPIO,
SD must first be disabled)
— 1 —

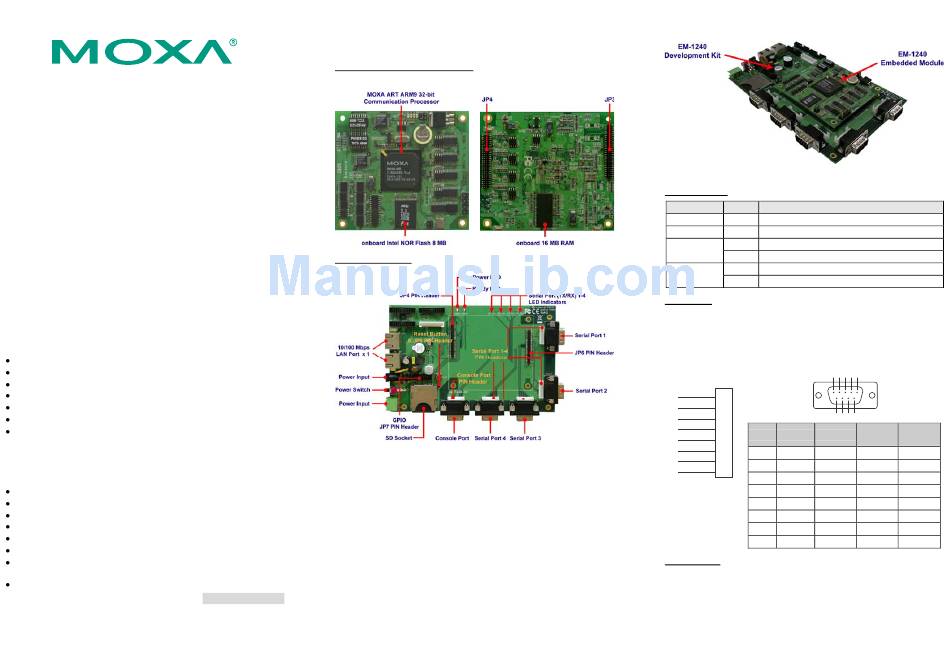

4. Hardware Introduction
EM-1240 Embedded Module View
Top View
EM-1240-DK View
5. Combining Embedded Module with EM-1240-DK
Insert the EM-1240 embedded module vertically onto the Development
Kit board. Note that the pin marked "JP4" on the embedded module
must be matched with the pin marked "JP6" on the Development Kit;
the pin marked "JP3" on the embedded module must be matched with
the pin marked "JP4" on the development kit. Use caution when
combining the boards, since improper handling could damage the
boards' pins.
P/N: 1802012400012
Bottom View
— 2 —
6. EM-1240-DK Introduction
LED Indicators
LED Name
Color
LED Function
Green
Power is on.
Power
Green
Power is on and system functions normally.
Ready
Green
Serial port 1-4 is transmitting data.
P1-P4 (Tx)
Off
Serial port 1-4 is not transmitting data.
Yellow Serial port 1-4 is receiving data.
P1-P4 (Rx)
Off
Serial port 1-4 is not receiving data.
Serial Ports
The EM-1240 embedded module offers 4 software-selectable serial
ports. The software that comes with the product can be used to
configure these ports. Detailed information is provided in the Software
User's Manual.
Pin Header
Male DB9 Port
J1/J3/J4/J6
1
2
3
DCD
1
RxD
2
TxD
3
6
7
DTR
4
Pin
RS-232
RS-422
GND
5
DSR
6
1
DCD
TxDA(-) TxDA(-)
RTS
7
2
RxD
TxDB(+) TxDB(+)
CTS
8
3
TxD
RxDB(+) RxDB(+) DataB(+)
4
DTR
RxDA(-) RxDA(-) DataA(-)
5
GND
GND
6
DSR
---
7
RTS
---
8
CTS
---
Console Ports
The EM-1240 embedded module has 1 serial console port for onsite
configuration. However, it can also be used as an RS-232 serial port.
Detailed information is provided in the Software User's Manual.
— 3 —
4
5
8
9
4-wire
2-wire
RS-485
RS-485
---
---
GND
GND
---
---
---
---
---
---
