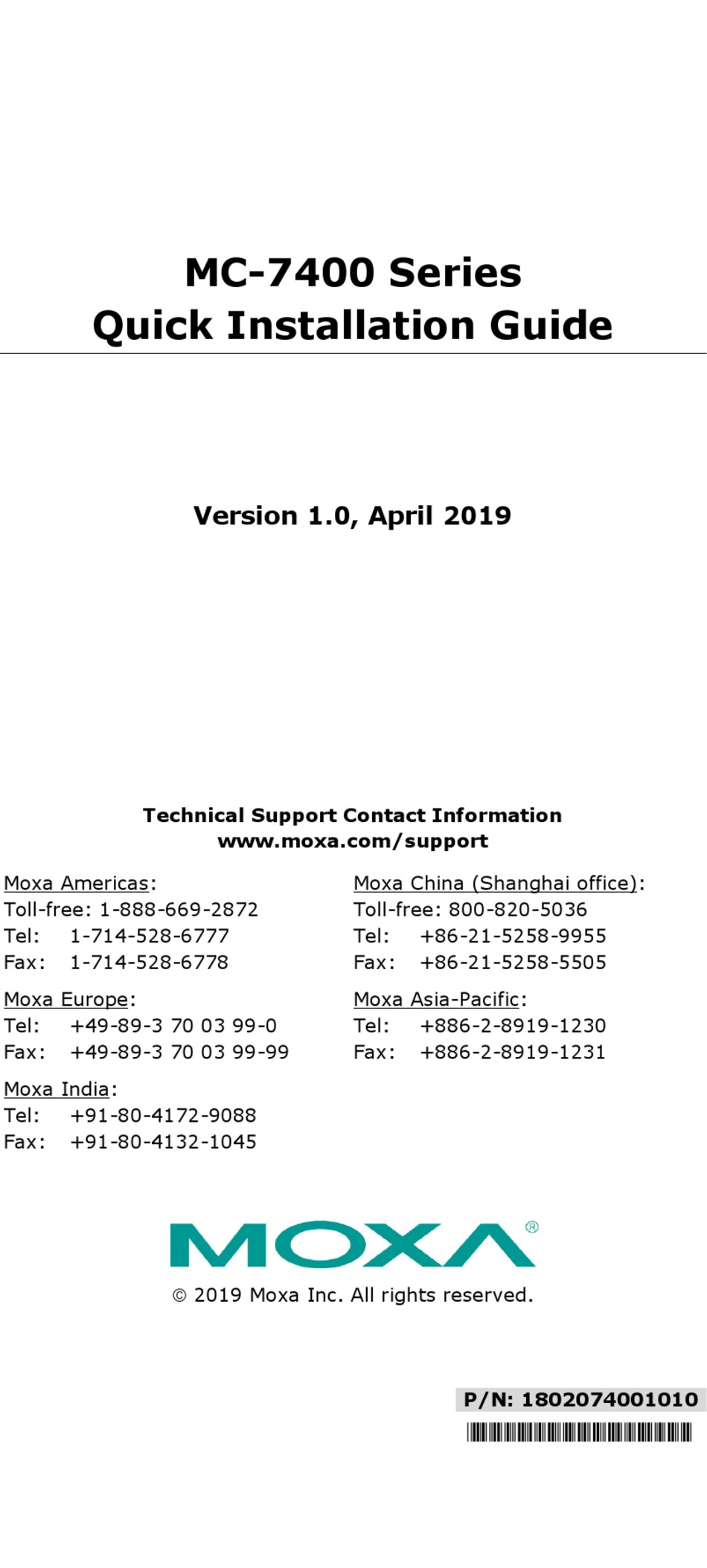

- Page 1 MC-7400 Series Quick Installation Guide Version 1.0, April 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

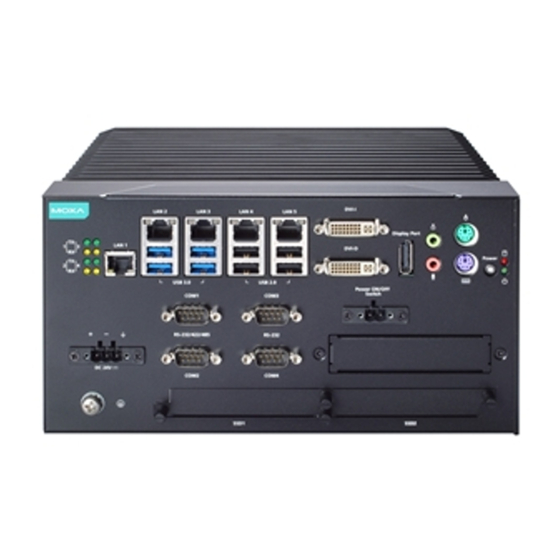

- Page 2 Overview The MC-7400 box computer is powered by the 6 generation Intel Core™ i processor, delivering a full range of I/O connectivity, including serial ports, Gigabit Ethernet ports, NMEA 0183 ports, USB 2.0/3.0 ports, and a Mini PCI slot for storage expansion. The MC-7400 is designed to provide outstanding PC performance, bringing a new level of flexibility and control to marine applications.
- Page 3 MC-7420 AC Model Panel Layout MC-7420 DC Model Panel Layout LED Indicators The following table describes the LED indicators located on the front panel of the MC-7400: Real-time Clock The embedded computer’s real-time clock is powered by a lithium battery. We strongly recommend that you do NOT replace the lithium battery yourself.
- Page 4 ATTENTION Used batteries are environmentally hazardous; dispose of them in the proper manner. WARNING There is a risk of explosion if the wrong type of battery is used. To avoid this potential danger, be sure to use the correct type of battery.
- Page 5 STEP 2: Use two screws (Ø3.7 mm, 60 mm in length) per side to attach the MC-7400 to a wall or cabinet. Connector Description Power Connector The MC-7400 comes with a 100 to 240 VAC power input or a 24 VDC power input (via the terminal block).
- Page 6 Ethernet Ports The 10/100/1000 Mbps Ethernet ports use RJ45 connectors. 10/100 Mbps 1000 Mbps ETx+ TRD(0)+ ETx- TRD(0)- ERx+ TRD(1)+ – TRD(2)+ – TRD(2)- ERx- TRD(1)- – TRD(3)+ – TRD(3)- Serial Ports The serial ports use DB9 connectors. Each port can be configured by software for RS-232, RS-422, or RS-485 port.
- Page 7 Power ON/OFF Switch The MC-7400 comes with a power ON/OFF switch on the front panel. You can use the 2-pin terminal block on the power ON/OFF switch to boot up a computer installed inside a marine console. USB Hosts The MC-7400 has five USB 2.0 and four SuperSpeed USB 3.0 type A ports and support xHCI/ EHCI mode for full high-speed bandwidth.
