AWK-4252A Series
Quick Installation Guide
Moxa AirWorks
Technical Support Contact Information
www.moxa.com/support
© 2022 Moxa Inc. All rights reserved.
P/N:
*1802032520012*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWK-4252A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Moxa Technologies AWK-4252A Series

Summary of Contents for Moxa Technologies AWK-4252A Series

  • Page 1 AWK-4252A Series Quick Installation Guide Moxa AirWorks Technical Support Contact Information www.moxa.com/support © 2022 Moxa Inc. All rights reserved. P/N: *1802032520012*...

  • Page 2: Hardware Setup

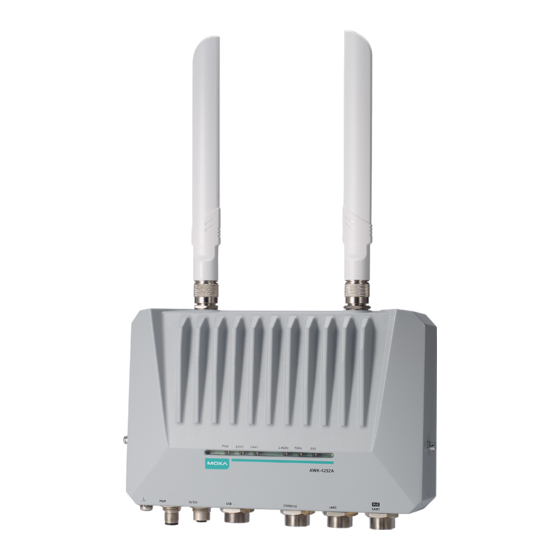

    Overview The AWK-4252A Series is an industrial-grade AP/bridge/client with IEEE 802.11ac Wave 2 technology. This Series features concurrent dual-band Wi-Fi data transmissions up to 400 Mbps (2.4 GHz mode) and 867 Mbps (5 GHz mode) simultaneously, meeting the speed and flexibility requirements for industrial applications.
  • Page 3 Panel Layout of the AWK-4252A 1. Antenna connector 2 2. Antenna connector 1 3. System LEDs: PWR, LAN2, LAN1, 2.4GHz, 5 GHz, SYS 4. Grounding screw (MS5) 5. Power connector (5 pin M12 A-coded male) 6. Digital IO connector (8 pin M12 A coded female) 7.

  • Page 4: Mounting Dimensions

    Mounting Dimensions Wall Mounting For some applications, it may be more convenient to mount the AWK- 4252A to a wall, as illustrated below. STEP 1: Align the wall-mounting plates to the wall-mounting screw holes on the rear panel, then attach the wall- mounting plates with the M5 screws, as shown in the adjacent diagrams.

  • Page 5: Din-Rail Mounting (Optional)

    Do not drive the screws in all the way—leave a space of about 2 mm to allow room for sliding the wall-mounting panel between the wall and the screws. NOTE Test the screw head and shank size by inserting the screws into one of the keyhole shaped apertures of the wall-mounting plates before they are fixed to the wall.

  • Page 6: Wiring Requirements

    To remove the AWK-4252A from the DIN rail, do the following: STEP 1: Pull down the latch on the DIN-rail kit with a screwdriver. STEP 2 & 3: Slightly pull the AWK-4252A forward and lift it up to remove it from the mounting rail.
  • Page 7 NOTE Do not run signal or communications wiring and power wiring in the same wire conduit. To avoid interference, wires with different signal characteristics should be routed separately. • You can use the type of signal transmitted through a wire to determine which wires should be kept separate.
  • Page 8 ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. The potential difference between any two grounding points must be zero. If the potential difference is NOT zero, the product could be permanently damaged.
  • Page 9 NOTE Before connecting the AWK-4252A DC power inputs, make sure the DC power source voltage is stable. • The wiring for the input terminal block shall be installed by a skilled person. • Wire type: Cu • Only use 16-28 AWG wire size. •...

  • Page 10: Communication Connections

    Communication Connections 10/100/1000BaseT(X) Ethernet Port Connection The 10/100/1000BaseT(X) ports located on the AWK-4252A’s front panel are used to connect to Ethernet-enabled devices. MDI/MDI-X Port Pinouts 1000BaseT 10/100BaseT 10/100BaseT MDI/MDI-X MDI-X TRD(0)+ TRD(0)– TRD(1)+ TRD(2)+ – – TRD(2)- – – TRD(1)- TRD(3)+ –...
  • Page 11 Installation STEP 1: Attach the gasket ① to the housing ③ STEP 2: Insert the cable (e.g., CAT5e) through the clamp ring ④, screw nut ②, seal ⑤ and housing ③, as follows: STEP 3: Crimp the modular RJ plug to the cable. Note that the use of a snagless cover shield or a strain-relief boot is not recommended here.

  • Page 12: Led Indicators

    LED Indicators The front panel of the AWK-4252A contains several LED indicators. The function of each LED is described in the table below: Color State Description Front Panel LED Indicators (System) Power is being supplied from power input 1, 2, or PoE. PWR1 Green Power is not being supplied.

  • Page 13: Specifications

    Specifications Input Current 12-48 VDC, 2.2-0.5 A Input Voltage 12 to 48 VDC, redundant dual power inputs, 48 VDC Power over Ethernet Power Consumption 28 W (max.) Operating Temperature Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) NOTE To meet the standard for IP68 protection, all unused ports should be covered with the protective caps.

  • Page 14: Software Setup

    NOTE For installation flexibility, you can use either antenna 1 or antenna 2. Make sure the antenna connection matches the antennas configured in the AWK-4252A web interface. To protect the connectors and RF module, all radio ports should be terminated by either an antenna or a terminator. We strongly recommend using resistive terminators for terminating the unused antenna ports.
  • Page 15 • Step 4: Access the homepage of the AWK. Open your computer’s web browser and type https://192.168.127.253 in the address field to access the AWK’s homepage. If successfully connected, the AWK’s interface homepage will appear. Click NEXT. • Step 5: Choose your country or region. Select your country or region from the drop-down list and click NEXT.
  • Page 16 • Step 6: Create a user account and password. Enter the username, password, and email address for your user account and click CREATE. NOTE The username and password are case-sensitive. After creating your account, you will be automatically redirected to the login screen.

  • Page 17: First-Time Quick Configuration

    • Step 7: Log in to the device. Enter your username and password and click LOG IN. The device will start initializing, this may take several seconds. Once the warning message has disappeared, you can log in using your username and password. First-time Quick Configuration After successfully accessing the AWK, refer to the appropriate subsection below to quickly set up a wireless network.
  • Page 18 Configuring the AWK as an AP • Step 1: Set the operation mode of the AWK to AP mode. Go to Wi-Fi → Wireless Settings and select AP from the Operation Mode drop-down list. • Step 2: Set up the AWK as an AP. Click the ADD icon to create a new SSID.
  • Page 19 On the second SSID Settings screen, configure the SSID Broadcast Status and Security type. From here, you can also copy the configuration over to the second SSID. When finished, click CONFIRM. Configuring the AWK as a Client • Step 1: Set the operation mode of the AWK to Client mode. Go to Wi-Fi →...
  • Page 20 Master/slave Mode Configuring the AWK as a Master • Step 1: Set the operation mode of the AWK to Master mode. Go to Wi-Fi → Wireless Settings and select Master from the Operation Mode drop-down list. • Step 2: Set up the AWK as a Master. Click the ADD icon to create a new SSID.
  • Page 21 On the settings page, configure the SSID Status, Master/AP (select Master),SSID, RF Band, RTS/CTS Threshold, and Transmission Rate for the 5 GHz or 2.4 GHz band. When finished, click NEXT. On the second SSID Settings screen, configure the SSID Broadcast Status and Security type. From here, you can also copy the configuration over to the second SSID.
  • Page 22 Configuring the AWK as a Slave • Step 1: Set the operation mode of the AWK to Slave mode. Go to Wi-Fi → Wireless Settings and select Slave from the Operation Mode drop-down list, set the SSID, and click Apply. For more detailed configurations, refer to the AWK-4252A User’s Manual.

  • Page 23: Fcc/Ic Statements

    Certifications FCC/IC Statements Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 24 Canada, Innovation, Science and Economic Development Canada (ISED) Notices This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 25 Caution: i.) the device for operation in the band 5250–5350 MHz is "for indoor use only". Mise en garde: i.) le dispositif destiné à fonctionner dans la bande 5250–5350 MHz est "pour usage intérieur uniquement". The user manual for LE-LAN devices shall contain instructions related to the restrictions mentioned in the above sections, namely that: i.
