Assembly - Positioning the Log Ceramics
The ceramic logs have location points on them that will help you locate them in
the correct position. Please read the following instructions carefully and use the
diagrams to assist you.
Stage One
Position the largest ceramic on top of the burner and push it firmly against the
rear of the stove. Ensure that it is central about the burner.
Stage Two

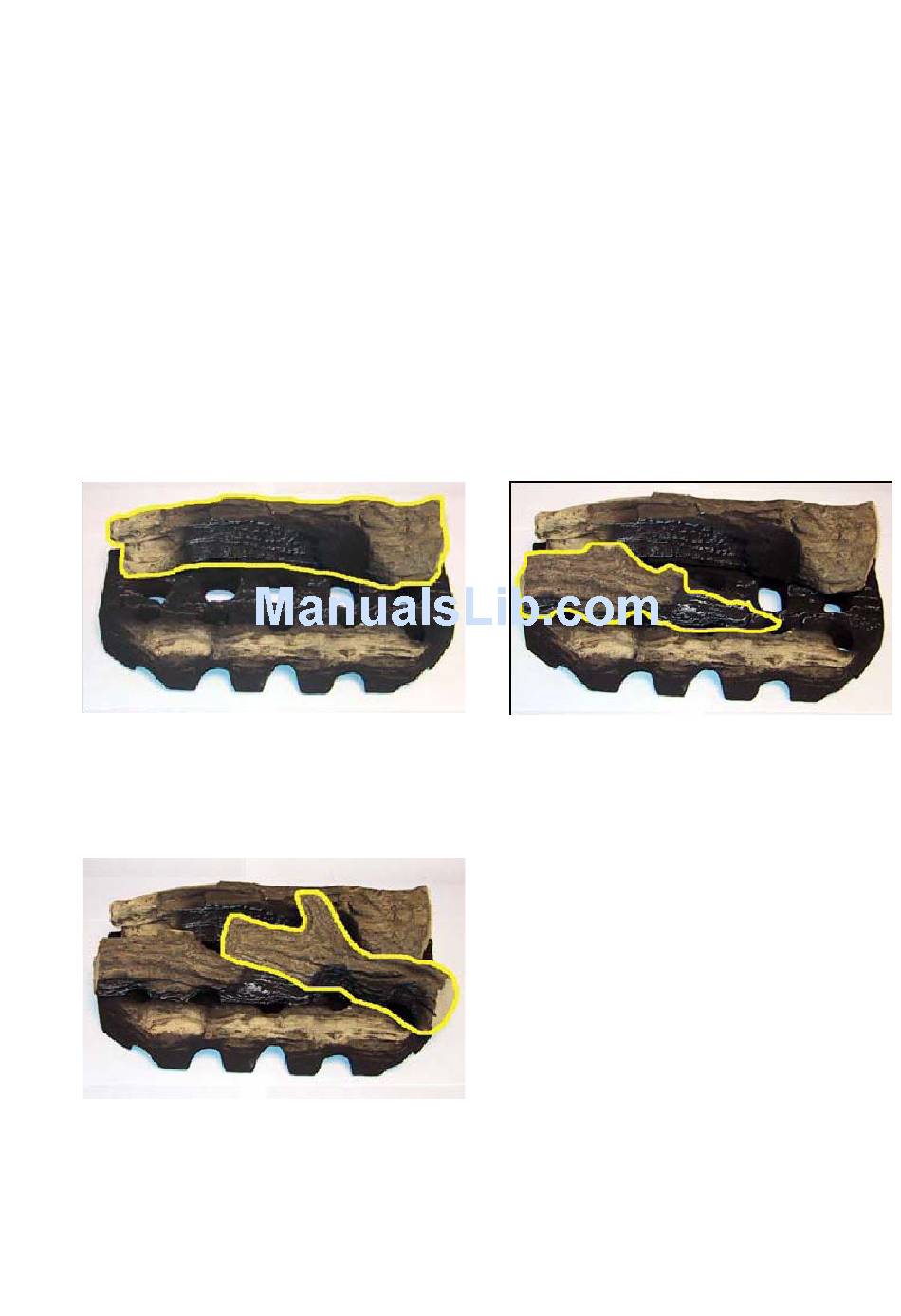

Position the rear log onto the two location
lugs towards the rear of the base ceramic
as shown in the diagram.
Stage 4
This log is located on a lug that has been formed on top of the previous log.
Locate this lug first, the other end of the log is a notched out section in the base
ceramic.
Finally, close the stove door and wind on the M6 x 18 hex bolt back onto the door
fixing bolt, slide the handle over the nut and using the Allen key supplied tighten
200707_3
the grub screw onto the nut.
