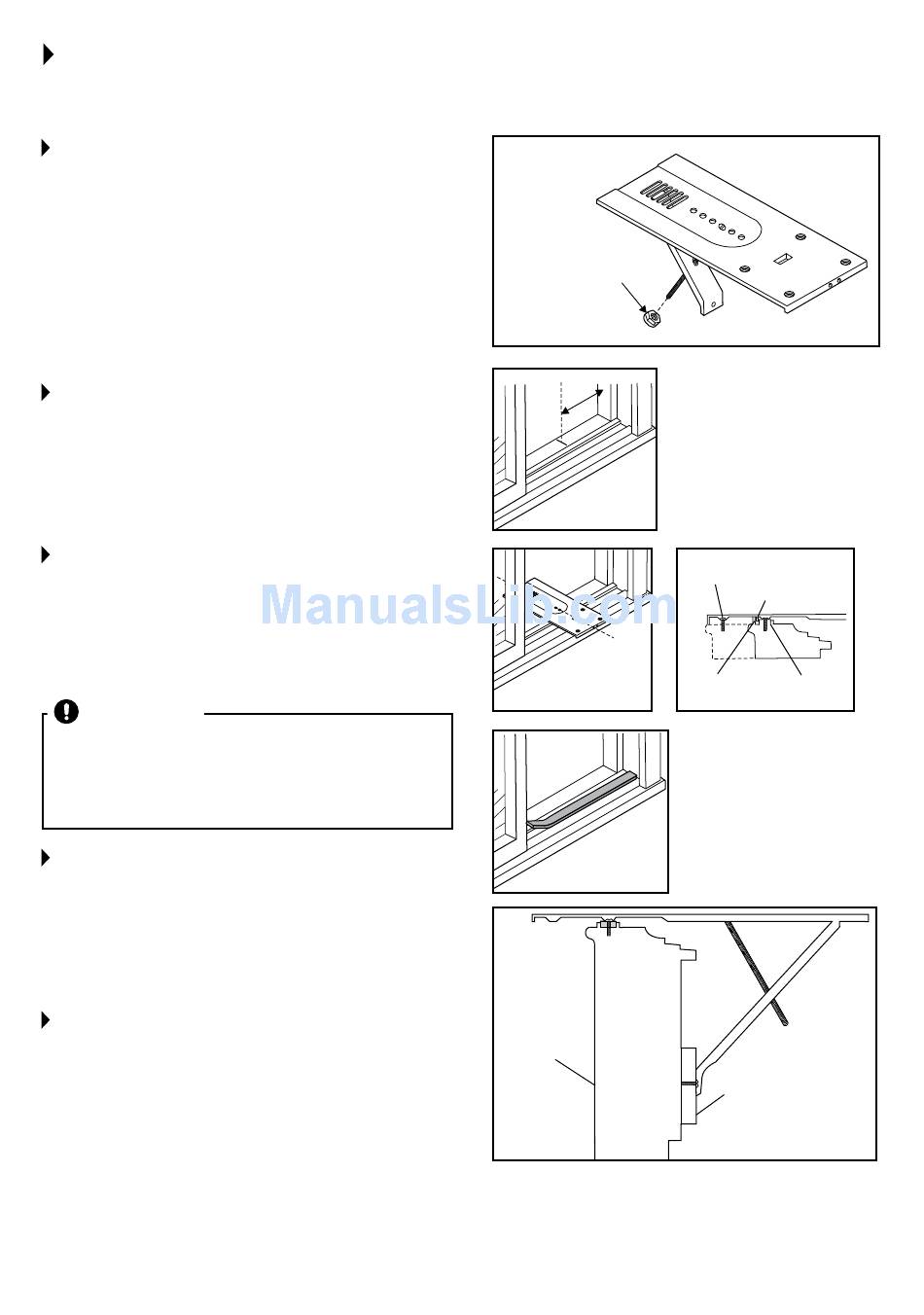

INSTALLING UNIT IN A SLIDING WINDOW

STEP 1:
ATTACH SUPPORT BRACE TO PLATFORM
Use adjustment bolt and hex flange nut to complete
assembly. Choose slot and adjustment bolt hole locations
that will create a 45 degree angle between platform and
support brace. Try assembly in the window to determine
if platform will rest properly, and allow proper slope. (
lower on outside). (Fig. 1)
NOTE: If you are planning to use a sliding-protection board
(See Step 5) on the outside of your house, hold board in
place when testing assembly of window.
STEP 2:
MEASURE, AND LIGHTLY MARK A LINE
8 / " FROM WINDOW JAMB.
11
16
NOTE: If any sash stop protrudes more than 1" from the
side window jambs, the 8
increased accordingly. Screen and storm window frames
may also require adjustments to the measurement. (Fig. 2)
STEP 3:
CENTER PLATFORM ASSEMBLY.
Center the platform assembly on the line with inside
platform tab pressed against inside edge of window track.
Using the holes in the platform as a guide, mark and drill
two 9 / " diameter holes. Drill holes in either track or stool.
64
(Fig. 3 & Fig. 4)
CAUTION
Property Damage Hazard-Failure to adhere to the
following precaution could result in damage to window
or air conditioner. Be sure wood stool or window track
is securely attached to the building construction. Use
longer screws in sub-framing if necessary.
STEP 4:
PEEL OFF PROTECTIVE BACKING FROM
TRACK SEAL.
Next, apply seal to room side of window track. Center of
seal strip should coincide with the line marked in Step 2.
The two screw holes drilled in Step 3 should be directly
above seal strip in the inner track. (Fig. 5)
STEP 5:
SECURELY ATTACH A SIDING-PROTEC-
TION BOARD TO SIDE OF HOUSE.
NOTE: Siding-protection board should be long enough to
span 2 wall studs.
NOTE: Adjust the platform assembly so that the air
conditioner will be 1⅛" to 1½" lower than the front (tilted
about 3º to 4º downward to the outside). After proper
installation, condensation should not drain from the
overflow drain hole during normal use. (You may see
condensation in periods of high humidity. However, if
condensation occurs during low or normal humidity, adjust
the slope slightly.) (Fig. 6)
11 / " measurement must be
16
Fig. 1
¼ in. (6mm)
/ "
5
16
HEX FLANGE NUT
8 / inches
11
16
Center platform
assembly on the
line with platform
tab pressed against
Fig. 3
window track.
Fig. 5
Inside wall
of house
Fig. 6
Platform Assembly
Fig. 2
Alternate screw location
(depending on the stool depth)
Window track
Fig. 4
Apply track seal
to window side
of track.
Siding-protection
Platform tab
Window seal
board
6
