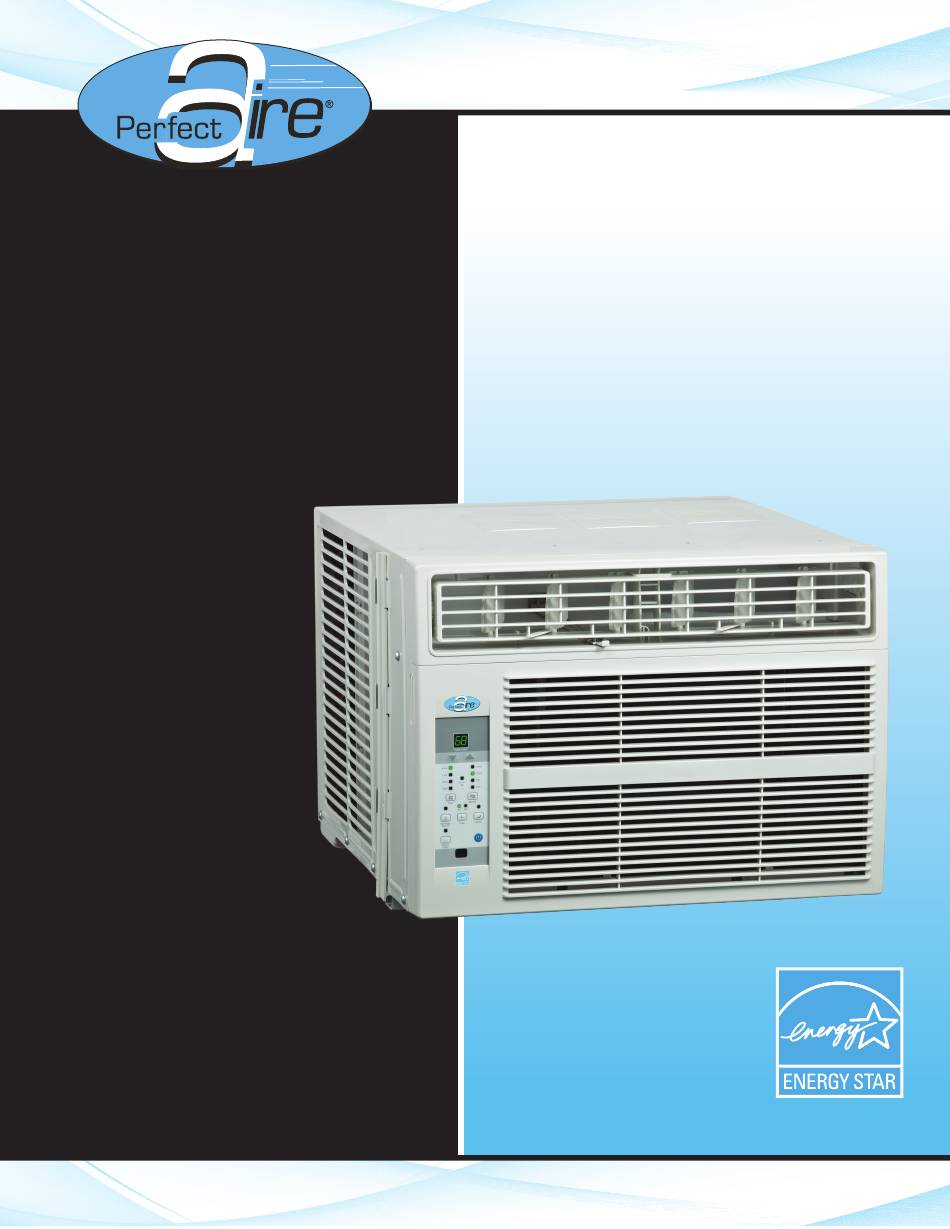

- Page 1 Your Source for Home Comfort 6,000, 8,000, 10,000 & 12,000 BTU WINDOW AIR CONDITIONER USER MANUAL FOR MODELS: 3PAC6000 3PAC8000 3PAC10000 3PAC12000 3PAC12002 Before using your window air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
-
Page 2: Table Of Contents
CONTENTS CONTENTS SAFETY PRECAUTIONS ................. 2–3 IMPORTANT SAFETY INSTRUCTIONS ...............4 NORMAL SOUNDS ....................5 AIR CONDITIONER FEATURES..............5–9 INSTALLATION INSTRUCTIONS ..............10–13 CARE AND CLEANING..................14 TROUBLESHOOTING TIPS ................15 This manual provides the information needed for proper use and maintenance of this air conditioner. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury. - Page 4 SAFETY PRECAUTIONS (CONTINUED) ! CAUTION When removing air filter, do not Ensure proper ventilation touch metal parts of the unit. especially in rooms with a stove or other appliances. Doing so may cause an injury. Water may enter the unit and Failure to do so may result in an degrade the insulation causing an oxygen shortage.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS For Your Safety WARNING! NOTE The power supply cord with this air conditioner contains a current DO NOT store or use gasoline or other flammable vapors or liquids in detection device designed to reduce the vicinity of this or any other appliance. the risk of fire. -
Page 6: Normal Sounds
NORMAL SOUNDS High Pitched Chatter Vibration High efficiency compressors Unit may vibrate and make noise may have a high pitched chatter because of poor wall or window during the cooling cycle. construction or incorrect installation. This DOES NOT indicate a defective unit. - Page 7 TEMP/TIMER AIR CONDITIONER FEATURES (CONTINUED) Auto Auto Cool NOTE: The following instructions represent the Unit Controls, the same instructions can be used Follow Me for the Remote Control . High Mode TO TURN UNIT ON: NOTE: The unit will automatically initiate the Energy Saver function under “Cool,”...
- Page 8 AIR CONDITIONER FEATURES (CONTINUED) TO SELECT THE NOTE: MODE button To choose operating mode, press the “Mode” button. OPERATING MODE: Each time you press the button, a mode is selected in a sequence that goes from “Auto,” “Cool,” “Dry,” and “Fan.” The indicator light will be illuminated and Auto Auto DO THIS:...
- Page 9 AIR CONDITIONER FEATURES (CONTINUED) TIMER: AUTO START/ STOP FEATURE: NOTE: TIMER button DO THIS: First press the “Timer” button. The indicator light Press “Timer” beside the word “On” will illuminate indicating the Auto Mode button Start program is on. Press or hold the Up or Down Temp/Timer arrows to change the Auto time by 0.5 hour increments, up to 10 hours, Energy Timer...
- Page 10 AIR CONDITIONER FEATURES (CONTINUED) NOTE: DISPLAYS DISPLAYS: The display shows the set temperature in “°C” or “°F” and Displays the Auto-timer settings. While on “Fan” only mode, it shows TEMP/TIMER the room temperature. Error Codes: AS - Room temperature sensor error - Unplug the unit and plug it back in.
-
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN CAUTION Read these instructions completely Do not, under any circumstances, cut or and carefully. remove the third (ground) prong from the power cord. IMPORTANT- Save these instructions. Do not change the plug on the power cord IMPORTANT- Observe all of the air conditioner. - Page 12 INSTALLATION INSTRUCTIONS (CONTINUED) PREPARE THE WINDOW C: Align the hole in the top rail with those in the Lower sash must open sufficiently to allow a clear top of the unit as shown in Fig.B vertical opening (H) of the following size. (See Table 1 below.) Side louvers and the rear of the AC Fig.B must have clear air space to allow enough airflow...
- Page 13 INSTALLATION INSTRUCTIONS (CONTINUED) B. Slide the free end "｢" section of the panel SECURE THE ACCORDION PANELS directly into the cabinet as shown in Fig. 2. Slide the panel down. Be sure to leave A. Keeping a firm grip on the air conditioner, enough space to slip the top and bottom of carefully place the unit into the window opening so the frame into the rails on the cabinet.
- Page 14 INSTALLATION INSTRUCTIONS (CONTINUED) B. Drive 3/4" (19 mm) or 1/2" (12.7 mm) If AC is Blocked by Stor m Window locking screws through frame holes into window sash (Fig. 8). Add wood as shown in Fig.11, or remove storm window before air conditioner is installed. If storm window frame must remain, be sure the drain holes or slots are not caulked or painted shut.
-
Page 15: Care And Cleaning
CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be cleaned at least every two weeks or as necessary. -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please review the chart below. Issue Possible Solutions • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. - Page 17 Your Source for Home Comfort Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 877-365-6274 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in China...
