Perfect Aire 3PASC10000 User Manual

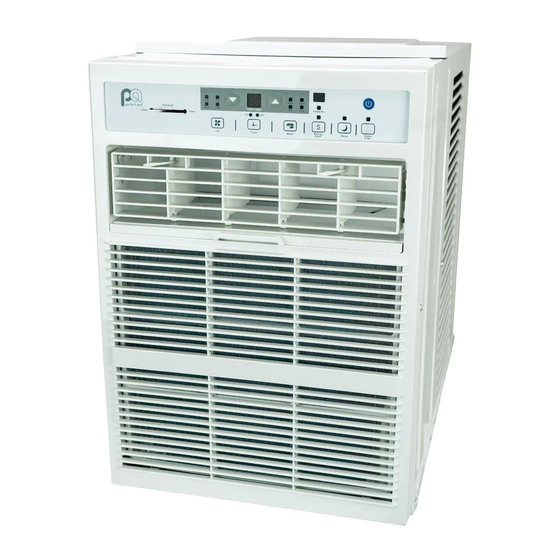

Window air conditioner
Hide thumbs Also See for 3PASC10000:

Advertisement

Table of Contents

USER MANUAL
FOR MODEL:
3PASC10000
WINDOW

AIR CONDITIONER

Before using your air conditioner, please
read this manual carefully and keep it for
future reference, along with your receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3PASC10000 and is the answer not in the manual?

Questions and answers

Related Manuals for Perfect Aire 3PASC10000

Summary of Contents for Perfect Aire 3PASC10000

  • Page 1: Air Conditioner

    WINDOW AIR CONDITIONER USER MANUAL FOR MODEL: 3PASC10000 Before using your air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
  • Page 2 CONSUMER PRODUCT INFORMATION For your own records, please attach a copy of your sales receipt to this manual and complete the following: Model Number: _____________________________________ Serial Number: _______________________________________ Purchase Date: ____________________________________ Store Purchased: _____________________________________ Installation Date: ___________________________________ Installation Co.: _______________________________________ Installer Name: _____________________________________ Installer Phone No.: ___________________________________...

  • Page 3: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ..............1 IMPORTANT SAFETY INSTRUCTIONS ...........3 INSTALLATION INSTRUCTIONS .............4 INSTALLING UNIT IN A SLIDING WINDOW .......6 INSTALLING UNIT IN A CASEMENT WINDOW ....9 NORMAL SOUNDS ................12 AIR CONDITIONER FEATURES ............12 CARE AND CLEANING ..............15 TROUBLESHOOTING ...............16 This manual provides the information needed for proper use and maintenance of this air conditioner.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR OTHER PROPERTY.
  • Page 5 CAUTIONS When removing air filter, DO NOT touch metal parts of Doing so may cause an injury.  the unit. DO NOT clean with water. Water may enter the unit and degrade the insulation,  causing an electric shock. Ensure proper ventilation, especially in rooms with a Failure to do so may result in an oxygen shortage. ...

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS NOTE : WARNING FOR YOUR SAFETY: Do not store or use gasoline or other flammable The power supply cord with this air vapors and liquids in the vicinity of this or any other appliances. conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section WARNING - PREVENT ACCIDENTS “Operation of Current Device” (below) To reduce the risk of fire, electrical shock, or injury to persons when using for details. In the event that the power your air conditioner, follow basic precautions, including the following: supply cord is damaged, it cannot be ● Be sure the electrical service is adequate for the model you have repaired.

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS NOTE: These instructions describe installation in a typical wood framed window with a wood SLIDE-BY sash, or installation in a metal CASEMENT window. Modification may be necessary when installing in windows made differently than those shown in these instructions. BEFORE YOU BEGIN Skill level- Installation of this appliance requires basic mechanical skills. Read these instructions completely and carefully. Completion time- Approximately 1 hour. IMPORTANT- Save these instructions. We recommend that two people install this product. IMPORTANT- Observe all governing codes and ordinances.
  • Page 8 NOTE: Use scale below to measure length of your screws The scale will be helpful when separating screws for installation. (25mm) (44mm) (63mm) Identify Screws 1” 1 3/4” 2 1/2” By Length 3/8” 3/4” (10mm) (19mm) STEP 2: CHOOSE PROPER SIZED WINDOW, AS SHOWN TO THE RIGHT.

  • Page 9: Installing Unit In A Sliding Window

    INSTALLING UNIT IN A SLIDING WINDOW STEP 1: Fig. 1 Platform Assembly ATTACH SUPPORT BRACE TO PLATFORM Use adjustment bolt and hex flange nut to complete assembly. Choose slot and adjustment bolt hole locations that will create a 45 degree angle between platform and support brace. Try assembly in the window to determine ¼ in. (6mm) if platform will rest properly, and allow proper slope. ( " HEX FLANGE NUT lower on outside). (Fig. 1) NOTE: If you are planning to use a sliding-protection board (See Step 5) on the outside of your house, hold board in place when testing assembly of window.
  • Page 10 INSTALLING UNIT IN A SLIDING WINDOW (CONT.) STEP 6: Measure from here approx. 1" to 1¼" PLACE PLATFORM ASSEMBLY With platform tab against inside of window track, place platform assembly and attach it to window jamb. Use appropriate length screws (Items 9 –11 in Preparing For platform Installation on pg. 4). (Fig. 7) tab against inside of STEP 7: track. ADJUST PLATFORM ASSEMBLY Fig. 7 Adjust the platform assembly so that the outside edge is inches lower than inside edge. (Fig. 7) This ensures proper water drainage from the air conditioner. STEP 8: LEVEL PLATFORM ASSEMBLY FROM SIDE-TO-SIDE...
  • Page 11 INSTALLING UNIT IN A SLIDING WINDOW (CONT.) STEP 14: Fig. 12 TO REMOVE FRONT 1. Remove the two front retaining screws from the front frame. (Fig 12) 2. Gently pull the front out and lift up to release it from the case. 3. Release the control board plug. (Fig. 12) NOTE: DO NOT push or pull air direction louvers.

  • Page 12: Installing Unit In A Casement Window

    INSTALLING UNIT IN A CASEMENT WINDOW NOTE: Open the window the maximum amount to allow for clearance of the cabinet. The crank handle should be removed to allow the platform to be fastened to the jamb. If the window cannot open far enough (more than 15½ inches) for the cabinet to clear the window, remove the window entirely by drilling out the rivets. Bolts can serve as the rivets in the future. To avoid crank handle and window clearance problems, the unit can be installed in a stationary sash section. However, the horizontal mullion and the 2 glass panels must be removed before installation.
  • Page 13 INSTALLING UNIT IN A CASEMENT WINDOW (CONT.) STEP 5: Measure from here approx. 1⅛" to 1½" ADJUST PLATFORM ASSEMBLY PROPERLY Adjust the platform assembly so that the rear of the air conditioner is inches lower than the front. This ensures proper water drainage from the air conditioner. (Fig. 5) NOTE: Adjust the platform assembly so that the air conditioner will be 1⅛" to 1½" lower than the front (tilted about 3º to 4º downward to the outside). After proper installation, condensation should not drain from the overflow drain hole during normal Fig. 5 use. (You may see condensation in periods of high humidity. However, if condensation occurs during low or normal humidity, Fasten adjust the slope slightly.) sliding-...
  • Page 14 INSTALLING UNIT IN A CASEMENT WINDOW (CONT.) STEP 12: Fig. 10 TO REMOVE FRONT: • Remove the two front retaining screws from the front frame. (Fig. 10) • Gently pull the front out and lift up to release it from the case. • Release the control board plug. (Fig. 10) NOTE: DO NOT push or pull air directional louvers. STEP 13: Front Retaining PLACE THE AIR CONDITIONER IN THE Screw WINDOW OPENING The air conditioner should sit on the platform assembly...

  • Page 15: Normal Sounds

    NORMAL SOUNDS HIGH PITCHED CHATTER High efficiency compressors VIBRATION may have a high pitched chatter Unit may vibrate and make during the cooling cycle. noise because of poor wall or window construction SOUND OF RUSHING AIR or incorrect installation. At the front of the unit, This DOES NOT indicate a the sound of rushing air defective unit.
  • Page 16 SLEEP FEATURE: DRY and FAN. The indicator light will be illuminated and remain on once the mode is selected. The unit Press the SLEEP button to initiate SLEEP will automatically initiate the Energy Saver function mode. In this mode, the selected temperature will under COOL, DRY, and AUTO (only AUTO-COOLING and increase by 2°F (1°C) 30 minutes after the mode is AUTO-FAN) modes.
  • Page 17 DISPLAY: ADDITIONAL THINGS YOU SHOULD KNOW: Shows the set temperature in °F or °C and the Auto- timer settings. While on FAN only mode, it shows the ● The Cool circuit has an automatic 3 minute time- room temperature. delayed start if the unit is turned off and on quickly. After unit is turned off, leave unit off for a minimum of 3 minutes before attempting to turn back on. Display This prevents overheating of the compressor Evaporator Temperature Sensor Error and possible circuit breaker tripping. The fan will TEMP/TIMER...

  • Page 18: Care And Cleaning

    CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. AIR FILTER CLEANING The air filter should be cleaned at least every two weeks or as necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils, reducing efficiency. ● Grasp the filter by the center and pull up and out. ● Wash the filter using liquid dish-washing detergent and warm water. Rinse filter thoroughly. ● Gently shake excess water from the filter. Be sure the filter is thoroughly dry before replacing. ● As an alternative to washing the filter, vacuum the filter clean. NOTE: Never use hot water over 104°F (40°C) to clean the air filter. Never attempt to operate the unit without the air filter. CABINET CLEANING ● Be sure to unplug the air conditioner to prevent shock or fire hazard.

  • Page 19: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. • Allow enough time for room to cool, especially if outside temp is very high. • Check that the filter is not dirty and louvers are open all the way and blowing in the desired direction. AIR CONDITIONER NOT • Check that unit is set to COOL mode and that temperature is down enough (but COOLING ROOM, OR NOT BLOWING not too low).
  • Page 20 Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User_3PASC10000/10162017 Specification and performance data is subject to change without notice. Printed in China...
