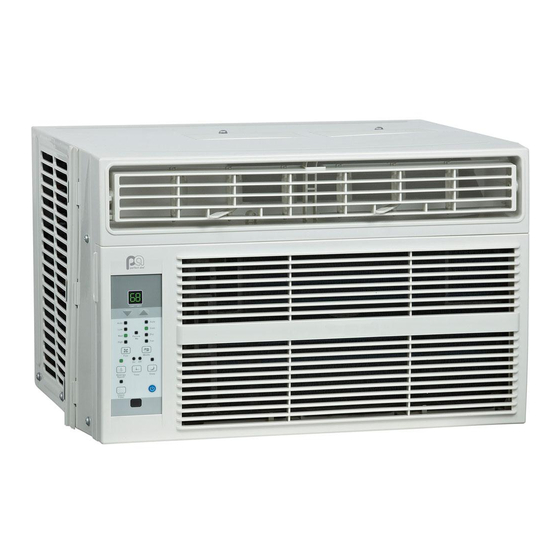

- Page 1 WINDOW AIR CONDITIONER USER MANUAL FOR MODEL: 3PNC6000 3PNC8000 3PNC10000 3PNC12000 Before using your air conditioner, please read this manual carefully and keep it for future reference, along with your receipt.
- Page 2 CONSUMER PRODUCT INFORMATION For your own records, please attach a copy of your sales receipt to this manual and complete the following: Model Number: _____________________________________ Serial Number: _______________________________________ Purchase Date: ____________________________________ Store Purchased: _____________________________________ Installation Date: ___________________________________ Installation Co.: _______________________________________ Installer Name: _____________________________________ Installer Phone No.: ___________________________________...
-
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..............1 IMPORTANT SAFETY INSTRUCTIONS ...........3 INSTALLATION INSTRUCTIONS .............4 NORMAL SOUNDS ................8 AIR CONDITIONER FEATURES ............8 CARE AND CLEANING ..............11 TROUBLESHOOTING ...............12 This manual provides the information needed for proper use and mainte- nance of this air conditioner. Basic preventative care can help extend the life of this unit. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS READ SAFETY PRECAUTIONS BEFORE INSTALLATION To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY. THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE MODERATE INJURY TO YOUR PERSON, OR DAMAGE TO YOUR UNIT OR OTHER PROPERTY. - Page 5 CAUTIONS When removing air filter, DO NOT touch metal parts of Doing so may cause an injury. the unit. DO NOT clean with water. Water may enter the unit and degrade the insulation causing an electric shock. Ensure proper ventilation especially in rooms with a Failure to do so may result in an oxygen shortage. ...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS NOTE : WARNING FOR YOUR SAFETY: Do not store or use gasoline or other flammable The power supply cord with this air vapors and liquids in the vicinity of this or any other appliances. conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section WARNING - PREVENT ACCIDENTS “Operation of Current Device” (below) for details. In the event that the power To reduce the risk of fire, electrical shock, or injury to persons when using supply cord is damaged, it cannot be your air conditioner, follow basic precautions, including the following: repaired. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION BEFORE YOU BEGIN Read these instructions completely and carefully. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. IMPORTANT- Save these instructions. Do not change the plug on the power cord of the IMPORTANT- Observe all governing codes air conditioner. - Page 8 STEP 1: the unit as shown in Fig. B. PREPARE THE WINDOW FIG. B Lower sash must open sufficiently to allow a clear vertical opening (H) of the following size. (See Table 1 below.) Side louvers and the rear of the AC must have clear air space to allow enough airflow through the condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage. D. Secure the top rail to the unit with the 3/8″ screws MOUNTING HARDWARE: as shown in Fig.
- Page 9 C. Once the panel has been installed on the side of B. Extend the accordion panels out against the the cabinet, make sure it sits securely inside the window frame (Fig. 6). frame channel by making slight adjustments. Slide the top and bottom ends of the frame into the top FIG. 6 and bottom rails of the cabinet. Fig. 3. Top Rail Window Frame FIG.
- Page 10 IF AC IS BLOCKED BY A C. To secure lower sash in place, attach right angle sash lock with 3/4″ (19 mm) or 1/2″ (12.7 mm) screw as STORM WINDOW shown (Fig. 9). Add wood as shown in Fig.11, or remove storm window before air conditioner is installed. If storm window frame must remain, be sure the drain holes or slots are not caulked or painted shut.
-
Page 11: Normal Sounds
NORMAL SOUNDS HIGH PITCHED CHATTER High efficiency compressors VIBRATION may have a high pitched chatter Unit may vibrate and make during the cooling cycle. noise because of poor wall or window construction or incorrect SOUND OF RUSHING AIR installation. This DOES NOT At the front of the unit, indicate a defective unit. the sound of rushing air being moved by the fan may be heard. - Page 12 SLEEP FEATURE: DRY and FAN. The indicator light will be illuminated and remain on once the mode is selected. The unit Press SLEEP button to initiate the SLEEP will automatically initiate the Energy Saver function mode. In this mode, the selected temperature will under COOL, DRY, and AUTO (only AUTO-COOLING and increase by 2°F (1°C) 30 minutes after the mode is AUTO-FAN) modes.
- Page 13 DISPLAY: ● The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert Shows the set temperature in °F or °C and the Auto- from one to the other, press and hold the Up and timer settings. While on FAN only mode, it shows the Down Temp/Timer buttons at the same time for room temperature.
-
Page 14: Care And Cleaning
CARE AND CLEANING CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. AIR FILTER CLEANING The air filter should be cleaned at least every two weeks or as necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils. ● Push the vent handle to the Vent Closed position (when applicable). ● Open the front panel. ● Grasp the filter by the center and pull up and out. ● Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly. ● Gently shake excess water from the filter. Be sure the filter is thoroughly dry before replacing. -
Page 15: Troubleshooting
TROUBLESHOOTING BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW ISSUE POSSIBLE CAUSES • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. • Allow enough time for room to cool, especially if outside temp is very high. • Check that the filter is not dirty and louvers are open all the way and blowing in the desired direction. AIR CONDITIONER NOT • Check that unit is set to COOL mode and that temperature is down enough (but COOLING ROOM, OR NOT BLOWING not too low). - Page 16 Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 844-4PA-AIRE | 844-472-2473 www.perfectaire.us PA/User_3PNC6000–3PNC12000/12212017 Specification and performance data is subject to change without notice. Printed in China...
