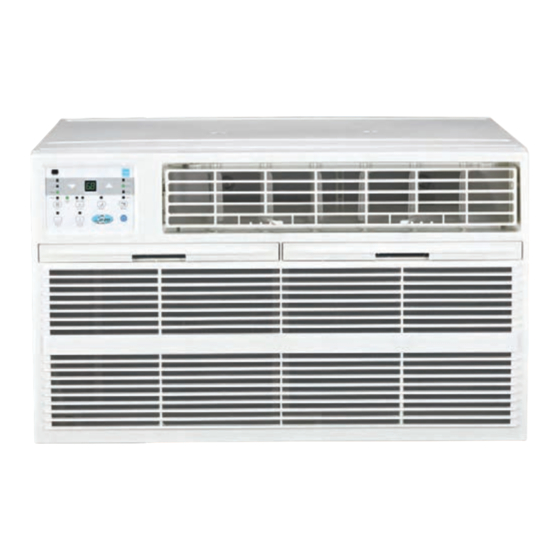

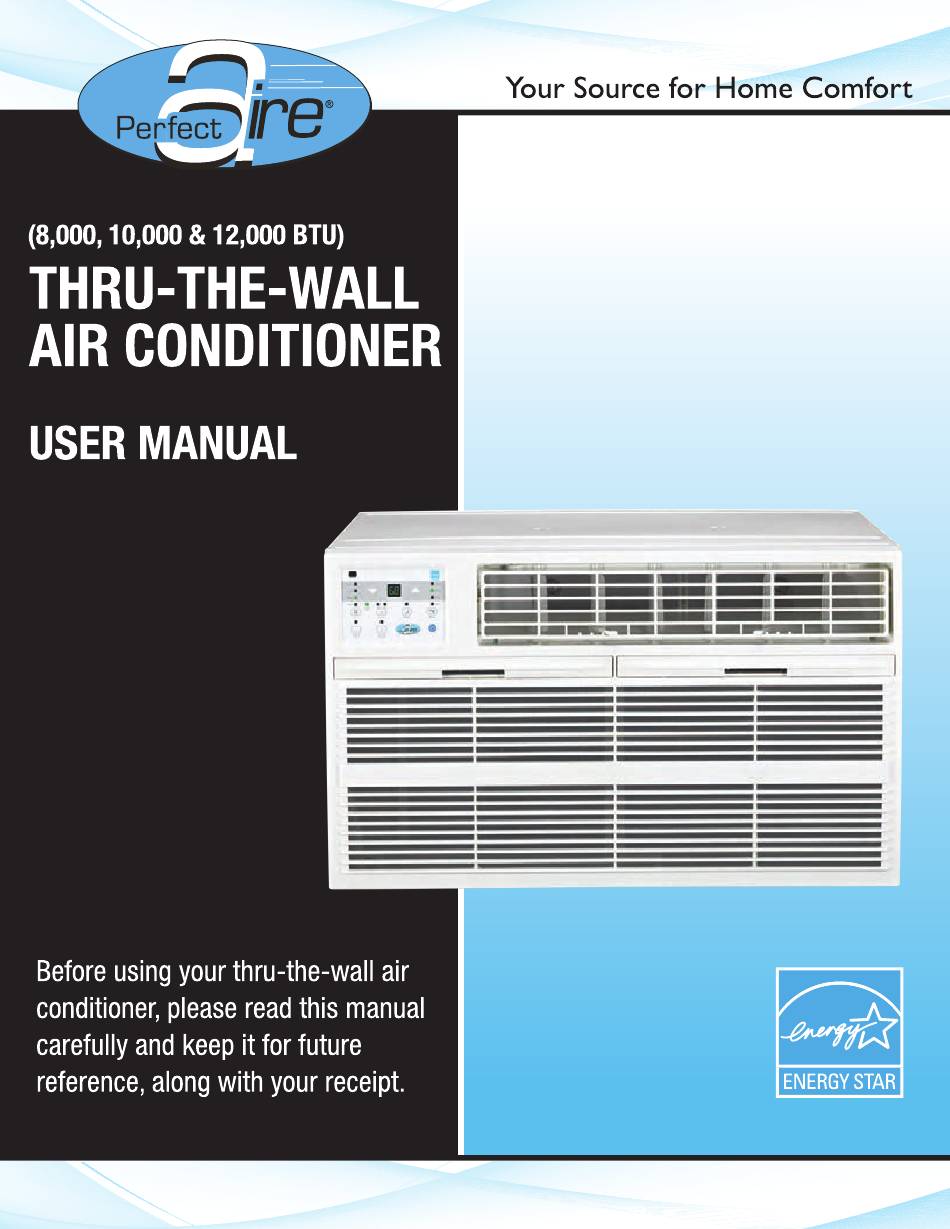

- Page 1 FOR MODELS: 3PATW8000 3PATW10000 3PATW10002 3PATW12000 3PATW12002...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..................2 IMPORTANT SAFETY INSTRUCTIONS ...............4 NORMAL SOUNDS ....................5 AIR CONDITIONER FEATURES................5 INSTALLATION INSTRUCTIONS .................8 CARE AND CLEANING..................22 TROUBLESHOOTING TIPS ................23 This manual provides the information needed for proper use and maintenance of this air conditioner. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury. - Page 4 ! CAUTION When removing air filter, do not Ensure proper ventilation touch metal parts of the unit. especially in rooms with a stove or other appliances. Doing so may cause an injury. Water may enter the unit and Failure to do so may result in an degrade the insulation causing an oxygen shortage.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS For Your Safety WARNING! NOTE The power supply cord with this air conditioner contains a current DO NOT store or use gasoline or other flammable vapors or liquids in detection device designed to reduce the vicinity of this or any other appliance. the risk of fire. -
Page 6: Normal Sounds
NORMAL SOUNDS High Pitched Chatter Vibration High efficiency compressors Unit may vibrate and make may have high pitched chatter noise because of poor wall or during the cooling cycle. window construction or incorrect installation. Sound of Rushing Air At the front of the unit you may hear the sound of rushing air being moved by the fan. - Page 7 AIR CONDITIONER FEATURES (CONTINUED) TO ADJUST THE FAN SPEED: TO SELECT THE OPERATING MODE: Press to select one of four fan speeds: “Auto,” To choose operating mode, press the Mode button. “Low,” “Med” or “High.” Each time the button is Each time you press the button, a mode is selected in a pressed, the fan speed mode is shifted.
- Page 8 AIR CONDITIONER FEATURES (CONTINUED) Shows the set temperature in “°C” or “°F” and the Auto- DISPLAYS timer settings. While on “Fan” only mode, it shows the room temperature. Displays Error Codes: AS - Room temperature sensor error - Unplug the unit and plug it back in.
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS DO THIS FIRST BEFORE YOU BEGIN (for existing sleeve) Note that the air conditioner dimensions are: Read these instructions completely 24.25 inches wide, 14.5 inches, and 18.5 inches and carefully. deep (without front). Install air conditioner according to these installation IMPORTANT- Save these instructions. - Page 10 How to Install 1. Identify the wall-sleeve brand for your installation, from the chart below. Wall Sleeve Dimensions Brand Width Height Depth Note: Perfect Aire, Frigidaire, Please verify dimensions ″ ″ , 17 White-Westinghouse, ″ ″ of your wall sleeve with ″...
- Page 11 #4 General Electric/Hotpoint ″ deep #5 Sears or Carrier (51S Series) 18 ″ deep #6 Whirlpool ″ deep #7 Whirlpool 23″ deep #8 Perfect Aire, Frigidaire 16″ & 17 ″ deep White-Westinghouse, Carrier (52F Series) #9 White-Westinghouse, 22″ deep Frigidaire 5.
- Page 12 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #1 Emerson • 15″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 13 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #2 Fedders • 19¾″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 14 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #3 Fedders or Friedrich • 16¾″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 15 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #4 General Electric or Hotpoint • 16 ″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 16 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #5 Sears or Carrier 51S Series • 18 ″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 17 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #6 Whirlpool • 17 ″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 18 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #7 Whirlpool • 23″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 19 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #8 Perfect Aire, White Westinghouse, Frigidaire, Carrier 52F Series • 16″ & 17½″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here.
- Page 20 INSTALLATION INSTRUCTIONS (CONTINUED) Wall Sleeve Brands: #9 White Westinghouse, Frigidaire • 22″ Deep 1. Remove existing rear grille as shown on page 11 of this manual and replace with provided louvered panel. Install as shown here. Note: You may need to drill holes in flange of existing sleeve to match new rear grille.
- Page 21 INSTALLATION INSTRUCTIONS (CONTINUED) Direct Unit Mounting The previous directions are the preferable way to mount the new rear grille. The unit’s performance is slightly better and the possibility of drafts is reduced. As a last resort, direct mounting of the grille to the unit can be considered.
- Page 22 INSTALLATION INSTRUCTIONS (CONTINUED) 1. Install the 1″ x 1½″ x 84″ long stuffer-seal between the wall-sleeve and the unit. A flat-bladed screwdriver or putty knife is recommended. 2. Assemble the trim frame by inserting top and bottom pieces into side pieces and snapping into place.
-
Page 23: Care And Cleaning
CARE AND CLEANING ! CAUTION Clean air conditioner occasionally to keep it looking and operating like new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Air Filter Cleaning The air filter should be cleaned at least every two weeks or as necessary. Right filter Left filter Trapped particles in the filter can build up and cause an accumulation of... -
Page 24: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please review the chart below. Issue Possible Solutions • Be sure unit is not too large or too small for the area of the room. • Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the front grille of unit, such as curtains, etc. - Page 25 Your Source for Home Comfort Distributed by: Perfect Aire, LLC 5151 Belt Line Rd. Suite 878 Dallas, TX 75254 877-365-6274 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in China...
