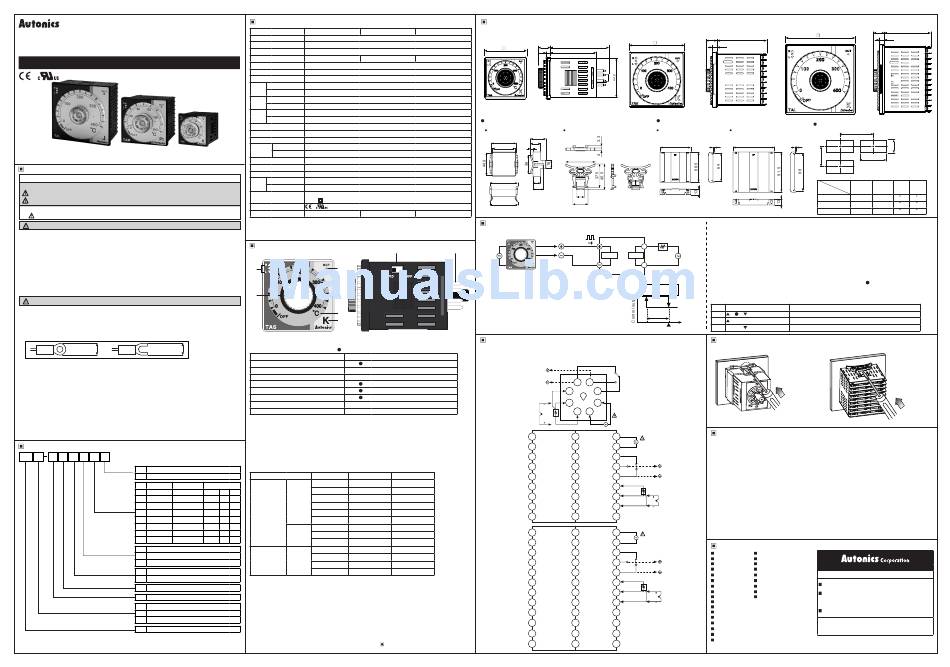

Autonics TAS series Manual

TEMPERATURE CONTROLLER
TAS/TAM/TAL SERIES
M A N U A L
Thank you very much for selecting Autonics products.
For your safety, please read the following before using.
Caution for your safety
※Please keep these instructions and review them before using this unit.
※Please observe the cautions that follow;
Warning
Serious injury may result if instructions are not followed.
Caution
Product may be damaged, or injury may result if instructions are not followed.
※The following is an explanation of the symbols used in the operation manual.
Caution: Injury or danger may occur under special conditions.
Warning
1. In case of using this unit with machinery(Ex: nuclear power control, medical equipment, ship, vehicle,
train, airplane, combustion apparatus, safety device, crime/disaster prevention equipment, etc) which
may cause damages to human life or property, it is required to install fail-safe device.
It may cause a fire, human injury or damage to property
2. It must be mounted on Panel.
It may give an electric shock.
3. Do not connect, inspect and repair terminals when it is power on.
It may give an electric shock.
4. Please check the number of terminal when connecting power or input.
It may cause a fire.
5. Do not disassemble or modify this unit, please contact us when it is required.
It may cause a fire and give an electric shock.
Caution
1. This unit shall not be used outdoors.
It might shorten the life cycle of the product or give an electric shock.
2. When wire connection, AWG 20(0.50mm²) should be used and screw bolt on terminal block with 0.74
to 0.90N·m strength.
It may result in malfunction or fire due to contact failure.
3. For crimpled terminal, select following shaped terminal.
Max. 5.8mm Max. 5.8mm
4. Please observe specification rating.
It might shorten the life cycle of the product and cause a fire.
5. Do not use the load beyond rated switching capacity of Relay contact.
It may cause insulation failure, contact melt, contact failure, relay broken, fire etc.
6. In cleaning the unit, do not use water or an oil-based detergent.
It might cause an electric shock or fire that will result in damage to the product.
7. Do not use this unit at place where there are flammable or explosive gas, humidity, direct ray of the
sun, radiant heat, vibration, impact etc.
It may cause a fire or explosion.
8. Do not inflow dust or wire dregs into inside of this unit.
It may cause a fire or mechanical trouble.
9. Please wire properly after checking the polarity of terminals when connect thermocouples.
It may cause a fire or explosion.
10. In order to install the units with reinforced insulation, use the power supply unit which basic
insulation level is ensured.
Ordering information
TA S B 4 R P 4 C
Unit C Celsius(℃)
F Fahrenheit(℉)
Celsius(℃) Fahrenheit(℉) Temperature sensor
0 -50 to 100 -58 to 212
Temperature
1 0 to 100 32 to 212
range
2 0 to 200 32 to 392
for each sensor
3 0 to 300 32 to 572
4 0 to 400 32 to 752
6 0 to 600 32 to 1,112
8 0 to 800 32 to 1,472
C 0 to 1,200 32 to 2,192
P DPt100Ω
Sensor input type
J J(IC)
K K(CA)
R Relay output
Control output
S SSR drive output
Power supply
4 100-240VAC 50/60Hz
Control method
B ON/OFF control & PID control combined
S DIN W48 x H48mm(8 pin plug type)
Size
M DIN W72 x H72mm
L
DIN W72 x H72mm
Item
TA Analog setting type temperature controller
※1: Socket(PG-08, PS-08) is sold separately.
※The above specifications are subject to change without notice.

Specification

Series TAS TAM
Power supply 100-240VAC 50/60Hz
Allowable voltage range 90 to 110% of rated voltage
Power consumption Max. 4VA
Size DIN W48 x H48mm DIN W72 x H72mm
Display method Deviation LED(red, green), Output LED(red)
Setting type Dial setting
Setting accuracy F.S. ±2% (room temperature 23℃ ±5℃)
RTD DPt 100Ω(allowable line resistance max. 5Ω per a wire)
Input
type
Thermocouples K(CA), J(IC)
ON/OFF Control Hysteresis: 2℃ Fixed
Control
PID Control Control period: Relay output 20 sec./SSR drive output 2 sec.
Control Relay 250VAC 3A 1c
output SSR Max. 12VDC±2V 20mA
Functions PV deviation indication, Error indication
Dielectric strength 2,000VAC 50/60Hz for 1minute(between input terminal and power terminal)
Vibration 0.75mm amplitude at frequency of 5 to 55Hz in each of X, Y, Z directions for 2hours
Mechanical Min. 10,000,000 operation(18,000 times/hr)
Relay life
cycle Electrical Min. 100,000 operation(900 times/hr)
Insulation resistance Min. 100MΩ(at 500VDC megger)
Noise strength Square shaped noise by noise simulator(pulse width 1㎲) ±2kV R-phase and S-phase
Memory retention Approx. 10 years (when using non-volatile semiconductor memory type)
Ambient temperature -10 to 50℃ , Storage: -20 to 60℃
Environ
-ment
Ambient humidity 35 to 85%RH, Storage: 35 to 85%RH
Double insulation or reinforced insulation
Insulation type
(mark: , dielectric strength between the measuring input part and the power part: 2kV)
Approval
Weight ※2 Approx. 112g(approx. 74g) Approx. 176g(approx. 114g) Approx. 237g(approx. 152g)
※1: <Except normal temperature range> Below 100℃ model is F.S. ±4%, Over 100℃ model is F.S. ±3%
※2: The weight is with packaging and the weight in parentheses is only unit weight.
※Environment resistance is rated at no freezing or condensation.

Front panel Identification

1 6
5
2
4
3

1. Deviation indicator

It shows deviation of present temperature(PV) based on set temperature(SV) by LED.
Input deviation indicator[Deviation indicator: (green), ▲/▼(red)]
PV deviation temperature Deviation indicator
Input sensor OPEN ▲ + + ▼ indicators flash(every 0.5 sec.)
Exceed max. input value ▲ indicator flashes(every 0.5 sec.)
More than 10℃ ▲ indicator turns ON
More than 2℃ to less than or equal to 10℃ ▲ + indicators turn ON
Less than or equal to ±2℃ indicator turns ON
More than -2℃ to less than or equal to -10℃ + ▼ indicators turn ON
More than -10℃ ▼ indicator turns ON
Less than min. input value ▼ indicator flashes(every 0.5 sec.)
※This is the same as Fahrenheit(℉).
When power is on, all indicators light for 2 sec., then all indicators turn off and control
operation starts.

2. Set temperature(SV) dial

Dial to change set temperature (SV). When changing set temperature, it is applied after 2 sec. for the stable
input.
3. Input sensor
Indicates sensor type of present value.
Input sensor type or input range each product is shown in the below table.
Input Sensor Range No. Input range(℃)
1 0 to 100
2 0 to 200
Pt - -
Pt - K 4 0 to 400
K(CA)
Pt J K 6 0 to 600
- J - Thermocouple 8 0 to 800
Pt J K
C 0 to 1,200
- - K
2 0 to 200
- - K
J(IC) 3 0 to 300
- - K
4 0 to 400
0 -50 to 100
1 0 to 100
RTD DPt100Ω
2 0 to 200
4 0 to 400
※Set temperature within input range each sensor.
4. Temperature unit
Indicates temperature unit(℃, ℉) of set temperature(SV) and present value(PV).
5. Temperature range
Indicates temperature range of set temperature(SV)
※1
6. Control output indicator
Turns ON when control output (Relay Output/SSR Output)
7. Control mode selection switch
Select PID control or ON/OFF control using switch.

8. Terminal block

Terminals for external connections. For more information, refer to '

Dimensions

1. TAS Series
TAL
14
48
5.2
DIN W96 x H96mm
※1
Bracket
TAS Series
31
□48.6
20
45
5
15
55
21
56
Functions

1. SSR drive output

SSR drive output
12VDC
7 8
Power
Temperature
controller

2. ON/OFF control

ON/OFF control function is for controlling temperature by comparing
present temperature(PV) to set temperature(SV). ON/OFF control is
fixed on reverse operation(Heating). Output turns on to supply power
temperature(SV) and the output turns off to turn off heater when present
temperature(PV) is higher then set temperature(SV).
※Hysteresis is fixed at 2℃ during ON/OFF control.

Connections

※RTD(Platinum resistance thermometer): DPt100Ω(3-wire)
1. TAS Series
SSR
12VDC±2V
20mA Max
B'
T.C.
B
SENSOR
RTD
A
2. TAM Series
1
2
3
4
Input range(℉)
5
32 to 212
6
32 to 392
7
32 to 752
32 to 1,112
8
32 to 1,472
9
32 to 2,192
32 to 392 3. TAL Series
1
32 to 572
32 to 752 2
-58 to 212
3
32 to 212
4
32 to 392
32 to 752
5
6
7
8
9
10
11
12
Connections'.
2. TAM Series
14.7
64.5
72
66.7 6.5
52
Terminal cover(sold separately)
TAM, TAL Series RMA-COVER(72×72mm) RLA-COVER(96×96mm )
70 3
46
12
23.9

3. PID Control

PID constants are suggested and implemented based on self tuning from supply power until reaching set
SSR module
temperature(SV), then self tuning is over after reaching set temperature(SV). When power supply, in case that
Load
set temperature(SV) dial points at OFF or self tuning can not be started because present temperature(PV) is
higher than set temperature(SV) or hunting occurs during self tuning, output control is switched to proportion
INPUT LOAD band(P) because that is considered to error. At that time, proportion band is fixed at 10℃.
Power
※Control cycle of PID control and proportion control is 20 sec. in relay output model and 2 sec. in SSR drive
output model.
4. STOP
SRH1 Series Control output could stop without power off by setting the front setting volume to below min. setting range.
If control output stops by STOP function, green indicator in deviation indicator( ) will flash every 1 sec.
Reverse operation

5. Error

(Heating)
Error mark will flash(every 1 sec.) in PV indicator when error occurs during the control operation.
It will operate normally, if input sensor is connected or temperature is returned to normal range.
No Display
Hysteresis 1 + +
2
SV
3
Temperature

Installation

※T.C.(Thermocouple): K(CA), J(IC)
1. TAS Series
RELAY OUT (※Socket(PG-08, PS-08) is sold separately.)
250VAC 3A 1c
RESISTIVE LOAD
COM
N.C.
4 5
N.O.
3 6
2 7
1 8
SOURCE
100-240VAC
※Mount the product on the panel and securely push the bracket in using a tool, as shown in the diagram.
4VA 50/60Hz
Caution for using
19 10
SOURCE
1. Please use separated line from high voltage line or power line in order to avoid inductive noise.
100-240VAC
20 11 2. Install power switch or circuit-breaker in order to on/off the power.
4VA 50/60Hz
3. The switch or circuit-breaker should be installed nearby users for safety.
21 12
4. Do not use this product as Volt-meter or Ampere-meter, this is a temperature controller.
RELAY OUT N.C.
N.O.
5. In case of using RTD sensor, 3-wire type must be used. If you need to extend the line, 3 wires must be used
22 250VAC 3A 1c 13 SSR
with the same thickness as the line. It might cause the deviation of temperature if the resistance of line is
RESISTIVE LOAD 12VDC±2V
COM
different.
23 14 20mA Max
6. In case of making power line and input signal line closely, line filter for noise protection should be installed at
A RTD
24 15 power line and input signal line should be shielded.
7. Keep away from the high frequency instruments. (High frequency welding machine & sewing machine, large
B T.C.
25 16
capacity SCR controller)
SENSOR
B' 8. Installation environment
26 17
①It shall be used indoor.
②Altitude Max. 2,000m
27 18
③Pollution Degree 2
④Installation Category Ⅱ
25 13
※It may cause malfunction if above instructions are not followed.
SOURCE
100-240VAC
26 14
4VA 50/60Hz Major products
27 15
Photoelectric sensors
N.C.
RELAY OUT
N.O. Fiber optic sensors
28 250VAC 3A 1c 16 SSR
Door sensors
RESISTIVE LOAD 12VDC±2V
COM
Door side sensors
29 17 20mA Max
Area sensors
A RTD
Proximity sensors
30 18
Pressure sensors
B T.C.
31 19 Rotary encoders
SENSOR Connector/Sockets
B'
32 20 Switching mode power supplies
Control switches/Lamps/Buzzers
33 21 I/O Terminal Blocks & Cables
Stepper motors/drivers/motion controllers
34 22
Graphic/Logic panels
Field network devices
35 23
Laser marking system(Fiber, CO₂, Nd:YAG)
Laser welding/soldering system
36 24
3. TAL Series
14.7 64.5
96
6.5
Panel cut-out
A
94 3
D
B
C
Size
A B C D
Series
TAS Min. 65 Min. 65 45 0.6 45 0.6
0 0
TAM Min. 90 Min. 90 68 0.7 68 0.7
0 0
0.8 0.8
TAL Min. 115 Min. 115 92 92
0 0
Description
indicators flash If input sensor is broken or sensor is not connected.
indicator flashes If measured sensor input is higher than temperature range.
indicator flashes If measured sensor input is lower than temperature range.
2. TAM, TAL Series
Temperature controllers
Temperature/Humidity transducers
SSR/Power controllers
http://www.autonics.com
Counters
Satisfiable Partner For Factory Automation
Timers
Panel meters
HEAD QUARTERS:
Tachometer/Pulse(Rate) meters
116, Ungbigongdan-gil, Yangsan-si, Gyeongsangnam-do, Korea
Display units
OVERSEAS SALES:
Sensor controllers
#402-404, Bucheon Techno Park, 655, Pyeongcheon-ro,
Wonmi-gu, Bucheon, Gyeonggi-do, Korea
TEL: 82-32-610-2730 / FAX: 82-32-329-0728
E-mail: sales@autonics.com
The proposal of a product improvement and
development: product@autonics.com
EP-KE-03-0340C
