Autonics TC4Y Manual

TC Series
Economical Single Display Type, PID Control
Features
● Realizes ideal temp. controlling with newly developed
PID control algorithm and 100ms high speed sampling
● Built-in relay output or SSR output selectable
: Enables to phase control and cycle control
with SSR drive output (SSRP function)
● Dramatically increased visibility using wide
display part
● Mounting space saving with compact design
: Approx. 38% reduced size compared with
existing model (depth-based)
● SV/PV deviation indicatable
 Ordering Information
T C 4 S
Size
Digit
Setting type
Item
※1:IncaseoftheACvoltagemodel,SSRdriveoutputmethod(standardON/OFFcontrol,cycle,control,phasecontrol)isavailableto
select.
※ 2: It is unavailable for TC4SP, TC4Y.
※ 3: 11-pin socket (PG-11, PS-11(N)) for TC4SP: sold separately.
 Specifications
Series
AC power
Power
supply
AC/DC power
Allowable voltage range
AC power
Power
consumption
AC/DC power
Display method
Character size (W×H)
RTD
Input type
Thermocouple K (CA), J (IC), L (IC)
RTD
Display
※ 1
accuracy
Thermocouple
※ 1: Thermocouple L (IC) type, RTD Cu50Ω
At room temperature (23℃ ±5℃):(PV ±0.5% or ±2℃,selectthehigher one) ±1digit
Out of room temperature range:(PV ±0.5% or ±3℃,selectthehigher one) ±1digit
In case of TC4SP Series, ±1℃ will be added.
H-54
1 4 R
Control output
Power supply
Alarm output

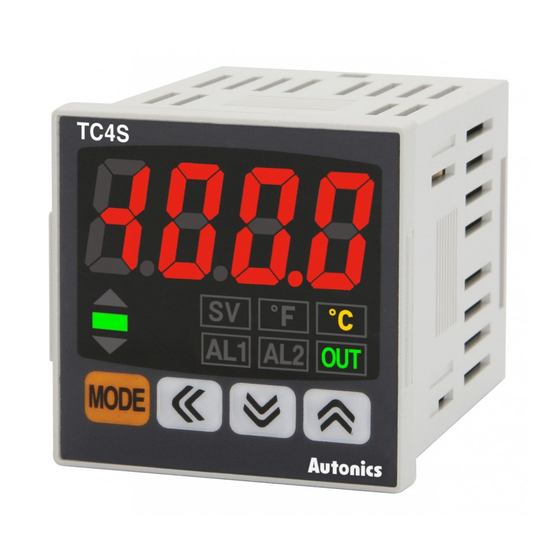

TC4S TC4SP
100-240VAC 50/60Hz
24VAC 50/60Hz, 24-48VDC
90 to 110% of rated voltage
Max. 5VA (100-240VAC 50/60Hz)
Max. 5VA (24VAC 50/60Hz), Max. 3W (24-48VDC)
7Segment (red), Other display (green, yellow, red) LED
7.0×15.0mm
DPt100Ω, Cu50Ω (allowable line resistance max. 5Ω per a wire)
At room temperature (23℃±5℃): (PV ±0.5% or ±1℃, select the higher one) ±1digit
Out of room temperature range: (PV ±0.5% or ±2℃, select the higher one) ±1digit
※ For TC4SP, add ±1℃ by accuracy standard.
N Indicator - Without control output
R Relay output + SSR drive output
2 24VAC 50/60Hz, 24-48VDC
4 100-240VAC 50/60Hz
N No alarm output
1 Alarm 1 output
2 Alarm 1 output + Alarm 2 output
S DIN W48×H48mm (Terminal block type)
SP DIN W48×H48mm (11-pin plug type)
Y DIN W72×H36mm
M DIN W72×H72mm
H DIN W48×H96mm
W DIN W96×H48mm
L DIN W96×H96mm
4 9999 (4digit)
C Set by touch switch
T Temperature controller
TC4Y TC4M
7.4×15.0mm 9.5×20.0mm
※1
※2
※3
TC4W TC4H
9.5×20.0mm 7.0×14.6mm
TC4L
11.0×22.0mm
