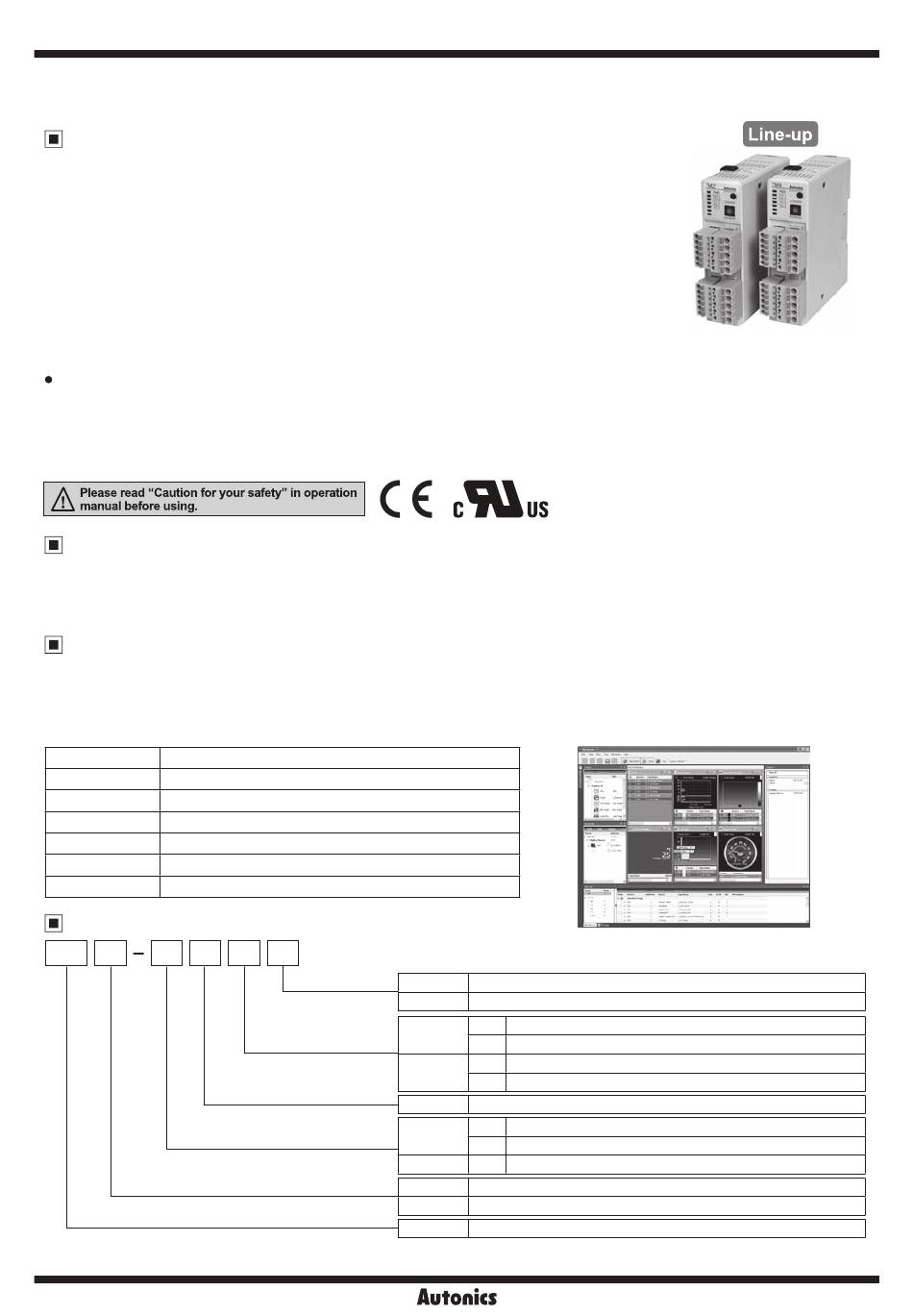

TM Series
Multi-channel(4 channel / 2 channel) modular type PID control
Features
●●Multi-channel(4●channel/●2●channel)●simultaneous●controlling●possible
●●High-speed●sampling●cycle(4●channel:●100ms,●2●channel:●50ms)
●●No communication and power supply for expansion modules
required by using side connectors: Max. 31 units (124 channels / 62 channels)
●●Input●channel●isolated●design(Dielectric●strength●1,000●VAC)
●●Heating/Cooling●simultaneous●controlling
●●●Allows●parameter●setting●by●USB●port●of●PC
:●Free●download●the●integrated●device●management●program(DAQMaster)
※Communication●converter,●sold●separately
:●SCM-WF48(Wi-Fi●to●RS485/USB●communication●converter(availabe●soon),●SCM-US(USB●to●Serial●converter),● ● ●
●●SCM-38I(RS-232C●to●RS485●converter),●SCM-US48I(USB●to●RS485●converter)
Parameter●setting●by●SCM-US●without●power/wiring
●●Easy●maintenance●via●connector●type●connection
:●Sensor●input●connector,●control●output●connector,●power/communication●connector
●●Multi●input●/●Multi●range
●●Heater●disconnection●function(CT●input)●※ CT,●sold●separately:●CSTC-E80LN,●CSTC-E200LN
Manual
● ● Visit●our●website●(www.autonics.com)●to●download●user●manual●and●communication●manual.
● ● User●manual●describes●for●specifications●and●function,●and●communication●manual●describes●for●RS485●communication●
(Modbus●RTU●protocol)●and●parameter●address●map●data.
Integrated device management program(DAQMaster)
● ● DAQMaster●is●a●integrated●device●management●program●for●convenient●management●of●parameters●and●multiple●device●
data●monitoring.
● ● Visit●our●website●(www.autonics.com)●to●download●user●manual●and●integrated●device●management●program.
<●Computer●specification●for●using●software●>
Item Minimum●requirements
IBM●PC●compatible●computer●with●Intel●Pentium● Ⅲ ●or●above
System
Operating●system Microsoft●Windows●98/NT/XP/Vista/7
Memory 256MB●or●more
Hard●disk More●than●1GB●of●free●hard●disk●space
VGA 1024×768●or●higher●resolution●display
Others RS-232●serial●port(9-pin),●USB●port
Ordering information
TM 4 N 2
Option●input/output
Channel
Item
※ Make●sure●to●purchase●both●expansion●module●and●basic●module●together●because●power●supply/communication●terminals●are●provided●
with●basic●modules●only.
H-10
R B
Module●type
Control●output
Power●supply
B Basic●module
E Expansion●module
R Relay●output
2●Channel
C Current●or●SSR●drive●voltage●output●selectable
R Relay●output
4●Channel
S SSR●drive●voltage●output
2 24VDC
2 Alarm1+Alarm2●Relay●output
2●Channel
4 Alarm1+Alarm2+Alarm3+Alarm4●Relay●output
None( ※ No●auxiliary●input/output)
4●Channel N
2 2●Channel
4 4●Channel
TM Multi-channel●modular●temperature●controller
<●DAQMaster●screen●>
