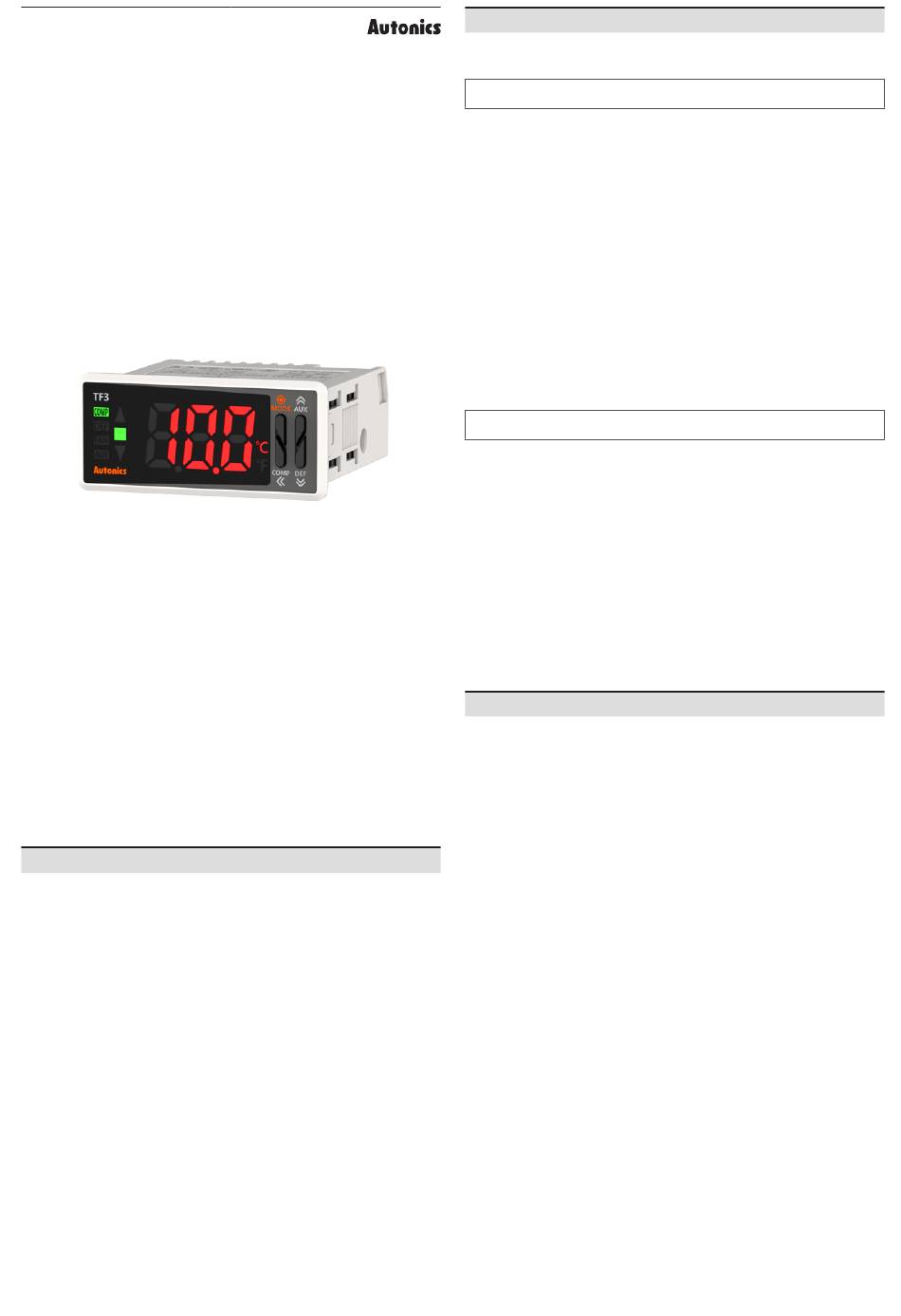

Refrigeration Temperature
Controllers
TF3 Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc are subject to change without notice for product
improvement Some models may be discontinued without notice.
Features
• Standard installation size for refrigeration panels (W70.3×H28.2mm)
• Various compressor load current capacity : 5A, 16A, 20A
• Various user-friendly functions
- Defrost sync function : simultaneous defrost operation of multiple controllers (up to
6 units)
- RTC (Real Time Clock) function : night mode operation and real-time defrost
control
- Built-in alarm function
• Remote monitoring of real-time temperature and output control (using TFD series
remote display unit, sold separately)
• Communication output models available : RS485 (Modbus RTU)
• Parameter configuration via PC (RS485 communication) : DAQMaster software
included (comprehensive device management software)
• IP65 protection structure (IEC standard) : front panel only
ᜢ ᜽ ᜨ ᜣ ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss.(e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use or store the unit in the place where flammable/explosive/
corrosive gas, high humidity, direct sunlight, radiant heat, vibration, impact
or salinity may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on a device panel to use.
Failure to follow this instruction may result in electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage
01. When connecting the power input and relay output, use AWG 28 to 12 cable
or over and tighten the terminal screw with a tightening torque of 0.4 N m.
When connecting the sensor input and communication cable without
dedicated cable, use AWG 30 to 14 cable and tighten the terminal screw with
a tightening torque of 0.72 N m.
Failure to follow this instruction may result in fire or malfunction due to contact
failure.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage
03. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
04. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' . Otherwise, it may cause unexpected
accidents.
• Check the polarity of the terminals before wiring the temperature sensor. For RTD
temperature sensor, wire it as 3-wire type, using cables in same thickness and length.
For thermocouple (TC) temperature sensor, use the designated compensation wire for
extending wire.
• Keep away from high voltage lines or power lines to prevent inductive noise. In case
installing power line and input signal line closely, use line filter or varistor at power line
and shielded wire at input signal line. Do not use near the equipment which generates
strong magnetic force or high frequency noise.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TF3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics TF3 Series

  • Page 1 For your safety, read and follow the considerations written in the instruction accidents. manual, other manuals and Autonics website. • Check the polarity of the terminals before wiring the temperature sensor. For RTD The specifications, dimensions, etc are subject to change without notice for product temperature sensor, wire it as 3-wire type, using cables in same thickness and length.
  • Page 2: Ordering Information

    None (default), Odd, Even Download the manuals from the Autonics website. Stop bit 1 bit, 2 bit (default) Software Download the installation file and the manuals from the Autonics website. ■ DAQMaster DAQMaster is comprehensive device management program. It is available for parameter setting, monitoring. Sold Separately • Dedicated remote display unit for TF3: TFD Series...
  • Page 3: Display Accuracy

    DPt100 24VACᜠ 50/60 Hz, • TF3 Series displays only 3 digits. If PV decimal number of shaded temperature range is out of 3 digit, TF3 does not SENSOR display the numbers below decimal point. You can check it at the comprehensive device management program 12-24 VDCᜡ...
  • Page 4 -|Transparent Guide|- Dimensions Crimp Terminal Specifications • Unit: mm, For the detailed drawings, follow the Autonics website. • Unit: mm, Use the crimp terminal of follow shape. 74.3 Terminal number Common 1 to 4 4 to 6 ≤ 1.7 ≤ 3.7 TF3□-□□H 5 to 10...
  • Page 5: Parameter Setting

    Unit weight (packaged) ≈ 48 g (≈ 77 g) Parameter 4 groups lock Parameter 5 group lock ■ Dimension Password setting • Unit: mm, For the detailed drawings, follow the Autonics website. Panel cut-out ≥ 65 45.7 + 0.6 Ø2.5,...
  • Page 6: Segment Table

    -|Transparent Guide|- Segment Table The segments displayed on the product indicate the following meanings. It may differ depending on the product. 7 Segment 11 Segment 12 Segment 16 Segment 18, Bansong-ro 513Beon-gil, Haeundae-gu, Busan, Republic of Korea, 48002 www.autonics.com | +82-2-2048-1577 | sales@autonics.com...
