TZN/TZ Series
Dual PID auto tuning control
Features
● Dual PID auto tuning function:
High-speed response of PID control to reach to the
desired value fast, low-speed of response of PID control
to minimize the overshoot even though response is a
little bit slow.
● High display accuracy: ±0.3%(by F.S. value of each input)
● 2-Steps auto tuning control function
● Multi-input function
(13 kinds of multi-input selection function):
Temperature sensor, voltage and current selection
function.
● Various sub output function:
Includes in LBA, SBA, 7kinds of alarm output and
4 kinds of alarm option function, PV transmission
output(DC4-20mA), RS485 communication output
● Display the decimal point for analog input

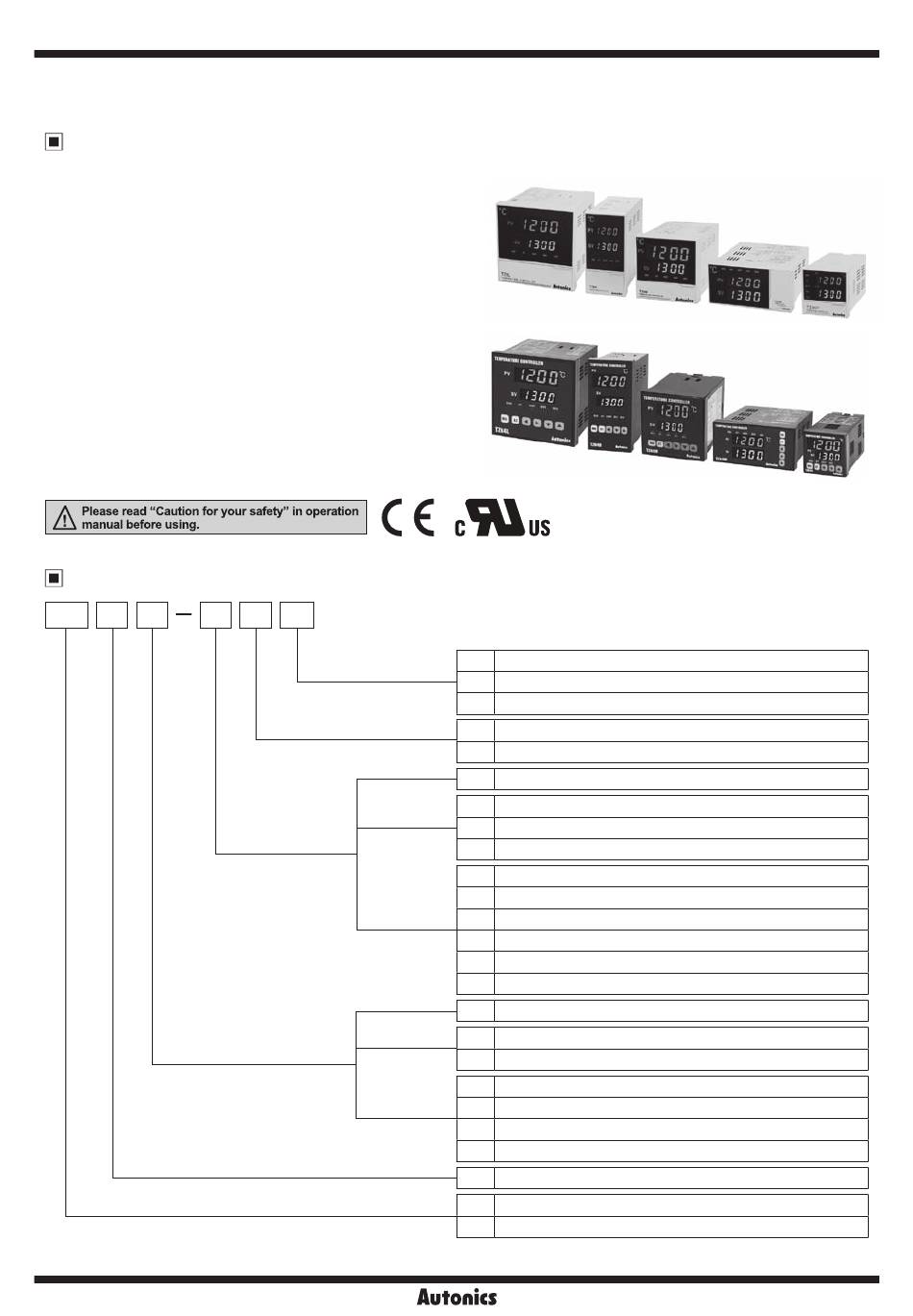

Ordering information
TZ 4 M
Size
Digit
Item
※ 1: Only for TZ4SP, TZ4ST, TZ4L, TZN4M Series.
H-72
1 4 R
Control output
※ 1
Power supply
TZ4SP/TZN4S
TZ4ST
Auxiliary output
Etc.
TZN4
TZ4
TZ4/TZN4
R Relay output
S SSR drive voltage output
C Current output(DC4-20mA)
2 24VAC/24-48VDC
4 100-240VAC 50/60Hz
1 Event 1 output
1 Event 1 output
2 Event 1 + Event 2 output
R Event 1 + PV transmission output(DC4-20mA)
1 Event 1 output
2 Event 1 + Event 2 output
R Event 1 + PV transmission output(DC4-20mA)
A Event 1 + Event 2 + PV transmission output(DC4-20mA)
T Event 1 + RS485 communication output
B Event 1 + Event 2+RS485 communication output
S DIN W48×H48mm(terminal type)
SP DIN W48×H48mm(plug type)
ST DIN W48×H48mm(terminal type)
M DIN W72×H72mm
W DIN W96×H48mm
H DIN W48×H96mm
L DIN W96×H96mm
4 9999(4 digit)
TZ Temperature dontroller(PID)
TZN Temperature dontroller (PID New type)
