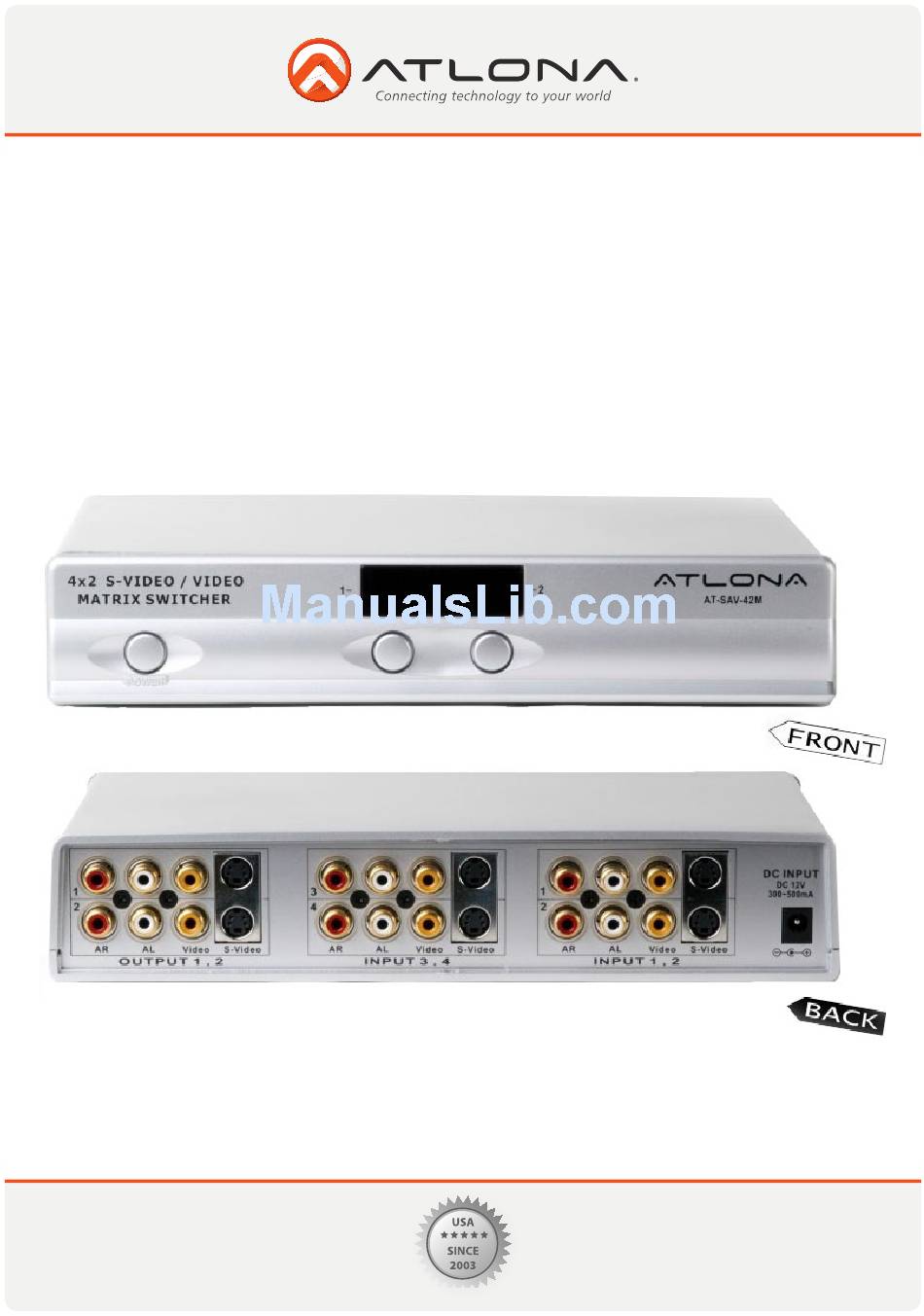

- Page 1 User Manual 4x2 Composite Video/S-Video/Analog Audio Matrix Switcher AT-SAV-42M Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
..........3 5.2 Rear Panel ..........3 6. IR Remote Control ..........4 7. Controls ..........4 8.Installation ..........5 9. Safety Information ..........6 10. Warranty ..........7 11. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Atlona Technologies’ AT-SAV-42M is a 4x2 S-Video/Composite Video and Analog Audio Matrix Switcher de- signed to work as a switcher for multiple Audio/Video sources and displays. This Atlona unit is capable of switching Composite Video, S-Video and Stereo Audio signals between four sources and two displays. Because it is a matrix switch, any or all of the 4 inputs can simulta¬neously be switched to either or both of the outputs. -
Page 4: Specification
1. Power SWITCH: Power Unit ON/OFF 2. IR: IR Sensor 3. Video Selection Buttons: Press for desired Video Input/Output setting 2. Rear Panel 1. Outputs: 2 x Composite/S-Video/Audio. 2. Inputs: 4 x Composite/S-Video/Audio. 3. Power Input: 12V DC Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Ir Remote Control
TV-1 and TV-2. To select video input for TV-1 simply press the desired video input button. Likewise for TV-2 When controlling the AT-SAV-42M manually, select desired video input by pressing the corre¬sponding selection button for each display. To select a video input you must press the video se¬lection button multiple times to cycle through the available video inputs. -
Page 6: Installation
2. Connect all sources to the Desired Video/Audio Inputs 3. Connect all displays to desired Audio/Video Outputs 4. Plug in 12V DC power supply. 5. Power on the monitors. 6. Power on the sources. 7. Power on AT-SAV-42M Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
It may also cause damage to your AT-SAV-42M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: 10. Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 9: 11. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
