RAB Lighting WPLED52 Installation Instructions

WPLED52 Series INSTALLATION INSTRUCTIONS
WPLED52
Standard (15 Deg)
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000, or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable
parts inside.

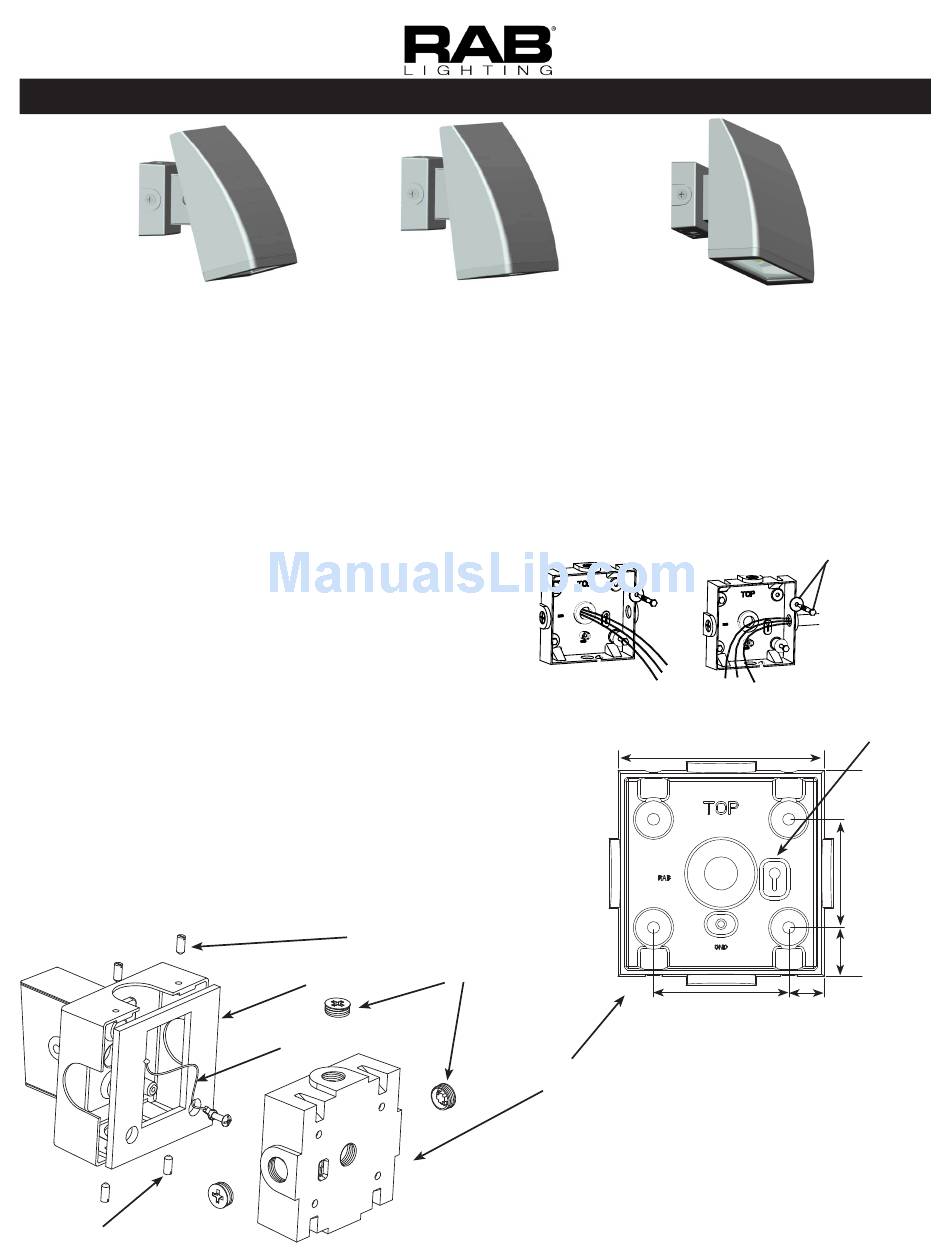

MOUNTING TO A WALL
1. Orient box so that "TOP" is on top.
2. Secure Wall Mounting Box to a sturdy wall. Use
appropriate mounting hardware such as lag bolts
and anchors with washers suitable for the mounting
surface.
3. Feed supply wires through Wall Mounting Box.
Check that Gasket is fully sealed.
4. Bring fixture up to the Wall Mounting Box and slide
the stainless steel Tether from the fixture into the Key
Hole Slot for hands free wiring.
5. Wire the fixture using suitable wire connectors.
6. Place wired fixture over the Wall Mounting Box and
tighten the Top Screws. Now tighten the Lower
Screws.
7. Tighten Close Up Plugs and apply weatherproof sili-
cone sealant to all unused conduit entry points. Also
use sealant between the wall and Wall Mount Box.
Lower
Screws
WPLEDC52
Cutoff (7.5 Deg)
Top Screws
Gasket
Tether
Wall Feed
Close Up
Plugs (4)
Wall Mount
Box
Note: These instructions do not cover all details or variations
in equipment nor do they provide for every possible situation
during installation, operation or maintenance.
WPLEDFC52
Full Cutoff (0 Deg)
Hardware
(not supplied)
Conduit Feed
Key Hole
Slot
4.57"
2.4"
1.09"
3.0"
.79"
