WPLED 10W INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
rmly. Apply weatherproof silicone sealant around the edge of the Back Box and/or Junction Box. This is especially
important with an uneven wall surface. Silicone all plugs and unused conduit entries.

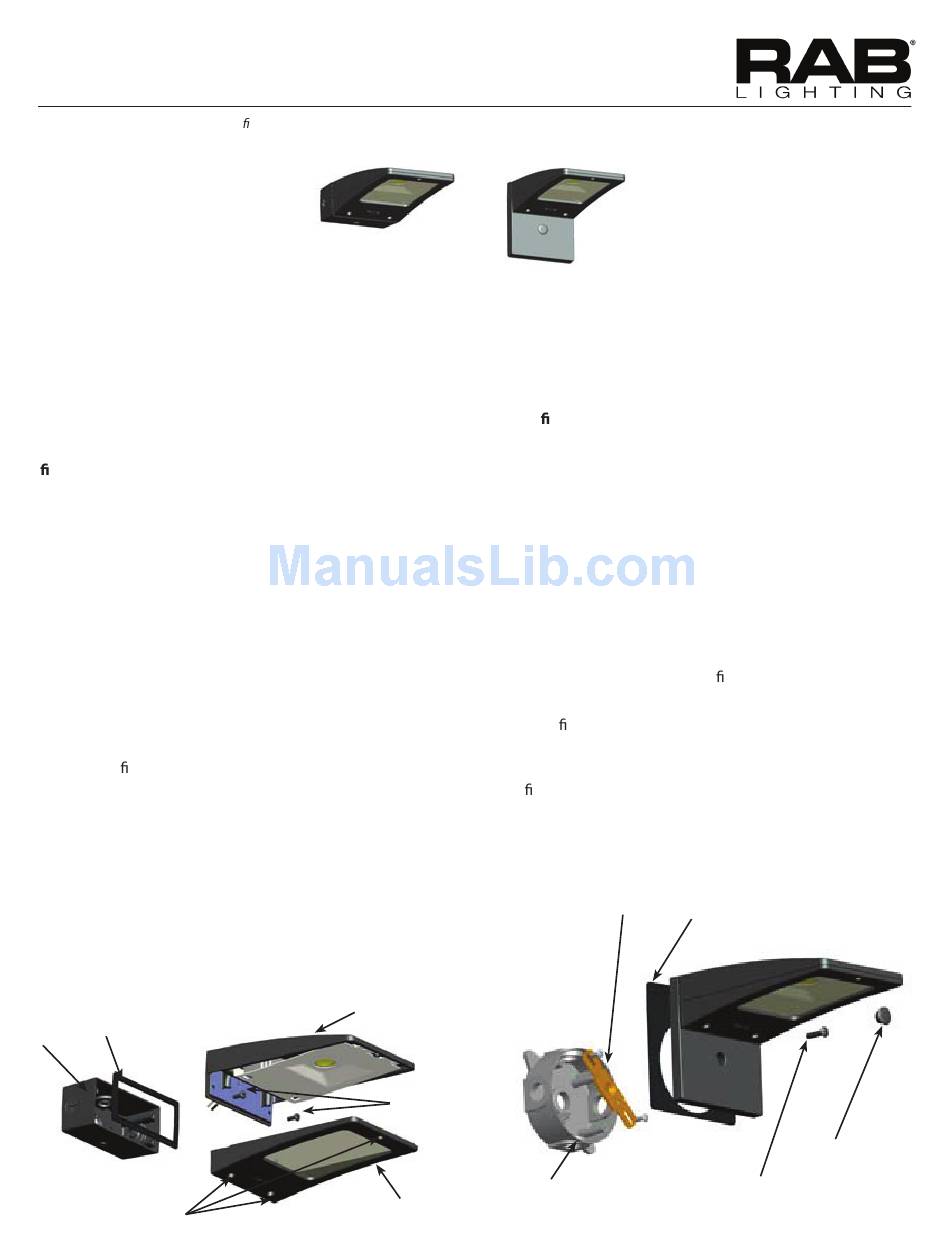

JUNCTION BOX MOUNT FOR
CONDUIT
For use on applications where conduit wiring is necessary.
1. Loosen and remove (3) Lens Screws. Remove Door.
2. Loosen and remove (2) Housing Screws. Remove
Housing from Back Box. Keep Housing Gasket intact
for re-assembly.
3. Secure Back Box to the mounting surface using
hardware appropriate for that mounting surface.
4. Wire the xture using UL listed wire connectors
according to NEC and local codes. Apply sealant to all
unused conduit entry points.
5. Place Gasket between Back Box and Housing.
Re-mount Housing to Back Box. Check Housing Gasket
seal all around the Back Box.
6. Re-mount Door to Housing. Tighten (3) Lens Screws.
Check door gasket (not shown) seal.
7. Fixture can be mounted as an uplight.
Housing
Gasket
Back Box
Lens Screws
Junction Box Surface Mount
SURFACE MOUNT FOR RECESSED
BOX
For use with recessed junction box and wiring.
1. Use supplied Crossbar. Mount Crossbar to Recessed
2. Place Gasket on back of the xture. Gasket should create
3. Wire xture to supply wires in Recessed Box according
4. Use 1/4 x 20 stainless steel Mounting Screw to attach
5. Cover screw with Cap, provided.
6. Fixture can be mounted as an uplight.
Housing
Housing
Screws
Door
Junction Box with (2) screws.
seal against mounting surface.
to wiring section.
xture to Crossbar. Tighten Mounting Screw.
Crossbar
Gasket
Recessed Junction Box
(not provided)
Cap
Mounting
Screw
