RAB Lighting LOTBLASTER 65W Installation Instructions

LOTBLASTER 65W 110W 160W INSTALLATION
™
INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. This product must be installed in accordance with the applicable installation code by a person familiar with the
construction and operation of the product and the hazards involved.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
CAUTION: The fixture weighs 22lbs. Make sure pole and hardware supplied by others (if any) can withstand the weight of
the fixture.
MOUNTING FIXTURE DIRECTLY TO
POLE
Follow steps below to mount the Housing to RAB square
pole and check that pole is drilled according to Pole
Drawing Detail -
1. Loosen Cover Screw (2) to open the Housing.
2. Feed supply wires from center opening of Pole (not
supplied) into Housing.
3. Line up Bolster Plate, Pole, and Housing. Insert 2-1/2"
Bolts (2) and thread into Bolster Plate along with
washers and lockwashers (supplied) as shown below. Be
sure the gasket is between Housing and Pole.
4. Make necessary connections inside the Housing and
knot wires for strain relief.
5. Close Housing cover and tighten the Cover Screws (2).
6. Secure Pole Cap (not supplied).
2.5" Bolt
Cover Screw
(2)
Pole
(not supplied)
LOTBLASTER WITHOUT
UNIVERSAL POLE ADAPTER
Housing
Pole Cap (not supplied)
Bolster
Plate
(2)
LOTBLASTER WITH
UNIVERSAL POLE ADAPTER

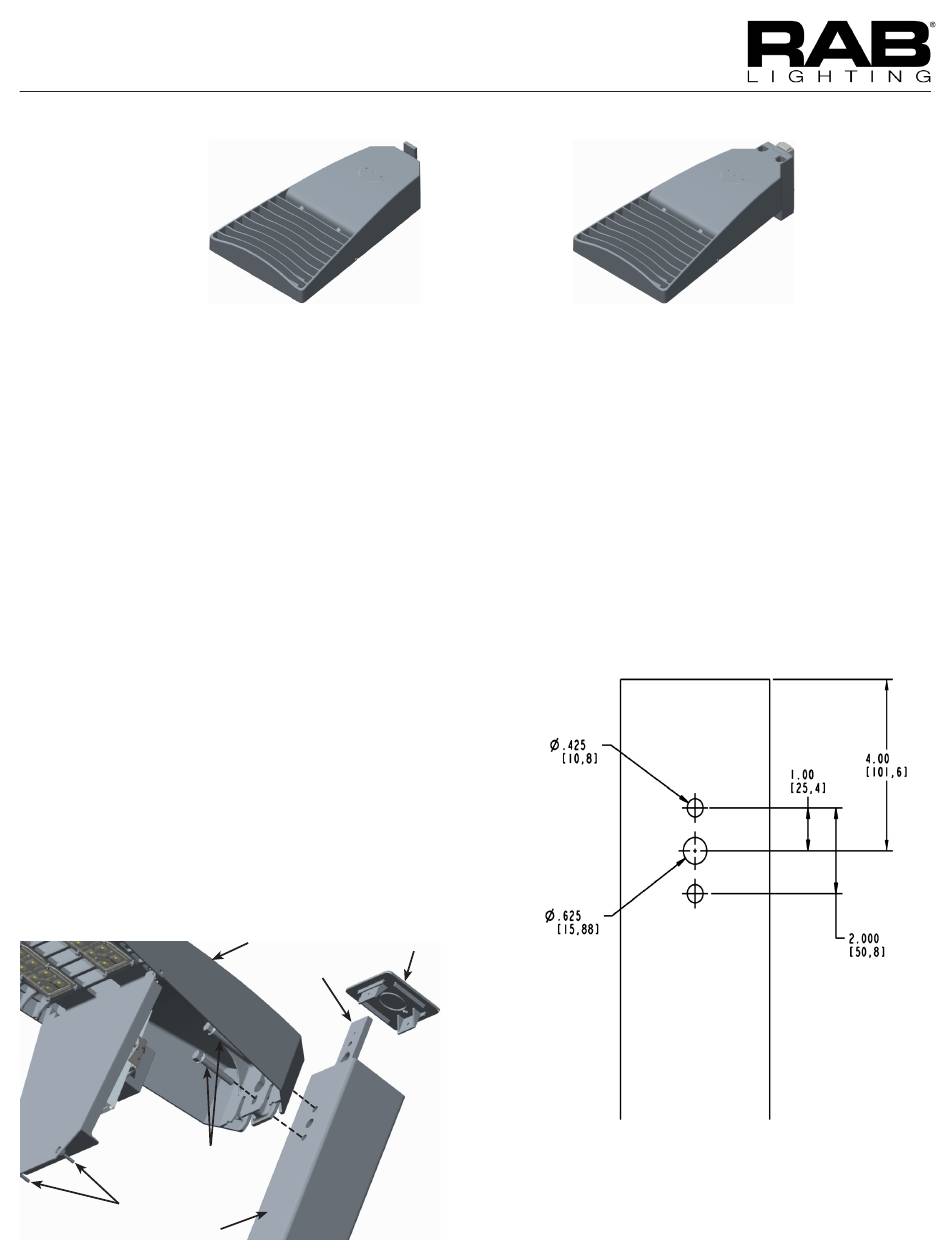

POLE DRILLING DETAIL
For non-RAB poles use these dimensions to drill the pole.
This template is not to scale. Please use measurements
shown. For pole pattern other than 2" On Center, use
accessory CAT# LOT-UPA (Universal Pole Adapter).
