ALED POST TOP INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

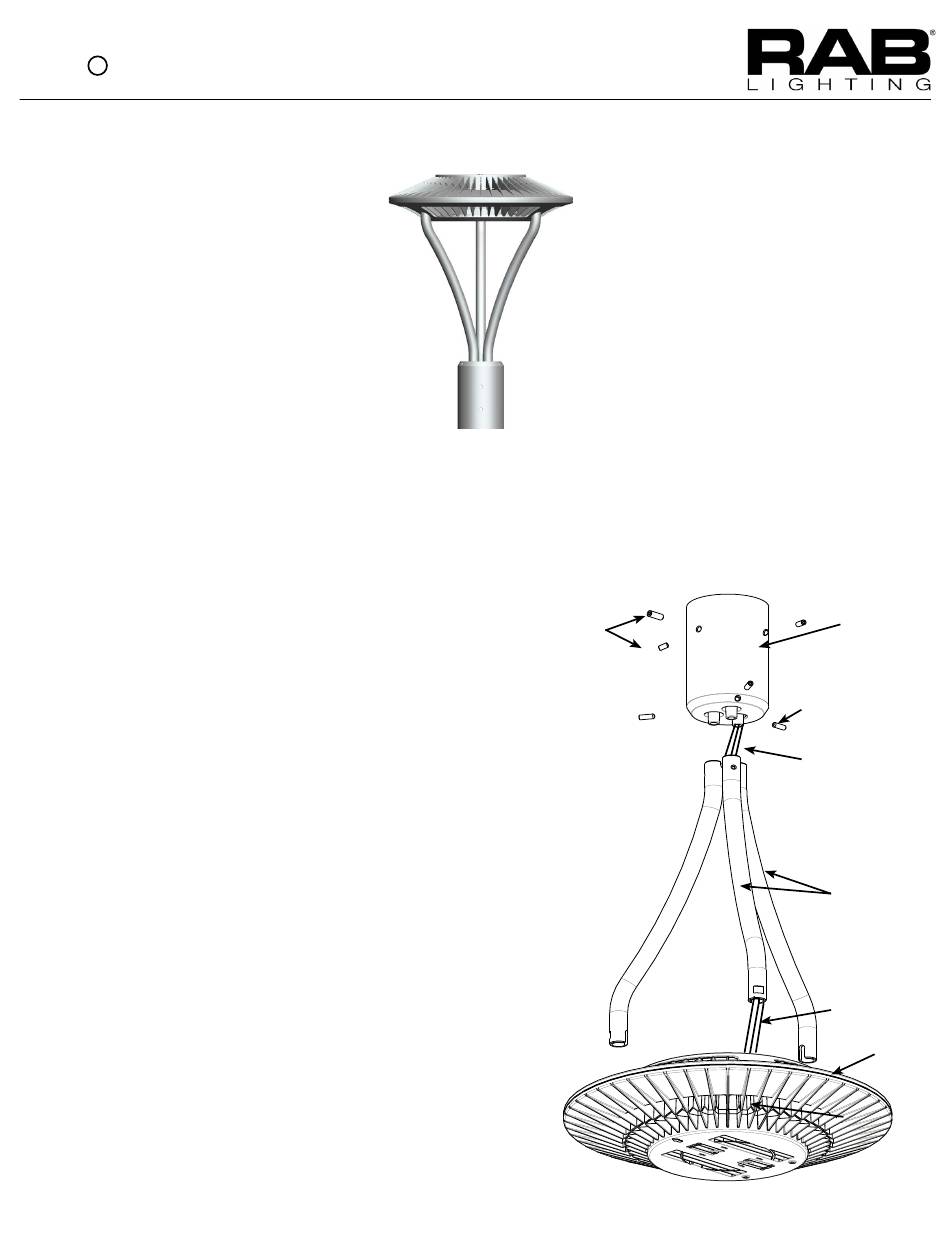

FIXTURE ASSEMBLY

1. Feed the (3) Housing wires through one of the three
Rods.
2. Clip the (3) Rods onto the Housing. Be sure the Housing
clips are properly engaged onto the Rods.
3. Feed Fixture Wires through the Tenon Pole Adaptor.
4. Slide Tenon Pole Adaptor on three Rods. Be sure the
notches face the inside of the Tenon Pole Adaptor.
5. Tighten the (3) Set Screws at the Tenon Pole Adaptor to
secure Rods.

POLE MOUNTING

1. Make the wiring connections with UL approved
connectors knot the wires for strain relief.
2. Slip Tenon Pole Adaptor over 2 3/8" diameter tenon and
secure with the set screws on the side of Tenon Adaptor.
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during
installation operation or maintenance.
Set Screw
(to secure Tenon)
.
Tenon Pole
Adaptor
Set Screw
(to secure Rods)
Housing-
Wires
Rods (3)
Housing
Wires
Housing
