LFLED4LV INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
WARNING: MAX 12VAC ONLY.
WARNING: Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

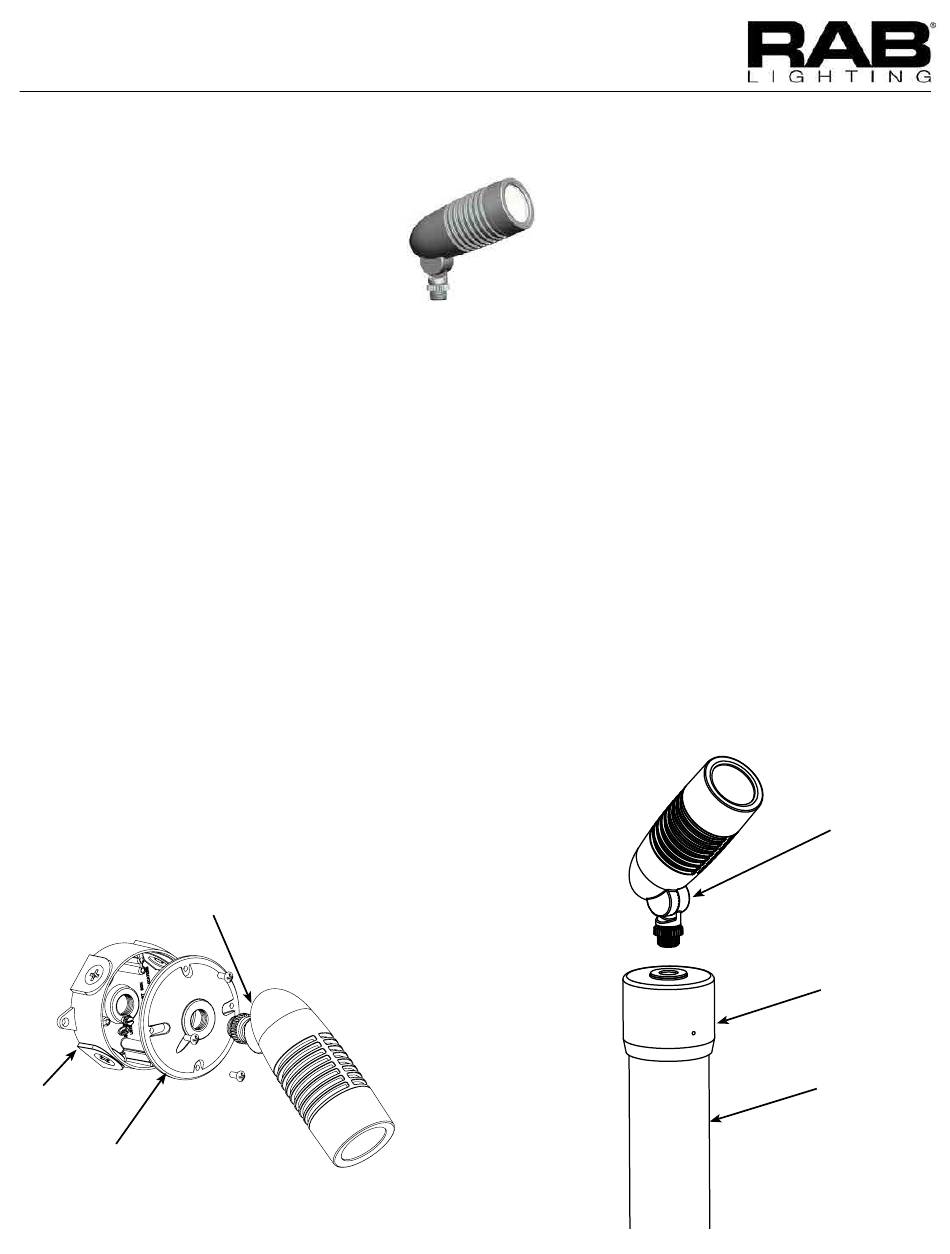

WALL MOUNTING
Mount to a weatherproof junction box and cover plate (not
supplied) as shown. To ensure weatherproof seal, apply
weatherproof silicone sealant around the edge of the wall
cover plate or surface box. This is especially important with
an uneven wall surface.
1. Seal arm thread using Teflon tape or silicone sealant.
2. Thread fixture into Cover Plate(not supplied).
3. Connect wires as shown in the wiring diagram.
4. Attach cover plate to Junction Box (not supplied).
5. Aim floodlight in the direction desired and tighten
locknut and Arm Screw.
Arm Screw
Junction Box
(not supplied)
Cover Plate
(not supplied)
GROUND MOUNTING
Mount to a Mighty Post (RAB Cat# MP19) as shown.
1. Thread fixture into Mighty Post Cap.
2. Connect wires as shown in the wiring diagram and place
inside the Mighty Post.
3. Place Mighty Post Cap on the Mighty Post.
4. Aim floodlight in the direction desired and tighten
locknut and Arm Screw.
Arm Screw
Mighty Post Cap
Mighty Post
