RAB Lighting WP3 Installation Instructions

Thank you for buying RAB lighting
fi xtures. Our aim is to design the
best quality products to get the job
done right. We'd like to hear your
comments. Call the Marketing
Department at 888-RAB-1000, or
email: marketing@rabweb.com

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
RAB fi xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED. Observe all caution and warning labels.
Make certain power is OFF before installing or maintaining fi xture.
WARNING:

LOCATION

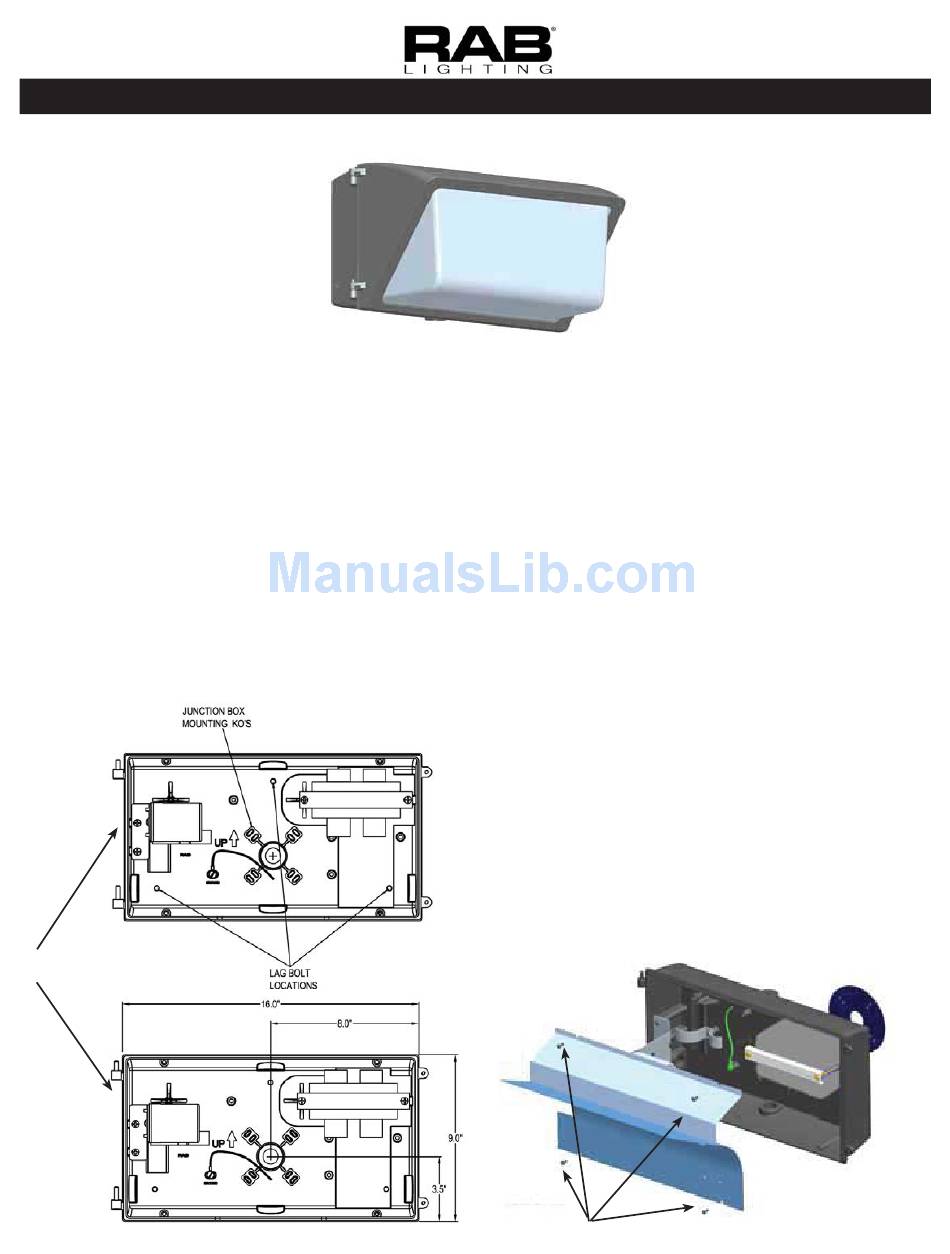

1. Secure the Wallpack to a solid surface. Do not recess
any part of this fi xture.
2. Mount over a junction box or feed with conduit on each
side, top or bottom. Using lag bolts to secure fi xture to
the mounting surface is recommended.
3. To ensure weatherproof seal, use the supplied
mounting gasket and seal all mounting plugs, conduit
entrances and along all sides of the fi xture with
weatherproof silicone sealant.
Backbox
WP3 INSTALLATION INSTRUCTIONS

WIRING

All units are factory wired for 277V except those factory
ordered with a 120V Photocell (/PC). If voltages other
than 277V are required, remove refl ector and rewire for
the appropriate voltage.
WP3SC250QT HPS
WP3H200-250PSQ
WP3F120QT
*No internal wiring changes needed for various voltages
as the ballast is quad tap electronic.
1. Open door and remove the refl ector by loosening the
(4) Refl ector Screws.
2. Connect the desired tap from the ballast to the (+)
LINE supply lead.
3. Connect the white fi xture lead to the (-) COMMON
supply lead.
4. Connect the bare copper Ground wire from fi xture to
supply ground.
5. Replace the refl ector. Tighten screws. Install the
lamp and close the door.
Refl ector
Screws
.
QT wired for 277V
QT wired for 277V
120V thru 277V*
