WPLED26DC INSTALLATION INSTRUCTIONS
Thank you for buying
RAB LED lighting.
Comments? Call us at
888-RAB-1000, or email:
marketing@rabweb.com

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper
grounding is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT.
Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
WARNING:

fIxTuRe MOuNTINg

To ensure weatherproof seal, apply weatherproof silicone sealant around the edge of the Housing and/or Back Box. This
is especially important with an uneven wall surface. Silicone all plugs and unused conduit entries.

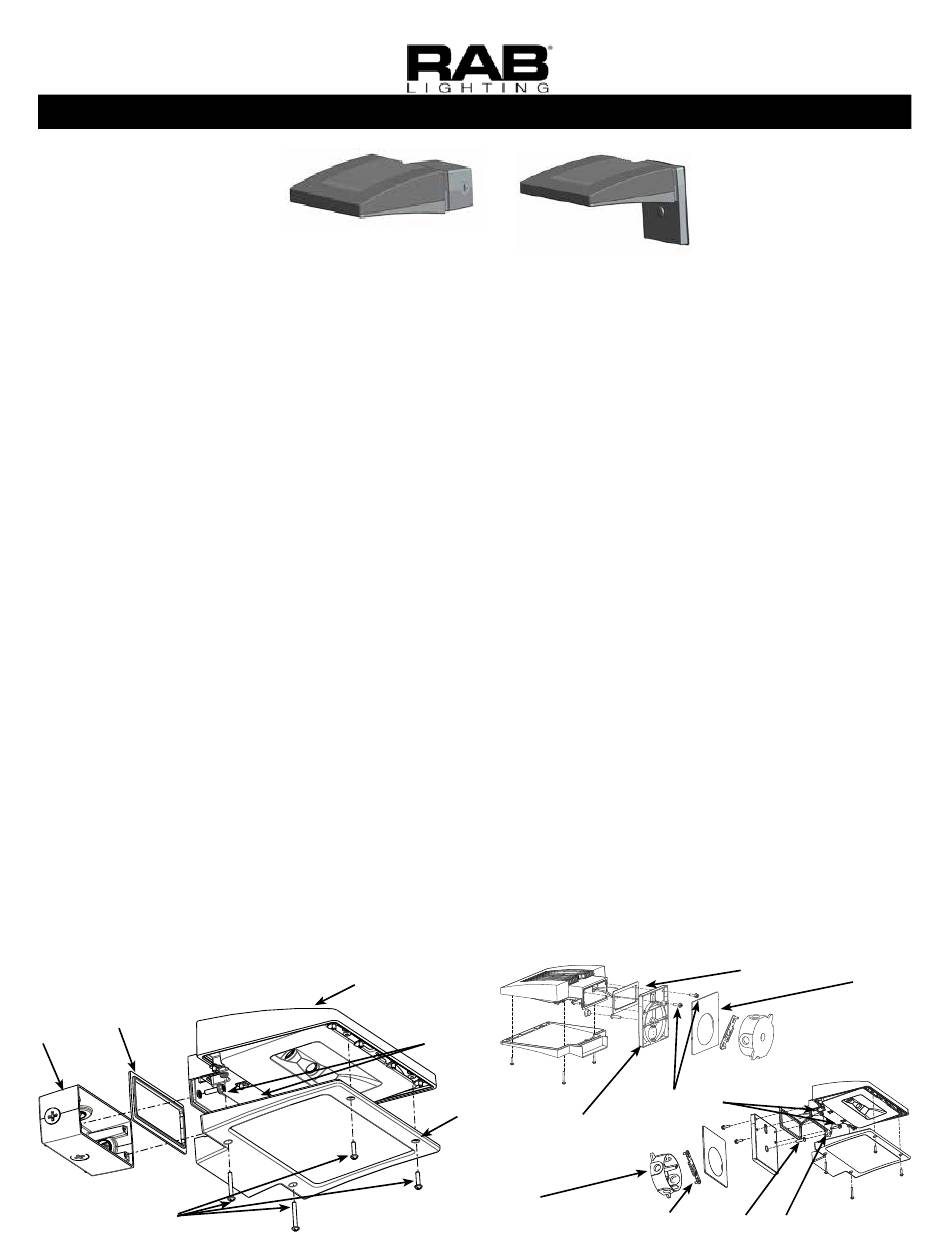

JuNcTION bOx MOuNT fOR
cONduIT
For use on applications where conduit wiring is needed.
1. Loosen and remove (4) Lens Screws. Remove Door.
2. Loosen and remove (2) Housing Screws. Remove
Housing from Back Box. Keep Housing Gasket intact
for re-assembly.
3. Secure Back Box to the mounting surface using
hardware appropriate for that mounting surface.
4. Wire the fixture using UL listed wire connectors
according to NEC and local codes. Apply sealant to all
unused conduit entry points.
5. Place Gasket between Back Box and Housing.
Re-mount Housing to Back Box. Check Housing
Gasket seal all around the Back Box.
6. Re-mount Door to Housing. Tighten (4) Lens Screws.
Check door gasket (not shown) seal.
7. Fixture can be mounted in a downlight or uplight
position. Fixture may not melt heavy snow accumulation
in an uplight position.
CAUTION: For proper weatherproof function all
gaskets must be seated properly and all screws
inserted and tightened firmly.
Housing
Gasket
Back Box
Lens
Screws
Junction Box
suRfAce MOuNT fOR Recessed
JuNcTION bOx
For use with recessed junction box and wiring.
1. Mount Surface Plate to fixture with (4) Surface Plate
2. Use supplied crossbar. Mount Crossbar to recessed
3. Place Junction Box Gasket on back of the fixture.
4. Wire fixture to supply wires in recessed junction box
5. Use 1/4 x 20 stainless steel Mounting Screw to attach
6. Cover screw with Cap, provided.
7. Fixture can be mounted in a downlight or uplight
Housing
Housing
Screws
Door
Recessed
Junction Box
(not provided)
Surface Mount
Screws. There are two screws from the front and two
screws from the back. Make sure Housing Gasket
makes complete seal all the way around.
junction box with (2) screws.
Gasket should create seal against mounting surface.
according to wiring section.
fixture to Crossbar. Tighten Mounting Screw.
position. Fixture may not melt heavy snow accumulation
in an uplight position.
CAUTION: For proper weatherproof function all
gaskets must be seated properly and all screws
inserted and tightened firmly.
(4) Surface
Plate Screws
Surface
Plate
Mounting
Crossbar
Screw
.
Housing
Junction
Gasket
Box Gasket
Cap
