RAB Lighting HSLED Series Installation Instructions

HSLED INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
iMPortant
rEad CarEFullY BEForE inStalling FiXturE. rEtain tHESE inStruCtionS For FuturE rEFErEnCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
Warning: Make certain power is oFF before installing or maintaining fixture. no user serviceable parts inside.

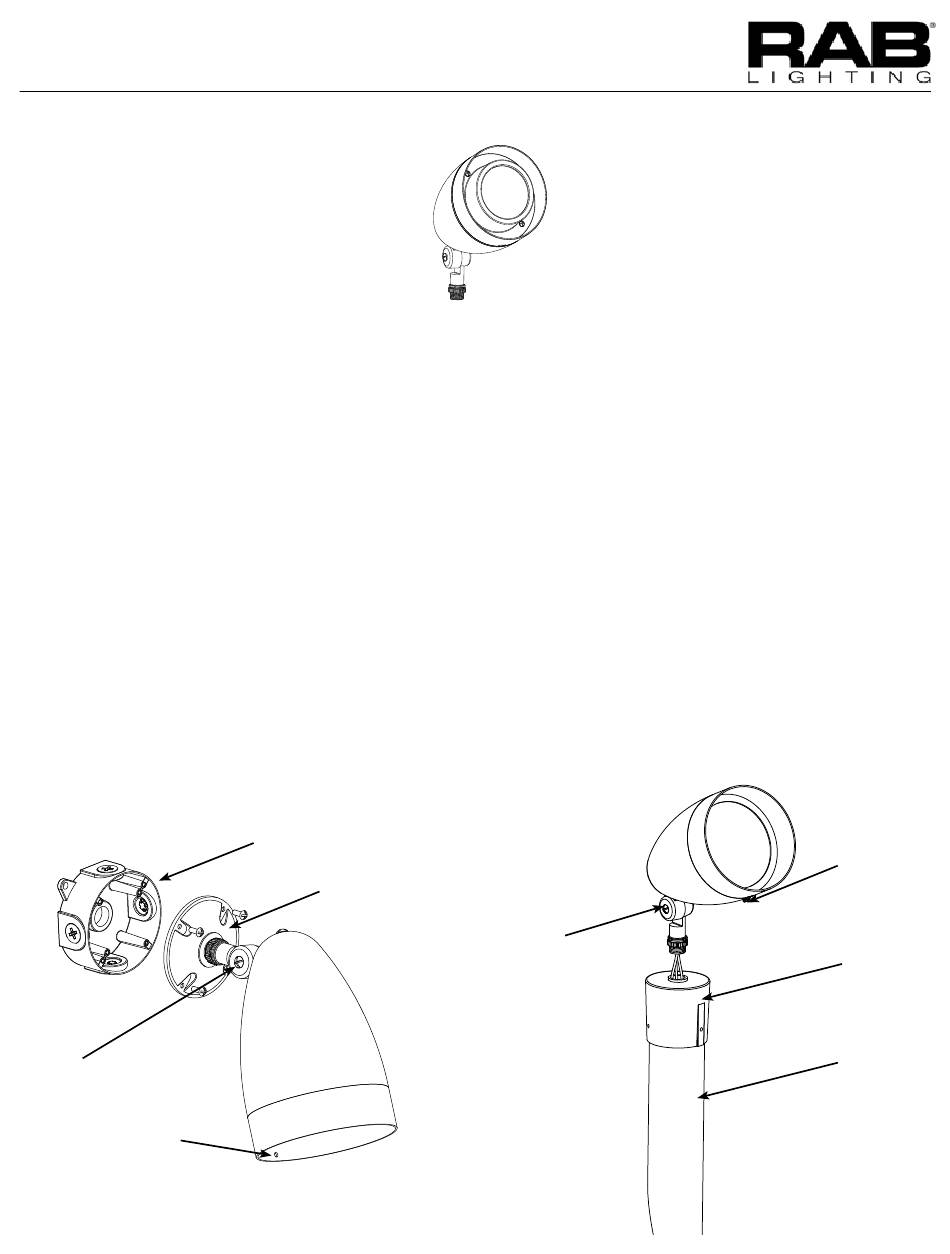

Wall Mounting

Mount to a weatherproof junction box and cover plate (not
supplied) as shown. To ensure weatherproof seal, apply
weatherproof silicone sealant back of junction box. This is
especially important with an uneven wall surface.
1. Thread fixture into Cover Plate. Seal arm thread using
teflon tape or silicone sealant.
2. Connect wires as shown in the wiring diagram
3. Attach cover to Junction Box.
4. Aim floodlight in the direction desired and tighten
locknut and arm Screw.
5. Be sure the Weep Hole on hood is oriented such that it
does not allow accumulation of water.
arm Screw
Weep Hole
Note: These instructions do not cover all details or variations in
equipment nor do they provide for every possible situation during
installation, operation or maintenance.
Junction Box
Cover Plate

ground Mounting

Mount to a Mighty Post(RAB Cat# MP19) as shown.
1. Thread fixture into Mighty Post Cap.
2. Connect wires as shown in the wiring diagram and place
inside the Mighty Post.
3. Place Mighty Post Cap on the Mighty Post.
4. Aim floodlight in the direction desired and tighten locknut
and arm Screw.
5. Be sure the Weep Hole on hood is oriented such that it
does not allow accumulation of water.
arm Screw
Weep Hole
Mighty
Post Cap
Mighty Post
