WPLED104 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
WPLED104
Standard (15 Deg)
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.
CAUTION: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
firmly. Apply weatherproof silicone sealant around the edge of the Wall Box and/or Junction Box. This is especially
important with an uneven wall surface. Silicone all plugs and unused conduit entries.

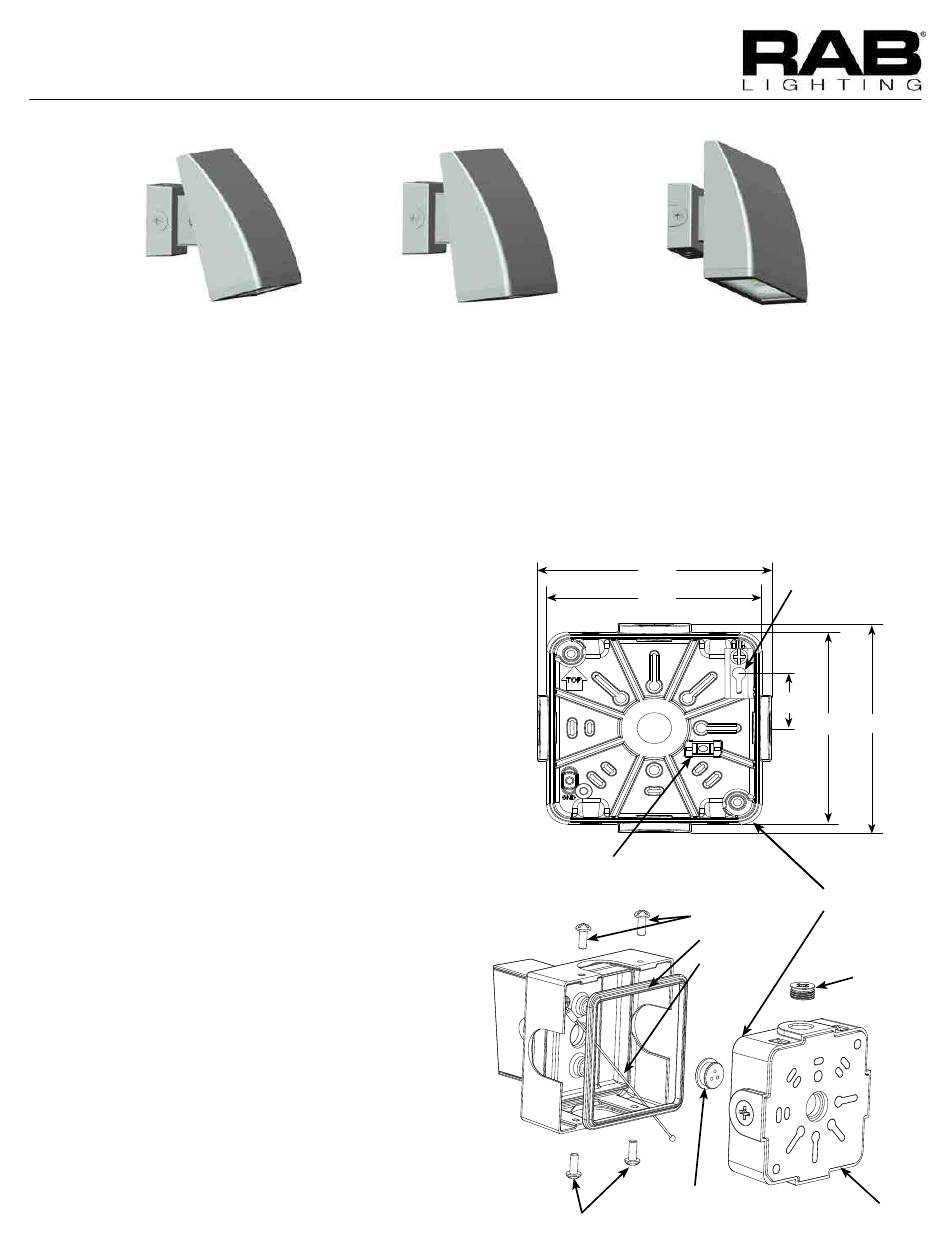

MOUNTING TO A WALL
1. Orient Wall Mount Box such that 'TOP' is pointing up.
2. Feed supply wires through Wall Mount Box Gasket
into Wall Mount Box through Silicone Wiring Plug, if
not using conduit/ connectors.
3. Secure Wall Mount Box to a sturdy mounting surface.
Use appropriate mounting hardware such as lag bolts
and anchors with washers suitable for the mounting
surface. A Leveling Bubble is provided to level fixture.
4. Silicone around the edge of Wall Mount Box Gasket
and/ or junction box.
5. Check that Gasket is fully sealed.
6. Slide the stainless steel Tether from the fixture into the
Key Hole Slot for hands free wiring.
7. Wire the fixture using UL listed wire connectors
according to NEC and local codes.
8. Place wired fixture over the Wall Mount Box and
tighten the Top Screws. Then tighten the Lower
Screws.
9. Tighten Close Up Plugs and apply weatherproof
silicone sealant to all unused conduit entry points.
CLEANING & MAINTENANCE
CAUTION: Be sure fixture temperature is cool enough
to touch. Do not clean or maintain while fixture is
energized.
1. Clean glass lens & fixture with non-abrasive glass
cleaning solution.
2. Do not open fixture to clean the LED. Do not touch the
LED.
WPLEDC104
Cutoff (7.5 Deg)
Leveling
Bubble
Lower Screws
WPLEDFC104
Full Cutoff (0 Deg)
4.97"
126.3mm
Key Hole Slot
4.58"
116.2mm
1.30"
33mm
4.58"
116.2mm
Wall Mount Box
Top Screws
Gasket
Tether
Silicone
Wiring Plug
4.97"
126.3mm
Close Up
Plugs (4)
Wall Mount Box
Gasket
WPLED104 WALLMOUNT
RAB LIGHTING INC
9 JANUARY 2015
