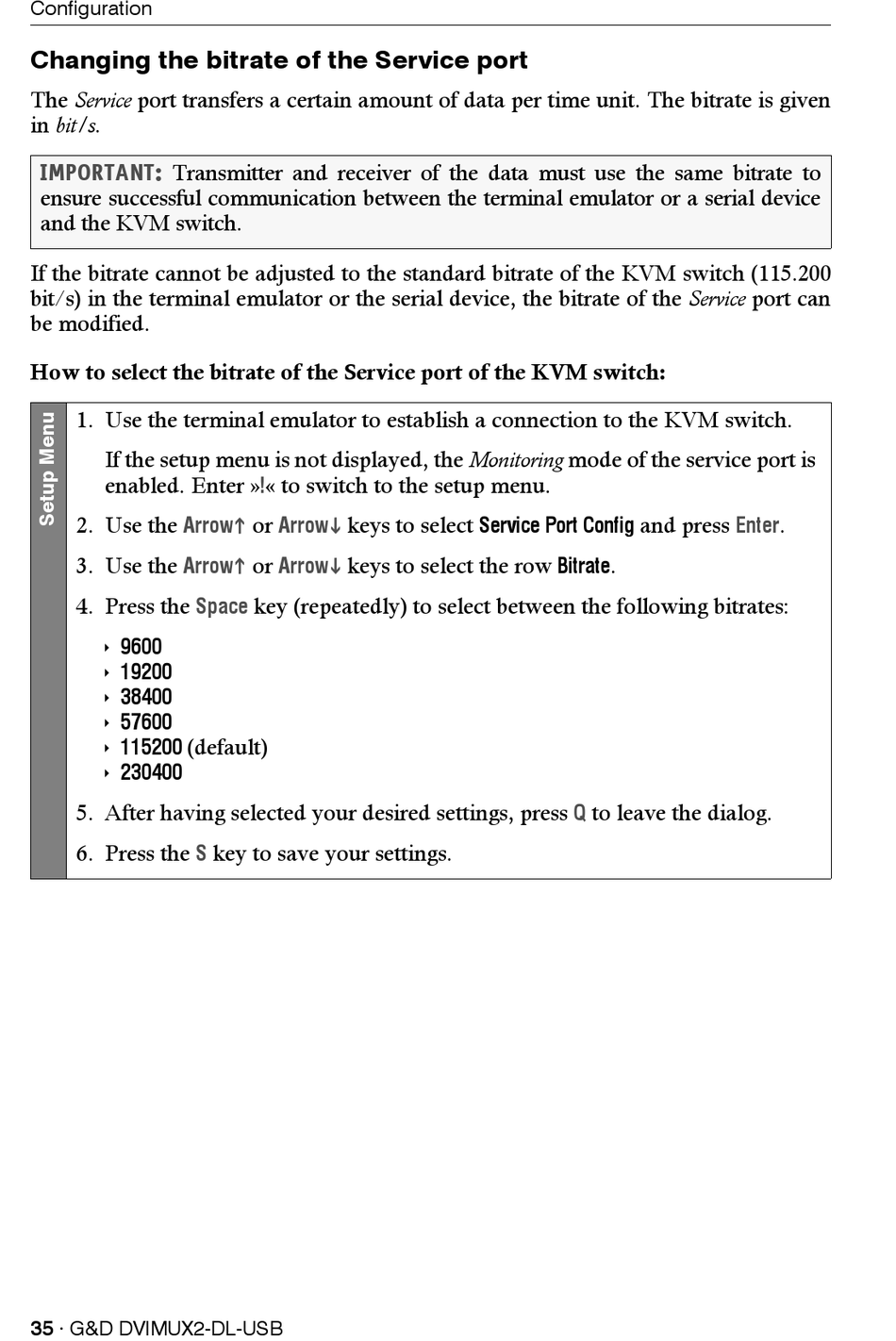

Configuration

Changing the bitrate of the Service port

The Service port transfers a certain amount of data per time unit. The bitrate is given
in bit/s.
IMPORTANT:
Transmitter and receiver of the data must use the same bitrate to
ensure successful communication between the terminal emulator or a serial device
and the KVM switch.
If the bitrate cannot be adjusted to the standard bitrate of the KVM switch (115.200
bit/s) in the terminal emulator or the serial device, the bitrate of the Service port can
be modified.
How to select the bitrate of the Service port of the KVM switch:
1. Use the terminal emulator to establish a connection to the KVM switch.
If the setup menu is not displayed, the Monitoring mode of the service port is
enabled. Enter »
2. Use the Arrow
3. Use the Arrow
4. Press the Space
 9600
 19200
 38400
 57600
 115200 (default)
 230400
5. After having selected your desired settings, press
6. Press the S
35 · G&D DVIMUX2-DL-USB
! « to switch to the setup menu.
or Arrow keys to select
or Arrow keys to select the row
key (repeatedly) to select between the following bitrates:
key to save your settings.
Service Port Config and press
Bitrate .
Q to leave the dialog.
Enter .
