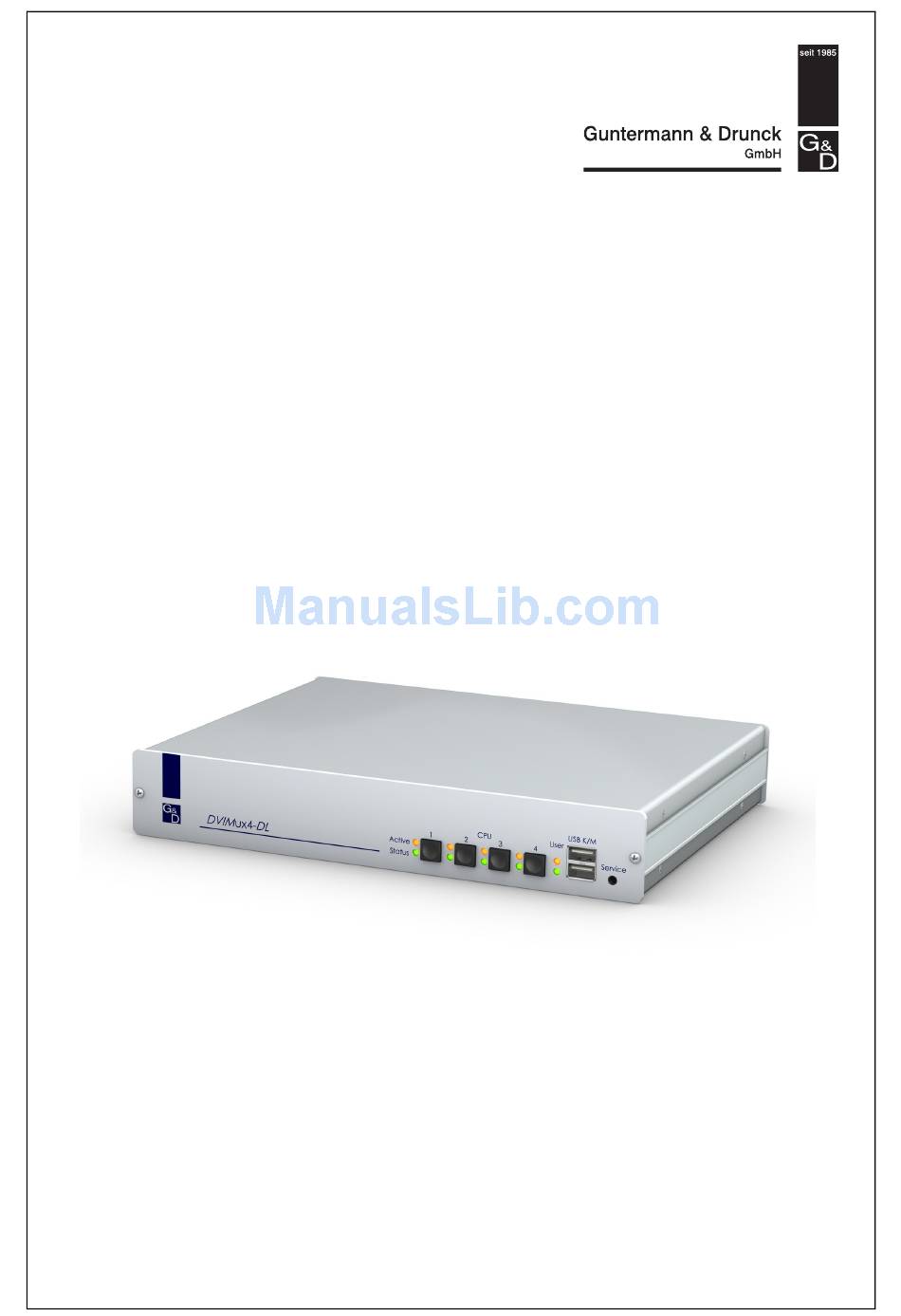

  • Page 1 G&D DVIMUX4-DL-PS/2 Installation and Operation...

  • Page 2: About This Manual

    © Guntermann & Drunck GmbH 2011. All rights reserved. Version 1.31 – 17/03/2011 Firmware: 1.5.4 Guntermann & Drunck GmbH Dortmunder Str. 4a 57234 Wilnsdorf Germany Phone +49 2739 8901-100 +49 2739 8901-120 http://www.GDsys.de sales@GDsys.de i · G&D DVIMUX4-DL-PS/2...

  • Page 3: Table Of Contents

    Contents Contents Safety instructions .................... 1 The »DVIMUX4-DL-PS/2« KVM switch ............2 Package contents ....................2 Installation ....................... 3 Overview of the interfaces .................. 3 Setting up the device ..................3 Connecting the console devices ................4 Connecting the computers .................. 5 Connecting the power supply ................

  • Page 4: Safety Instructions

    Operate this device with the provided G&D power pack or with the power pack listed in the manual. ! Operate the device only in designated areas. The devices are designed for indoor use. Avoid exposure to extreme cold, heat or humidity. 1 · G&D DVIMUX4-DL-PS/2...

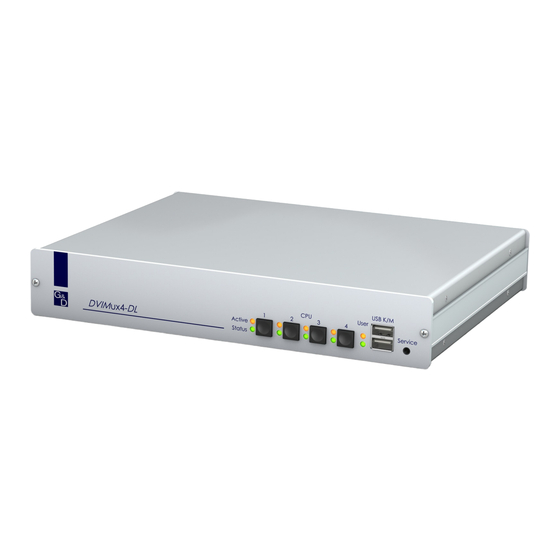

  • Page 5: The »Dvimux4-Dl-Ps/2« Kvm Switch

    The »DVIMUX4-DL-PS/2« KVM switch The »DVIMUX4-DL-PS/2« KVM switch The DVIMUX4-DL-PS/2 KVM switch enables you to operate up to four computers via one console. The console has to be supplied with a PS/2 keyboard, a PS/2 mouse and a digital and/or analog monitor. The computers connected to the KVM switch are operated at the installed console.

  • Page 6: Installation

    KVM switch and the computers which are to be connected. 3. Before installing the KVM switch, decide which button on the front panel of the device should be assigned to which computer. 3 · G&D DVIMUX4-DL-PS/2...

  • Page 7: Connecting The Console Devices

    (MC2), three (MC3), or four (MC4) monitors. The device provides up to four video inputs ( DVI-I CPU 1.x ) for each monitor you want to connect. If required, connect the other monitors to the Monitor x interfaces of the MC variant. G&D DVIMUX4-DL-PS/2 · 4...

  • Page 8: Connecting The Computers

    (DVI-D-DL-M/M). In case of an analog VGA output, use an analog video cable (VGA-M/DVI-A-M). NOTE: When deploying a multi-channel variant of the KVM switch, connect the computer’s second, third, and fourth video output to the ínter- DVI-I CPU 1.x faces. 5 · G&D DVIMUX4-DL-PS/2...

  • Page 9: Connecting The Power Supply

    Mouse Line In Keyb. Mouse Line In Keyb. Mouse Figure 4: Interface to connect the power supply Connect the power cable (PowerCable-2 Standard) to a power outlet and the Power: power socket of the KVM switch. G&D DVIMUX4-DL-PS/2 · 6...

  • Page 10: Further Information

    Such monitors provide a DVI and a VGA interface. Depending on the input signal, modern monitors usually switch the signal type inde- pendently. Otherwise, the switching from digital to analog signal processing (and vice versa) must take place manually by the user. 7 · G&D DVIMUX4-DL-PS/2...

  • Page 11: Initiation

    The setup mode of the KVM switch is active. Status The KVM switch is supplied with the necessary voltage. The KVM switch is turned off or is not supplied with the necessary voltage. If necessary, check if the power cable has been properly connected. G&D DVIMUX4-DL-PS/2 · 8...

  • Page 12: Switching Between The Computers

    IMPORTANT: The active step keys depend on the selected select keys. The following table lists the step keys depending on the active select keys. 9 · G&D DVIMUX4-DL-PS/2...

  • Page 13: Switching Via Serial Device

    If necessary, change the standard mode (see page 27) of the Service port to this mode if you want to switch channels via the serial device immediately after starting the KVM switch. An alternative to switching to the Switch mode is to enter the » « command during operation. G&D DVIMUX4-DL-PS/2 · 10...

  • Page 14: Switching Commands

    The KVM switch confirms the successful execution of a command and otherwise sends a meassage. Message Meaning switching to channel successful invalid channel number (out of range) channel switching has failed invalid command invalid value (out of range) RS232 mode enabled switch mode (RS232) enabled 11 · G&D DVIMUX4-DL-PS/2...

  • Page 15: Configuration

    Basic operation of the setup mode as well as the setup menu is explained in the fol- lowing pages. All functions that can be configured for the KVM switch are described in detail from page 16 ff. G&D DVIMUX4-DL-PS/2 · 12...

  • Page 16: Operating The Setup Mode

    How to perform a setup function:  After enabling the setup mode, press one of the setup keys described on the fol- lowing pages. How to end the setup mode without performing a function:  Press to end the setup mode. 13 · G&D DVIMUX4-DL-PS/2...

  • Page 17: Operating The Setup Menu

    If the KVM switch is started while the connection is being established, the G&D Firmware Update Utility will be displayed briefly before the setup menu opens. This special utility is solely used by the support team. G&D DVIMUX4-DL-PS/2 · 14...

  • Page 18: Show System Info

    (repeatedly). Space  A menu item that has a sub-dialogue available can be opened by pressing Enter NOTE: The following pages provide detailed information on how to change a cer- tain function. 15 · G&D DVIMUX4-DL-PS/2...

  • Page 19: Configuration Settings

    4. Press the key to save your settings. Depending on your settings, the active hotkey is converted into a double hotkey (or vice versa): Single Hotkey Double Hotkey Ctrl Ctrl+Shift Alt+Shift Alt Gr Alt Gr+Ctrl Win+Ctrl Shift Shift+Win G&D DVIMUX4-DL-PS/2 · 16...

  • Page 20: Changing The Single Hotkey

    (repeatedly) to enable a certain hotkey: Space Ctrl  enables Ctrl hotkey  enables Alt hotkey  enables Alt Gr hotkey Alt Gr  enables Win hotkey Shift  enables Shift hotkey 4. Press the key to save your settings. 17 · G&D DVIMUX4-DL-PS/2...

  • Page 21: Changing The Double Hotkey

     enables Ctrl+Shift double hotkey Ctrl+Shift Alt+Shift  enables Alt+Shift double hotkey  enables Alt Gr+Ctrl double hotkey Alt Gr+Ctrl Win+Ctrl  enables Win+Ctrl double hotkey  enables Shift+Win double hotkey Shift+Win 5. Press the key to save your settings. G&D DVIMUX4-DL-PS/2 · 18...

  • Page 22: Changing The Select Keys

     enables select keys NUM 1, [...], NUM 3, NUM 4 A ... D  enables select keys A, B, C, D  enables select keys F1, F2, F3, F4 F1 ... F4 4. Press the key to save your settings. 19 · G&D DVIMUX4-DL-PS/2...

  • Page 23: Disabling/Enabling The Hotkey Delay

    Arrow Arrow keys to select the Hotkey Delay entry. 3. Press the Space key (repeatedly) to disable/enable the hotkey delay:  enables hotkey delay  disables hotkey delay 4. Press the key to save your settings. G&D DVIMUX4-DL-PS/2 · 20...

  • Page 24: Resetting The Default Settings

    2. Use the keys to select the entry. Arrow Arrow Set System Defaults 3. Press Enter to reset the default settings. 4. Confirm the opening security query with Enter . Cancel the function by pressing the key. 21 · G&D DVIMUX4-DL-PS/2...

  • Page 25: Auto-Accessing The First Channel

    Select Channel via Front Button 3. Press the key (repeatedly) to choose one of the following options: Space  disables the switching via front button  enables the switching via front button 4. Press the key to save your settings. G&D DVIMUX4-DL-PS/2 · 22...

  • Page 26: (De)Activating The Switching Via Hotkeys

    Select Channel via Hotkey 3. Press the Space key (repeatedly) to choose one of the following options:  disables the switching via hotkeys  enables the switching via hotkeys 4. Press the key to save your settings. 23 · G&D DVIMUX4-DL-PS/2...

  • Page 27: (De)Activating The Switching Via Step Keys

    Arrow Arrow Select Channel via Step Key 3. Press the key (repeatedly) to choose between the following options: Space  step keys disabled [Step-Keys]  step keys enabled 4. Press the key to save your settings. G&D DVIMUX4-DL-PS/2 · 24...

  • Page 28: Changing The Bit Rate Of The Service Port

    3. Press the Space key (repeatedly) to select between the following bitrates:  serial data transmission with 115.200 bit/s 115200  serial data transmission with 9.600 bit/s 9600 4. Press the key to save your settings. 25 · G&D DVIMUX4-DL-PS/2...

  • Page 29: Changing The Standard Mode Of The Service Port

    (repeatedly) to select between the following options: Space  enabled Setup Menu mode when starting KVM extender Setup Menu  enabled Switch mode when starting KVM extender Switch 4. Press the key to save your settings. G&D DVIMUX4-DL-PS/2 · 26...

  • Page 30: Changing The Scan Code Set Of A Ps/2 Keyboard

     enables scan code set 3 for PS/2 keyboard inputs 4. Press the key to save your settings. 5. Restart the KVM switch. After the restart, the keyboard is initialised and the selected scan code set does apply. 27 · G&D DVIMUX4-DL-PS/2...

  • Page 31: Selecting The Ps/2 Keyboard Type

    PS/2 Keyboard Type 3. Press the Space key (repeatedly) to select the keyboard type: PixelPower Blue  PixelPower (blue) keyboard  SKIDATA1 keyboard SKIDATA1 Standard  standard PS/2 keyboard 4. Press the key to save your settings. G&D DVIMUX4-DL-PS/2 · 28...

  • Page 32: Enabling Or Resetting A Ps/2 Mouse

     enables the PS/2 mouse of a Linux PC  enables the PS/2 wheel mouse of a Linux PC  enables the PS/2 wheel mouse with additional keys of a Linux PC  resets the PS/2 mouse interface of a Windows PC 29 · G&D DVIMUX4-DL-PS/2...

  • Page 33: Order Numbers

    A210 0112 DVIMUX4-DL-MC4-USB A210 0111 DVIMUX4-DL-MC4-PS/2-RM A210 0113 DVIMUX4-DL-MC4-USB-RM CABLE SETS CABLE SETS A610 0117 CPU-DVID-DL-PL-2 A610 0125 CPU-DVID-DL-U-2 A610 0121 CPU-DVID-DL-PL-5 A610 0129 CPU-DVID-DL-U-5 A610 0133 CPU-DVIA-PL-2 A610 0088 CPU-DVIA-U-2 A610 0137 CPU-DVIA-PL-5 A610 0089 CPU-DVIA-U-5 G&D DVIMUX4-DL-PS/2 · 30...

  • Page 34: Technical Data

    (digital/analog) Audio Type: analog Bandwidth: 22 kHz Update Mode: local service socket Interface: 2,5-mm jack plug Power supply Type: internal power pack Connection: IEC plug (IEC-320 C14) Casing Material: anodised aluminium Conformity CE, RoHs 31 · G&D DVIMUX4-DL-PS/2...
  • Page 35 190mA@240VAC; 410mA@100VAC Power consumption: 25,5W@240VAC; 25,1W@100VAC Casing Dimensions (W × H × D): 270 × 88 × 210 mm Weight: approx. 2,1 kg Operational environ- Temperature: +5 to +45 °C ment Air humidity: < 80%, non-condensing G&D DVIMUX4-DL-PS/2 · 32...
  • Page 36 230mA@240VAC; 530mA@100VAC Power consumption: 32,4W@240VAC; 32,6W@100VAC Casing Dimensions (W × H × D): 270 × 132 × 210 mm Weight: approx. 2,5 kg Operational environ- Temperature: +5 to +40 °C ment Air humidity: < 80%, non-condensing 33 · G&D DVIMUX4-DL-PS/2...
  • Page 37 Notes G&D DVIMUX4-DL-PS/2 · 34...
  • Page 38 Notes 35 · G&D DVIMUX4-DL-PS/2...
  • Page 39 Notes G&D DVIMUX4-DL-PS/2 · 36...
  • Page 40 Guntermann & Drunck GmbH Dortmunder Str. 4a 57234 Wilnsdorf Germany Phone +49 2739 8901-100 +49 2739 8901-120 http://www.GDsys.de sales@GDsys.de...
