Ishida Astra II
Price Computing Scale With Printer
Operation Manual
Bench Model
Pole Model
PN 184270 Rev A
May 30, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra II Bench and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ISHIDA Astra II Bench

Summary of Contents for ISHIDA Astra II Bench

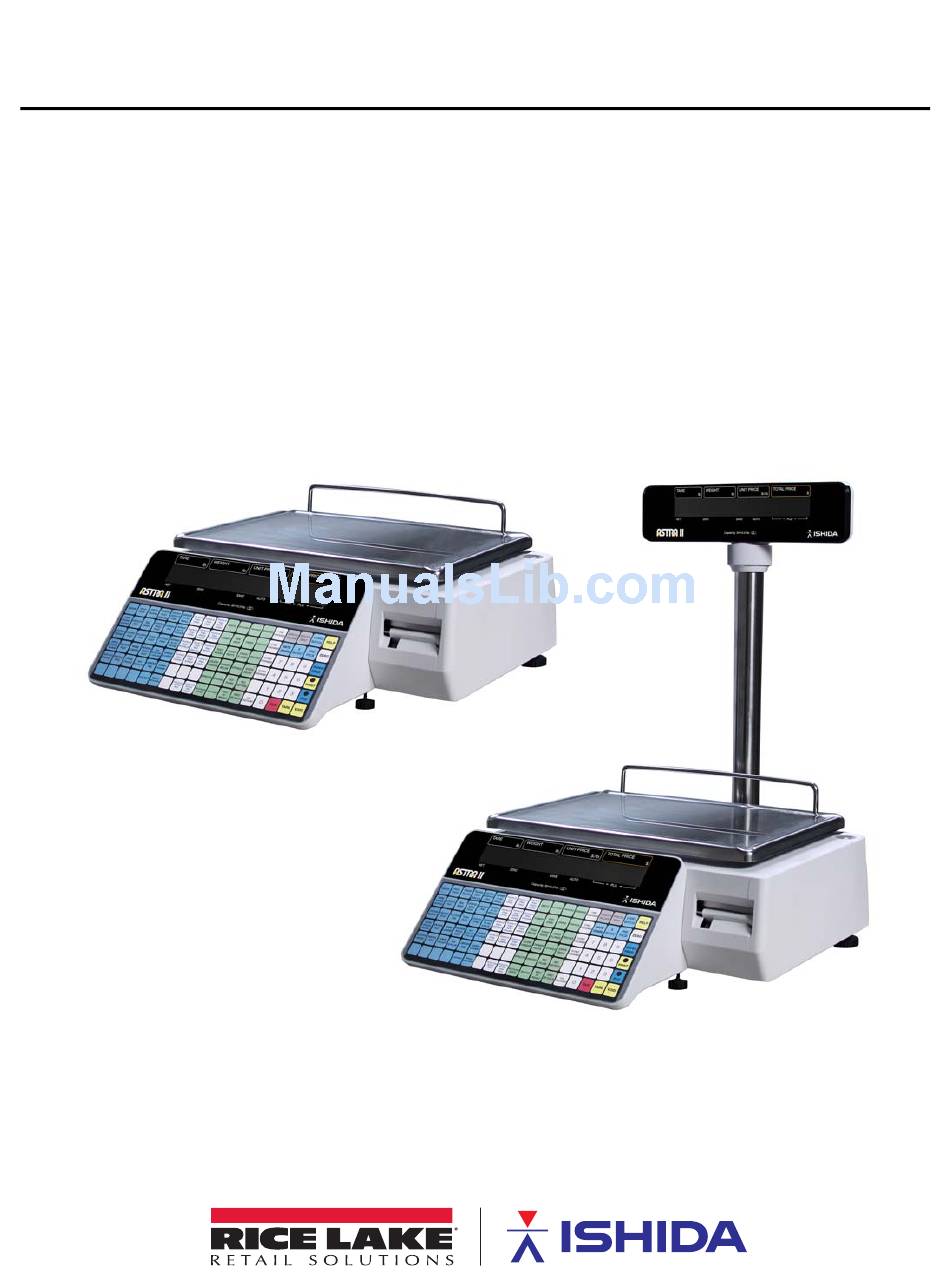

  • Page 1 Ishida Astra II Price Computing Scale With Printer Operation Manual Bench Model Pole Model PN 184270 Rev A May 30, 2018...
  • Page 2 An ISO 9001 registered company © Rice Lake Weighing Systems. All rights reserved. ® Rice Lake Weighing Systems is a registered trademark of Rice Lake Weighing Systems. All other brand or product names within this publication are trademarks or registered trademarks of their respective companies. All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication.

  • Page 3: Table Of Contents

    Contents Contents Introduction..............................1 Safety ..................1 Overview .
  • Page 4 Ishida Astra II Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Visit our website www.RiceLake.com...

  • Page 5: Introduction

    Introduction Introduction This manual is intended to remain with the Astra II price computing scale once installation and configuration are complete. Manuals are available for viewing and/or downloading from the Rice Lake Weighing Systems website at www.ricelake.com/manuals Warranty information can be found on the website at www.ricelake.com/warranties Safety Safety Signal Definitions:...

  • Page 6: Overview

    Ishida Astra II Overview Level gauge Weighing Platter Printer Power Switch Level adjustment leg Keyboard Figure 1-1. Astra II (Bench Model Pictured) Figure 1-2. Operation Panel Description Description Used to delete an entered numerical value. Used to call Menu Select display.

  • Page 7: Dimensions

    Introduction Dimensions 410 mm 16.1 in 370 mm 14.6 in 437 mm 17.2 in Astra II Figure 1-3. Dimensions for Bench Type 370 mm 14.6 in 500 mm 19.7 in Figure 1-4. Astra II Dimensions for Pole Type © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 8: Menu Navigation

    Ishida Astra II Menu Navigation To enter a mode, enter the corresponding number and press the key. To exit any mode, press the key. Mode Mode • Use the arrow keys to select a parameter within a menu. Down • Press the key to enter a parameter.

  • Page 9: Quick Setup

    Introduction Quick Setup 1.5.1 Set the Time and Date Use the following steps to set the time and date. 1. Remove the Speed Key Insert page if in use over the keys. 2. Enter then press . < C00 ADJUST > displays. 4000 Mode 3.

  • Page 10: Program Price Changes

    Ishida Astra II 1.5.3 Program Price Changes Use the following steps to change prices for existing items. 1. Remove the Speed Key Insert page if in use over the keys. 2. Enter then press . < P00 Program > displays.

  • Page 11: Set Ip Address Of The Scale

    Introduction 1.5.5 Set IP Address of the Scale Use the following steps to set IP address of the scale. 1. Remove the Speed Key Insert page if in use over the keys. 2. Enter then press . < B00 SETUP > displays. 6000 Mode 3.

  • Page 12: Setup Mode

    Ishida Astra II Setup Mode Enter and press the key to enter the Setup mode menu. To exit the Setup mode, press the key. 6000 Mode Mode The Setup Mode for this device includes the following parameters: • B01 - Machine No. (Comms) •...

  • Page 13: B01-Machine Number

    Setup Mode B01-Machine Number Configure Ethernet communication settings. Parameter Display Description Choices B01-02 B01-02-01 Enter the IP address of the scale. Enter the full 12-digit number ***.***.***.*** IP ADDR including leading zeros. Do not enter decimal points. B01-02-02 Subnet Mask Enter the subnet mask of the scale.

  • Page 14: B03-Password

    Ishida Astra II B03-Password Set a password and specify which open menu steps are protected. It is strongly recommended all setup menu items (40xx) be protected. Parameter Display Description Choices B03-01 PSWD B03-01 PSWD 000000 Specify the password that will be used for all the items listed in Table 2-4. Enter a...

  • Page 15: B05-Data Storage

    Setup Mode B05-Data Storage Configure settings to store total data for standard operation. Parameter Display Description Choices B05-01 B05-01-01 DAILY TOTAL Select if the Daily Total accumulator is enabled. 1: NON ADD TOTAL ADD. 2: ADD B05-01-02 WEEKLY TOTAL Select if the Weekly Total accumulator is enabled. B05-01-03 CUM.

  • Page 16: B08-Plu Initial Data

    Ishida Astra II B08-PLU Initial Data Specify the default values for any new PLU. When a new PLU is programmed the initial data automatically populates the fields. This speeds up PLU programming by setting the customer’s standard values. The initial data values can be changed as needed during PLU programming.
  • Page 17 Setup Mode Parameter Display Description Choices P01-06 P01-06-01 P/D PRN Enter 1: YES Enter the mode number. Press to select whether or not to DATE 2: NO print the pack date. Enter P01-06-02 PK TIME PRN 0: NO PRINT Enter the mode number. Press to select the desired pack 1: DESIGNATE time printing method.

  • Page 18: Adjustment Mode

    Ishida Astra II Adjustment Mode Enter and press to enter the Adjustment mode menu. To exit the Adjustment mode, press 4000 Mode Mode The Adjustment Mode for this device includes the following parameters: • C01 Date Time • C03 Display Check •...

  • Page 19: C05-Firmware Details

    Adjustment Mode C05-Firmware Details Displays the program number and version of the firmware in the following format: Example: B0785C B****# or C****#. B: Standard Program Code C: Option Program Code ****: Base Program four-digit number #: Version Mark To avoid confusion, some letters, such as I, O and Q, are not available for the version mark. Note Press to exit.

  • Page 20: Program Mode

    Ishida Astra II Program Mode Enter and press the key to enter the main menu in the Program mode. To exit the program mode, press the key. 9000 Mode Mode The Program Mode for this device includes the following parameters: •...

  • Page 21: P01-Plu Data

    Program Mode P01-PLU Data 1. From the program mode main menu screen, press the down arrow once to scroll to P01 PLU. 2. Press to display P01-00 PLU. Enter 3. Enter the PLU number. 4. Press . 13001-0000 ENT OR CLR displays. 5.
  • Page 22 Ishida Astra II Parameter Display Description Choices P01-06 P01-06-01 P/D PRN Enter 1: YES Enter the mode number. Press to select whether or not to print the DATE 2: NO packed date. Enter P01-06-02 PK TIME PRN 0: NO PRINT Enter the mode number.

  • Page 23: P02-Campaign

    Program Mode P02-Campaign Designate sales prices for selected PLUs for a specified time period. Parameter Display Description Choices P02-00 Enter Campaign number and press CAMPAIGN Message 13001-0000 New Data is displayed when a new campaign is created. Enter Press to continue or to quit.

  • Page 24: P04-Preset Key Registration

    Ishida Astra II P04-Preset Key Registration Assign presets (PLU number, tare weight, etc.) and function keys (price change, multiply, etc.) to the Astra II keyboard. Display Description Choices P04-01 XXX Enter the Key Flag No. and press to set the function. If the Key Flag No. requires a value, enter value; other- wise, enter 0.

  • Page 25: Default Preset Keys

    Program Mode Key Flag No. Preset Key Description Print Nutrition Print only nutrition Nutrition PRT Y/N Print only nutrition Yes/No N/A in USA Lower Preset Use to select the second PLU assigned to a preset key. Mode Key Mode key Target QTY Key to set the target quantity Target WGT...

  • Page 26: P06-Store Data

    Ishida Astra II P06-Store Data Program and set the store name and address that prints on the label. Display Description Choices P06-00 NO. XXXX Enter the store number and press to display the desired store data. 13001-0000 ENT OR CLR Enter If a non-registered item has been requested, the confirmation screen is displayed.

  • Page 27: P09-Cooking Time

    Program Mode P09-Cooking Time The cooking time calculation is not used in the USA. Display Description Choices P09-00 COOKING TIME Enter the Cooking Time number and press to display desired cooking time. If a non-registered item Enter Clear has been requested, the confirmation screen is displayed. Press to set up new data or to go back.

  • Page 28: P11-P13 Extra Message Data 1-3

    Ishida Astra II P11-P13 Extra Message Data 1-3 Program text messages such as ingredients, cooking instructions, country of origin, etc. in Extra Messages 1, 2 and 3. Text messages are linked to a PLU. A label designed to support messages must be used to print the text. The message field(s) must be large enough to print all the text.

  • Page 29: 4.12 P37-Check Label

    Program Mode 4.12 P37-Check Label Print labels to verify the PLU information and barcode scanning. Labels may be printed on the backing paper with no setting change required. Display Description Choices P37-01 START No. Enter Enter desired start number. Press P37-02 END No.

  • Page 30: Appendix

    Ishida Astra II Appendix Error Codes Note In some cases pressing the Up or Down arrow keys will toggle between the error number and the description. Error No. Error Solution Take Item Off Platter Remove all objects from the platter before switching on the power...
  • Page 31 Appendix Error No. Error Solution 347-000 Thermal Head Is Worn Out No effect on printing 347-001 Thermal Head Is Worn Out Effects printing on one side of the format. Change thermal head 347-002 Thermal Head Is Worn Out Not printing barcode correctly. Change thermal head Label Is Remaining Call Rice Lake Weighing Systems or a local dealer for assistance No USB Memory...

  • Page 32: Text Editing

    Ishida Astra II Text Editing Select font size for text displayed on screen. **See Used to finalize editing a text. Table 5-3 Exit editing a text. Specify a bold character font style. Begin a new line. Specify an italic character font style.

  • Page 33: Default Label Formats

    Appendix Default Label Formats Figure 5-1. Default Label Format 1 Figure 5-2. Default Label Format 2 Figure 5-3. Default Label Format 3 © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 34 Ishida Astra II Figure 5-4. Default Label Format 4 Figure 5-5. Default Label Format 5 Figure 5-6. Default Label Format 6 Visit our website www.RiceLake.com...
  • Page 35 Appendix Figure 5-7. Default Label Format 7 Figure 5-8. Default Label Format 8 © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 36: Specifications

    Ishida Astra II Specifications Items Descriptions Temperature: 23 to 104°F Use Conditions -5 to 40°C Humidity: 30 to 85%, non-condensing. Power supply / power consumption AC100 – 120V / 1.0A 0 to 30 x 0.01 lb Weighing capacity scale interval 0 to 15 x 0.005 kg...
  • Page 38 © Rice Lake Weighing Systems Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 PN 184270 Rev A May 30, 2018 www.ricelake.com...
