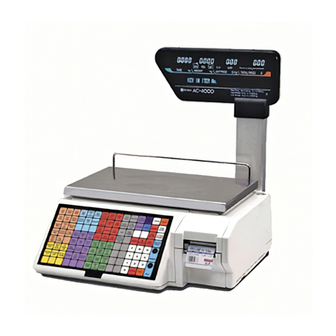

ISHIDA AC-4000 Operation & Setup Manual
Counter top scale printer
Hide thumbs
Also See for AC-4000:
- Service manual (113 pages) ,
- Operator's manual (37 pages) ,
- Operator's manual (3 pages)
Advertisement
Quick Links
Ishida AC-4000 / AC-4000B Receipt Operation & Setup
Overview
For Receipt Mode operation the AC-4000 accumulates a customer's transactions in memory rather
than print individual labels. When all purchases are completed the Operator prints a receipt listing all
items. Individual labels are not available. Payment tendering, tax calculations, and cash drawer
operation are not available.
This document contains operation and setup information.
Firmware
This document pertains to the following firmware.
C1448C (main) & B0402B (BIOS)
Operation
AC-4000 Receipt mode operation parameters are listed below.
NOTE: The AC-4000 must be set to normal manual print mode during receipt operation.
1. Normal operation procedure.
a. Recall a PLU by number and PLU key or by a preset key.
b. For a Weighed item place the product on the scale.
c. Press an OPERATOR preset key.
d. Display changes to Sub Total indicating the number of items and Total Price.
e. Repeat from step a to accumulate additional items.
f.
Press the TOTAL PRINT key to complete the transaction and issue the receipt.
2. Cancel an Operator's entire accumulated transaction.
a. Press the SUB TOTAL key to display the Sub Total information.
b. Press the OPERATOR key of the account to be canceled.
c. Press the CANCEL key to clear any accumulated items for that Operator.
d. The display returns to the normal operation mode.
3. Void the last item added to an Operator's accumulation.
a. Press the SUB TOTAL key to display the Sub Total information.
b. Press the OPERATOR key that accumulated the item to be removed.
c. Press the VOID key to remove the last item added.
d. The display returns to the normal operation mode.
4. Re-issue the previous receipt.
This must be done immediately after printing the previous receipt.
a. Press the SUB TOTAL key to display the Sub Total information.
b. Enter the Operator's Number (i.e. 12) then press the LABEL BATCH key.
c. A duplicate receipt is printed.
5. Recall an Operator's accumulated transactions.
Use this procedure if multiple Operators are using the scale simultaneously.
a. Press the SUB TOTAL key to display the Sub Total information.
b. Press the OPERATOR key to view the accumulated transitions Sub Total.
c. Press the TOTAL PRINT key to complete the transaction and issue the receipt or
press the SUB TOTAL key to continue adding more items.
Release 0, December 2007
1/4
AC-4000_Receipt_Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ISHIDA AC-4000
Summary of Contents for ISHIDA AC-4000
- Page 1 Operation AC-4000 Receipt mode operation parameters are listed below. NOTE: The AC-4000 must be set to normal manual print mode during receipt operation. 1. Normal operation procedure. a. Recall a PLU by number and PLU key or by a preset key.
- Page 2 Ishida AC-4000 / AC-4000B Receipt Operation & Setup Keyboard The following key functions are added for receipt operation. CANCEL: use to delete all accumulated items for an Operator. VOID: use to delete the last item accumulated by an Operator. SUB TOTAL: use to change between the normal display and the Sub Total display.
- Page 3 Ishida AC-4000 / AC-4000B Receipt Operation & Setup Receipt Printout Refer to the following sample receipt for details of the printed items. Receipt Header Date & Time Title Line PLU Description Fixed Price Item Weighed Item Weight PLU Number Original Price...
- Page 4 Ishida AC-4000 / AC-4000B Receipt Operation & Setup Configuration AC-4000 Receipt setup steps are listed below. 1. Sales Mode Set is added to Test Menu as step C08-03. 0 = No Accumulation 1 = Receipt (default) 2. Receipt settings are added to Print Setup step B01-01.
