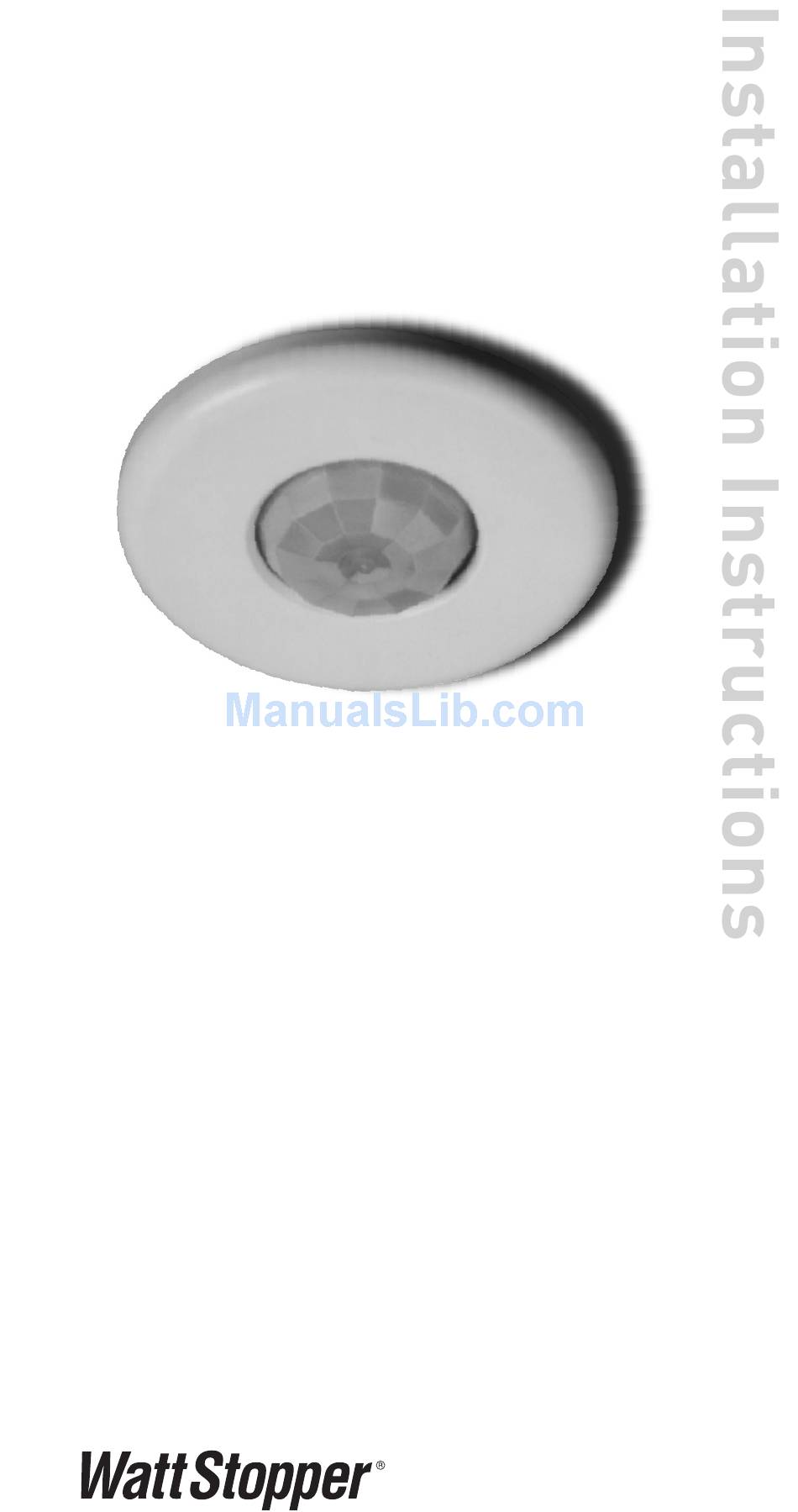

360° Passive Infrared • Low Voltage
SPECIFICATIONS
Voltage Supply .......................................20–30VDC (24VDC Typical)
Current Consumption ............................ @24VDC, 24mA Maximum
Isolated Relay Rating ..................................... 1A @24VDC or 24VAC
Operating Temperature ........................... 32° to 131°F (0° to 55°C)
Time Delay Adjustment .............................. 15 seconds–30 minutes
PIR Coverage
Model CI-200 .......................................................... up to 1200ft2
Model CI-200-1 ........................................................ up to 500ft2
Light Level Adjustment ...................................................... 1 – 190FC
Sensitivity Adjustment ....................................Minimum-Maximum
UL & CUL Listed
CI-200
version 2
Occupancy Sensor
Santa Clara, CA 95050
Advertisement
Table of Contents
Related Manuals for Watt Stopper CI-200
Summary of Contents for Watt Stopper CI-200
-
Page 1: Specifications
Operating Temperature ......32° to 131°F (0° to 55°C) Time Delay Adjustment ......15 seconds–30 minutes PIR Coverage Model CI-200 ............up to 1200ft2 Model CI-200-1 ............up to 500ft2 Light Level Adjustment ............1 – 190FC Sensitivity Adjustment ........Minimum-Maximum UL &... -
Page 2: Coverage Patterns
Coverage Patterns The CI-200 has a multi-cell, multi-tier Fresnel lens with a field of view of 360°. The sensor has two lens pattern options. The Extended Range Lens will cover up to 1200 sq ft when mounted from 8-12ft. The High Density/Reduced Range Lens will cover up to 500 sq ft when mounted at 8-12ft. -
Page 3: Installation
High Density up to 12ft radius (500 sq ft) 9ft radius (300 sq ft) The CI-200 sensor can be mounted at various heights. When you will be mounting at heights other than 12ft, be aware that as you decrease the mounting height, you will decrease the range and increase the sensitivity to smaller motions. - Page 4 Ceiling 2-3/4" to 3" hole (if using 3" mud-ring, cut to accomodate) Ceiling attachment ring (bend behind ceiling to secure) Rear housing Mask (optional) Mask secures cut for desired coverage to pins on cover Cover (with lens) Cut a hole in the ceiling tile—if using a: •...
-
Page 5: Wiring Directions
CAUTION TURN POWER OFF AT CIRCUIT BREAKER BEFORE WIRING SENSOR Watt Stopper B series power packs supply power for up to 5 CI-200s. When using more sensors than this, multiple power packs are required. For all configurations—connect the low voltage: •... -
Page 6: Sensor Adjustment
SENSOR ADJUSTMENT The sensor comes factory preset and ready for DIP Switch Control operation. If testing of operation is desired: for Time Delay and Sensitivity • Remove the sensor’s cover (twist). • Refer to the DIP switch settings chart below for switch configurations. -
Page 7: Troubleshooting
Service Mode To override all sensor functions, set DIP switch 6 to the OFF position. The red LED will come on and stay on for the duration of the override. TROUBLESHOOTING CAUTION USE PROPER SAFETY PRECAUTIONS WHEN WORKING WITH OR NEAR HIGH VOLTAGE Lights will not turn on: 1. -
Page 8: Ordering Information
3. Check that there is high voltage going into the power pack. 4. Try another power pack (if available). ORDERING INFORMATION Catalog# Description CI-200 20–30VDC Occupancy Sensor with Extended Range Lens (Standard) CI-200-1 20–30VDC Occupancy Sensor with High Density /Reduced Range Lens...
