TECH SUPPORT
The Watt Stopper, Inc.
2800 De La Cruz Blvd.
Santa Clara, CA 95050, USA
Tel: 1(800)879-8585 1(972)578-1699
Fax: 1(972)422-1311
www.wattstopper.com
Putting a Stop to Energy Waste
®
00335r1 5/99

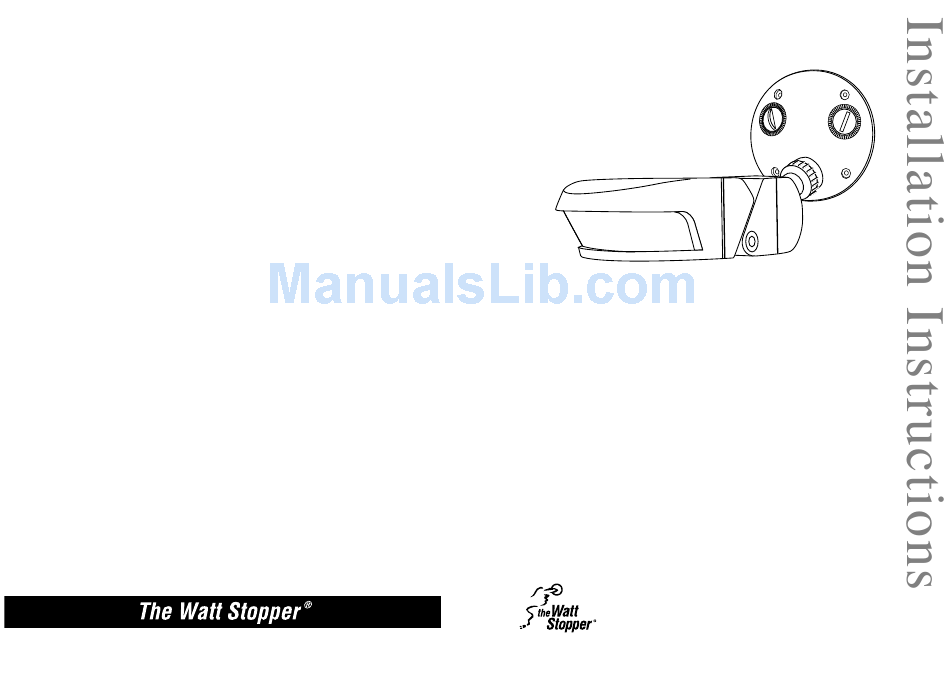

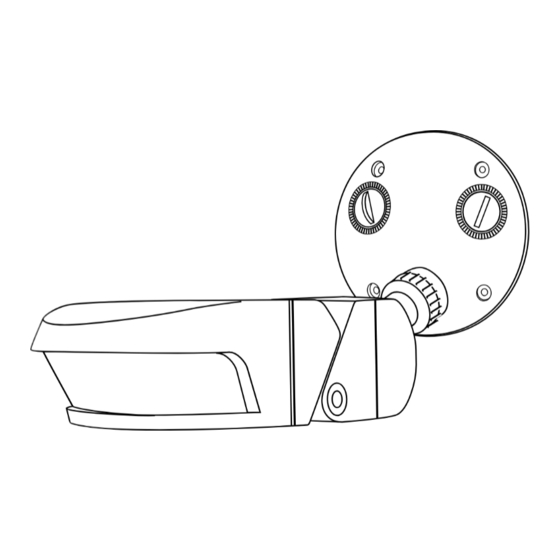

Outdoor 180° & 270° PIR
Motion Sensors
Model#s:
EW-100-120
EW-100-277
EW-105-120
EW-105-277
EW-200-120
EW-200-277
EW-205-120
EW-205-277
SPECIFICATIONS
Voltage:
EW-100-120, EW-105-120, EW-200-120, EW-205-120 . . . . . . . . 120VAC, 60Hz
EW-100-277, EW-105-277, EW-200-277, EW-205-277 . . . . . . . . 277VAC, 60Hz
Mountable Locations . . . . . . . . . . . . . . . . . . . . . . . . . Wall, ceiling or under eaves
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . -40° to 130°F (-40° to 55°C)
Lens Coverage:
EW-100 & EW-105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180°
EW-200 & EW-205. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270°
Load Ratings . . . . . . . . . . . . . . . . . . . . . . 0–1000W ballast or tungsten @120VAC
Motor Load: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/6 HP @120VAC
Current Consumption
Without Isolated Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 mA max.
With Isolated Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 mA max.
Time Delay Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12sec.–16min.
Light Level Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5FC–200FC
Isolated Relay on EW-100 & EW-200 (both -120 & -277 models)
Normally Open & Normally Closed contacts.
Isolated Relay Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A @ 30VAC/DC
UL 773A Raintight Rated
IEC-IP-55 Rated
Santa Clara, CA 95050
(800) 879-8585
0–1000W ballast @277VAC
1/3 HP @277VAC
U.S.Patents:
4,787,722
5,640,113
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Watt Stopper EW-100-120
Summary of Contents for Watt Stopper EW-100-120
- Page 1 SPECIFICATIONS Voltage: EW-100-120, EW-105-120, EW-200-120, EW-205-120 ..120VAC, 60Hz EW-100-277, EW-105-277, EW-200-277, EW-205-277 ..277VAC, 60Hz Mountable Locations ......Wall, ceiling or under eaves Operating Temperature .
-
Page 2: Table Of Contents
BOX CONTENTS easy coverage adjustment. • One (1) EW-100-120, EW-105-120, EW-200-120, EW-205-120, EW-100-277, EW-105-277, EW-200-277 or EW-205-277 • Accessory bag: - Cover plate for 4" round outdoor junction box, with two cover plate attachment hole plugs, cover plate gasket, cover plate screws &... -
Page 3: Motion Sensor Placement
MOTION SENSOR PLACEMENT Mounting and sensor positioning guidelines Careful consideration must be given to sensor placement. PIR sensors detect the difference between infrared energy in motion and the background space. To be detected, a person or Mount to flat, stable, vibration-free surface Avoid runoff;... -
Page 4: Wiring And Installation
WIRING AND INSTALLATION WIRING AND INSTALLATION (continued) ≠ ≠ Wire the sensor as shown below: CAUTION • BLACK wire from sensor to line voltage. TURN POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING SENSOR. • WHITE wire from sensor to Neutral. SENSOR MUST BE INSTALLED BY QUALIFIED PERSONNEL ONLY. -
Page 5: Testing After Installation
TESTING AFTER INSTALLATION 2. Adjust Light Level (continued): To facilitate coverage testing, the factory setting for Time Delay is 12 seconds, and the Making Changes Light Level is at Maximum. If you want the lights to turn on sooner—turn the dial toward the sun icon, as desired;... -
Page 6: Security Override
3. Have a person qualified to check high voltage connections verify that the sensor and lighting for a period of five years. There are no obligations or liabilities on the part of The Watt Stopper, Inc. are wired correctly (see Wiring and Installation, page 5 & 6).
