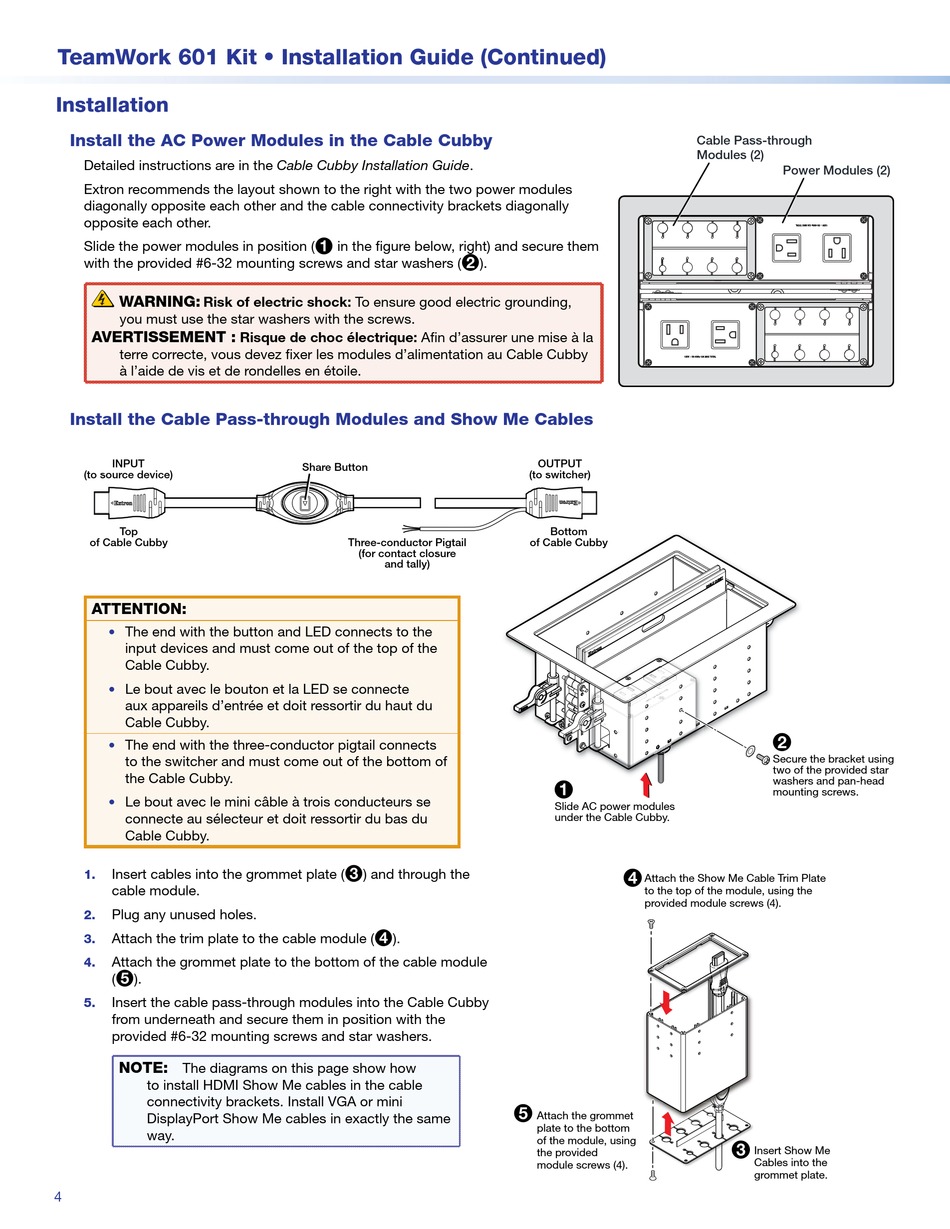

TeamWork 601 Kit • Installation Guide (Continued)
Installation
Install the AC Power Modules in the Cable Cubby
Detailed instructions are in the Cable Cubby Installation Guide.
Extron recommends the layout shown to the right with the two power modules
diagonally opposite each other and the cable connectivity brackets diagonally
opposite each other.
Slide the power modules in position (
with the provided #6-32 mounting screws and star washers (
WARNING:
Risk of electric shock: To ensure good electric grounding,
you must use the star washers with the screws.
AVERTISSEMENT :
terre correcte, vous devez fixer les modules d'alimentation au Cable Cubby
à l'aide de vis et de rondelles en étoile.
Install the Cable Pass-through Modules and Show Me Cables
INPUT
(to source device)
Top
of Cable Cubby
ATTENTION:
•
The end with the button and LED connects to the
input devices and must come out of the top of the
Cable Cubby.
•
Le bout avec le bouton et la LED se connecte
aux appareils d'entrée et doit ressortir du haut du
Cable Cubby.
•
The end with the three-conductor pigtail connects
to the switcher and must come out of the bottom of
the Cable Cubby.
•
Le bout avec le mini câble à trois conducteurs se
connecte au sélecteur et doit ressortir du bas du
Cable Cubby.
Insert cables into the grommet plate (
1.
cable module.
Plug any unused holes.
2.
Attach the trim plate to the cable module (
3.
Attach the grommet plate to the bottom of the cable module
4.
(
5
).
Insert the cable pass-through modules into the Cable Cubby
5.
from underneath and secure them in position with the
provided #6-32 mounting screws and star washers.
NOTE:
The diagrams on this page show how
to install HDMI Show Me cables in the cable
connectivity brackets. Install VGA or mini
DisplayPort Show Me cables in exactly the same
way.
4
1
in the figure below, right) and secure them
Risque de choc électrique: Afin d'assurer une mise à la
Share Button
Three-conductor Pigtail
(for contact closure
and tally)
3
) and through the
4
).
2
).
US Model
OUTPUT
(to switcher)
Bottom
of Cable Cubby
1
Slide AC power modules
under the Cable Cubby.
4
5
Attach the grommet
plate to the bottom
of the module, using
the provided
module screws (4).
Cable Pass-through
Modules (2)
Power Modules (2)
125V ~ 50-60Hz 12A MAX TOTAL
2
Secure the bracket using
two of the provided star
washers and pan-head
mounting screws.
Attach the Show Me Cable Trim Plate
to the top of the module, using the
provided module screws (4).
3
Insert Show Me
Cables into the
grommet plate.
