TeamWork 601 Kit • Installation Guide (Continued)
Connect the Switcher to the Display Device
Connect the switcher HDMI output to the HDMI input of the display device, using the provided cable. Do not use HDMI to DVI
adapters. If necessary, see the user guide for the display device.
Connect the Display to the System Controller
Connect the power cord from the display device to the power output receptacle of the system controller. TeamWork systems work
by controlling the AC power to the display.
Connect the System Controller to the Switcher

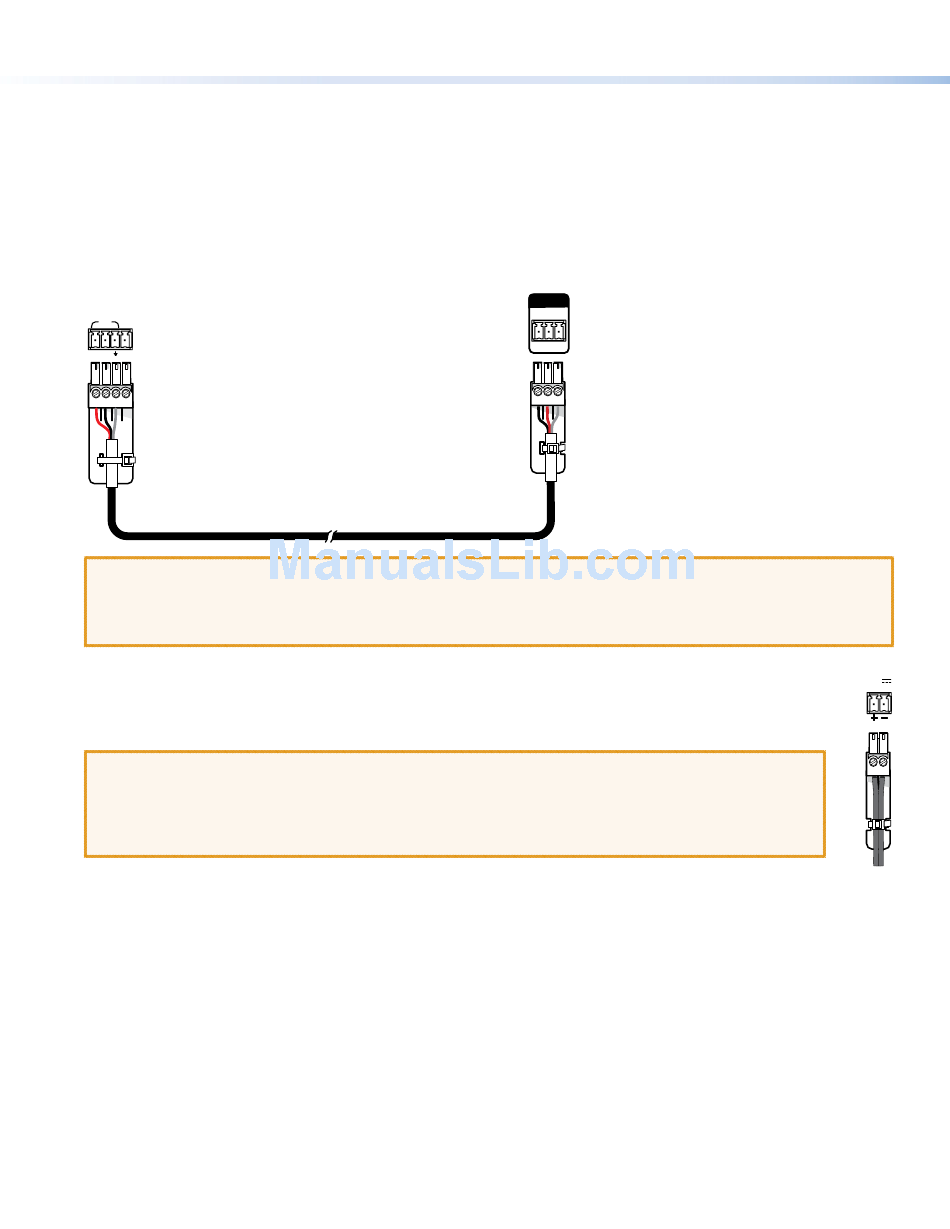

Connect the COM port of the system controller to the RS-232 port on the switcher with the provided control cable.
COM
System Controller
(IPL T PC1)
TX
RX
+5V
4-pole connector
(to system controller)
ATTENTION:
•
The two ends of the RS-232 control cable are different. One has a 4-pole connector, the other has a 3-pole connector.
•
Les deux terminaisons du câble de contrôle RS-232 sont différentes. L'une a un connecteur 4 pôles, l'autre a un
connecteur 3 pôles.
Connect Power
The system controller uses an internal power supply. Connect the power cord to a wall outlet.
The TeamWork 601 systems use a switcher with a 12 VDC, 1 A power supply, which is provided with the switcher.
ATTENTION:
•
Do not power on the MPS 601 switcher until you have read the Attention in the Power Supply section of the
MPS 601 User Guide.
•
Ne branchez pas le sélecteur MPA 601 avant d'avoir lu la mise en garde dans la section « sources
d'alimentation » du MPS 601 User Guide.
8
Switcher Control Cable
REMOTE
RS-232
Switcher
(MPS 601)
Tx Rx G
3-pole connector
(to switcher)
POWER
12V
0.4A MAX
