Web interface: Quick access to the MSX-E system
MSX-E1516

4.1.2 Menu item "I/O Watchdog"

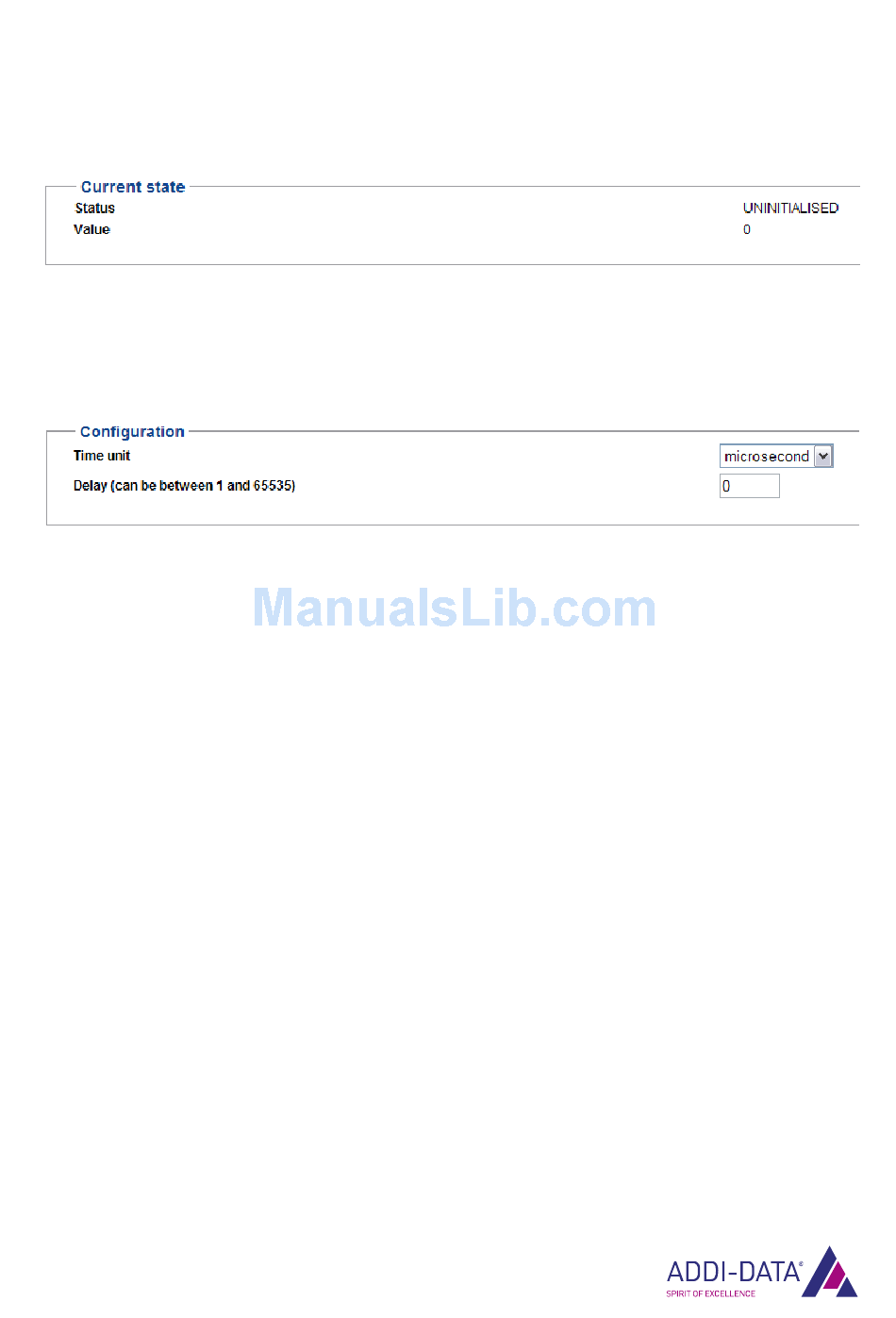

Fig. 4-6: I/O Watchdog: Current state

On this page, the current status of the watchdog for the digital inputs and outputs is displayed.

Fig. 4-7: I/O Watchdog: Configuration

You can configure the watchdog by defining the time unit and the watchdog time.
www.addi-data.com
20
